2.4.1 Admissible forces at controller
Attention!
Do not pushing, shocking load, or stressing the valve controller!
Do not deposit anything at valve controller!

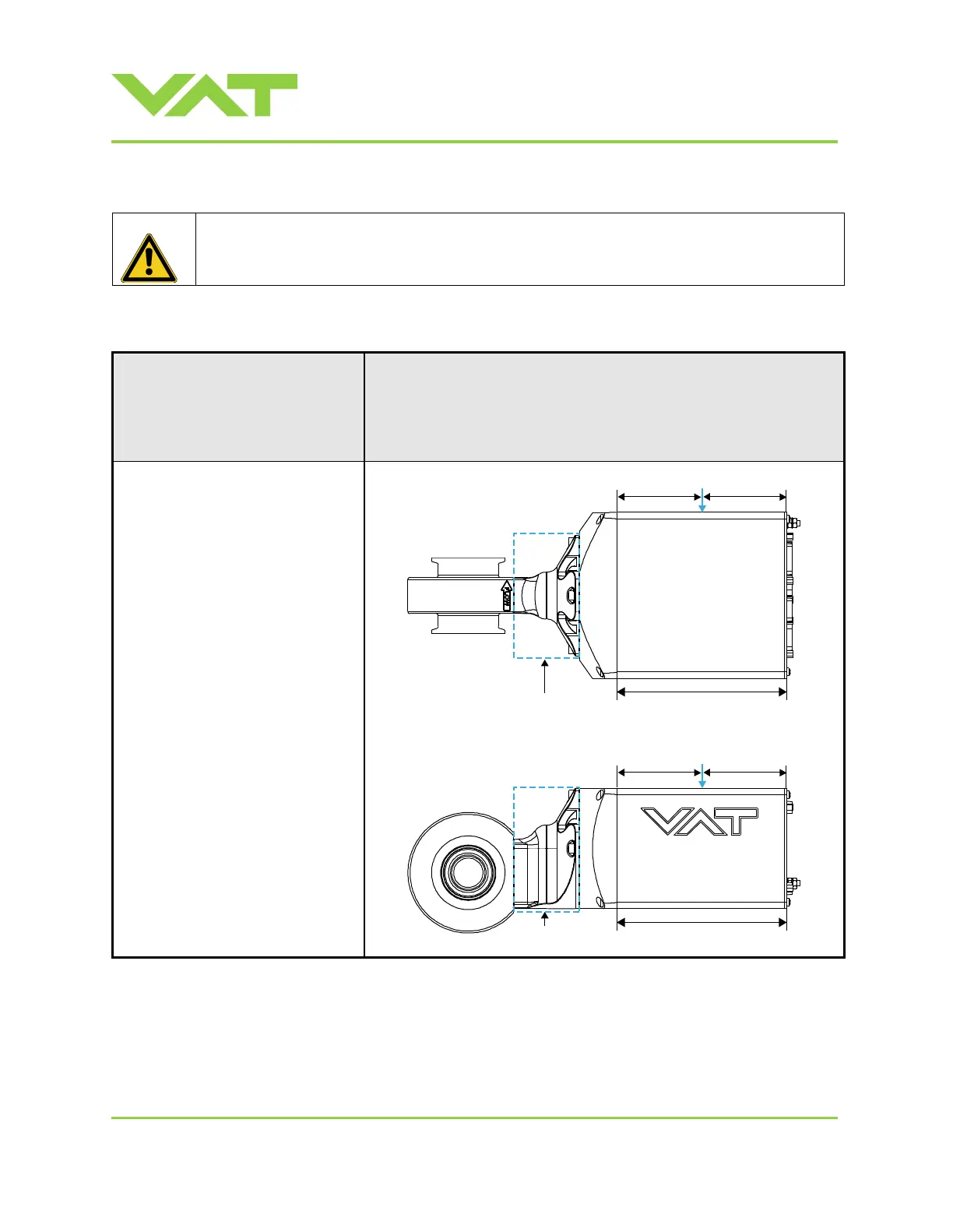

The admissible force at valve controller in regards to the pedestal is shown in table below. In case higher force is
applied, the pedestal could be permanently damaged!
Admissible force «F»
Overview
F = Force
a = middle of aluminium part of controller (b / 2)
c = pedestal
400 N
a a
F
bc
a a
F
bc
