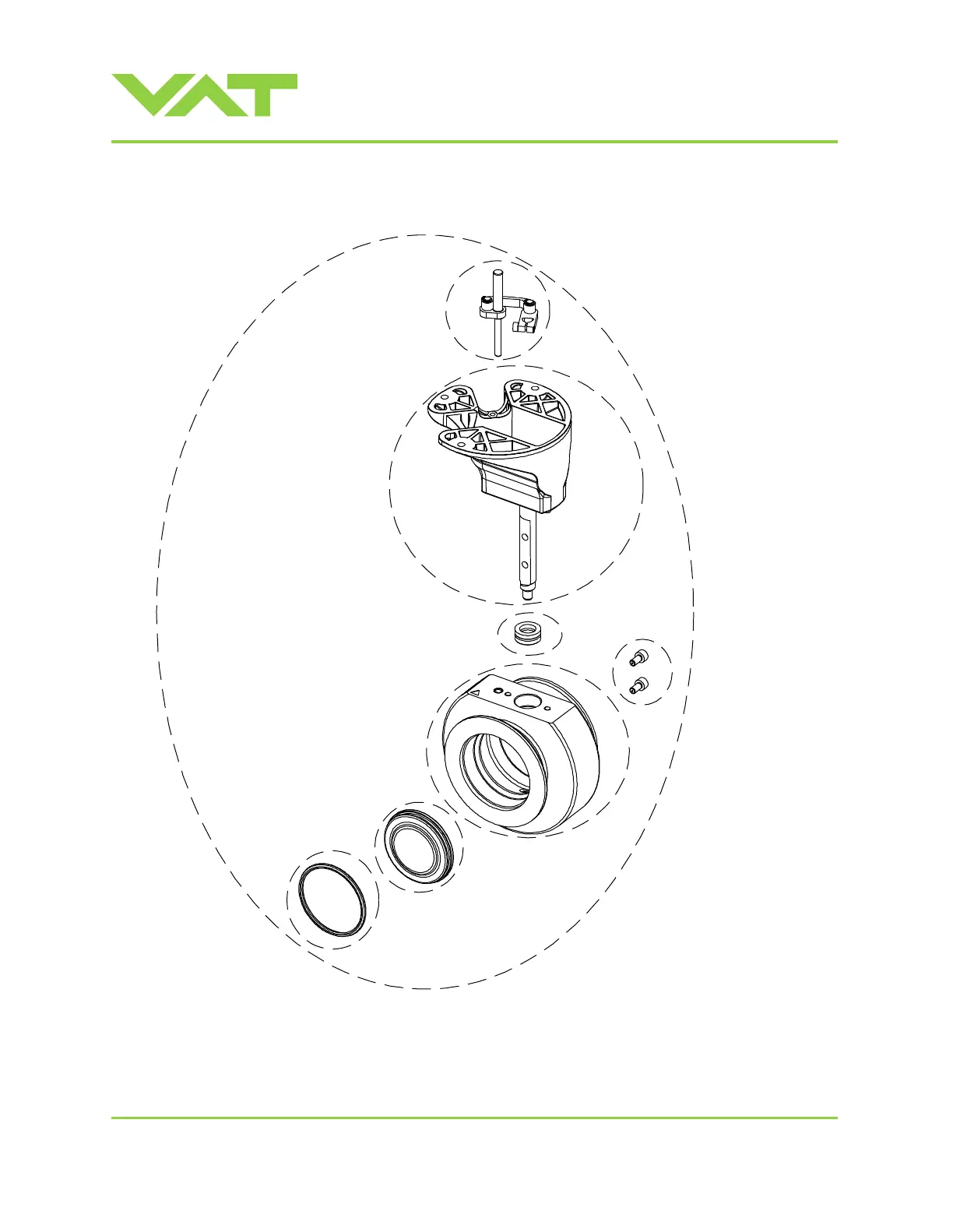

7 Drawing
1
2
3
4
5
6
7
8
1
Body with mechanism
5
Plate screws
2
Lever complete
6
Body complete
3
Adapter flange, rod with bearing
7
Plate
4
Rotary feedtrough seals
8
Plate O-ring
