2.6.5 LOGIC I/O
This interface allows for remote operation by means of a command set based on the DeviceNet protocol.
In addition there is a digital input and a digital output. Digital input may only be operated by a switch.
Active digital input has:
higher priority than DeviceNet commands
higher priority than Local commands
customer side
M8 male connector M8 female
connector
LOGIC I/O

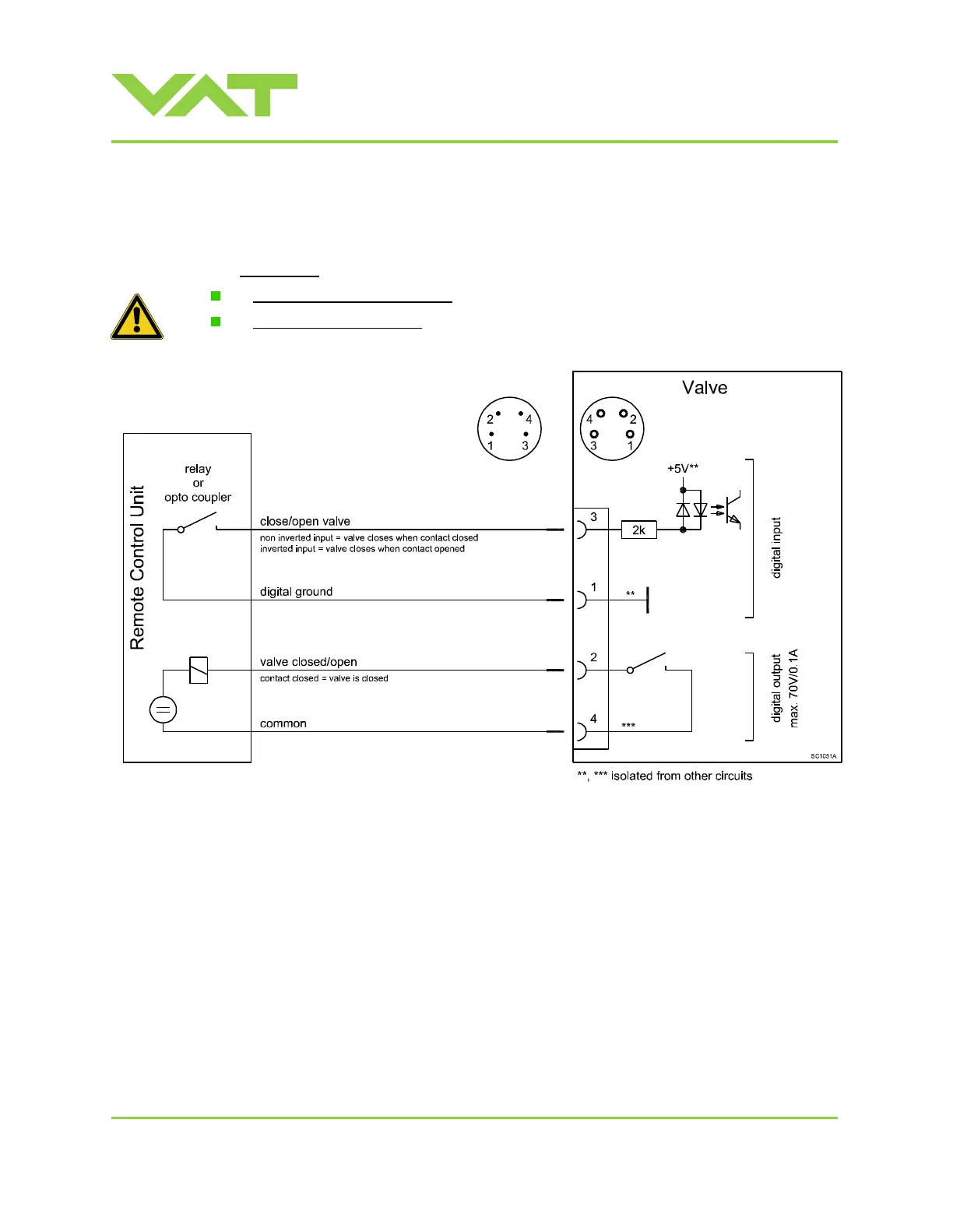

Note: Do not connect other pins than indicated in the schematics above! Example for connector: Type «Binder M8 male,
4-pole, shielded (recommended)» (99-3363-00-04).
