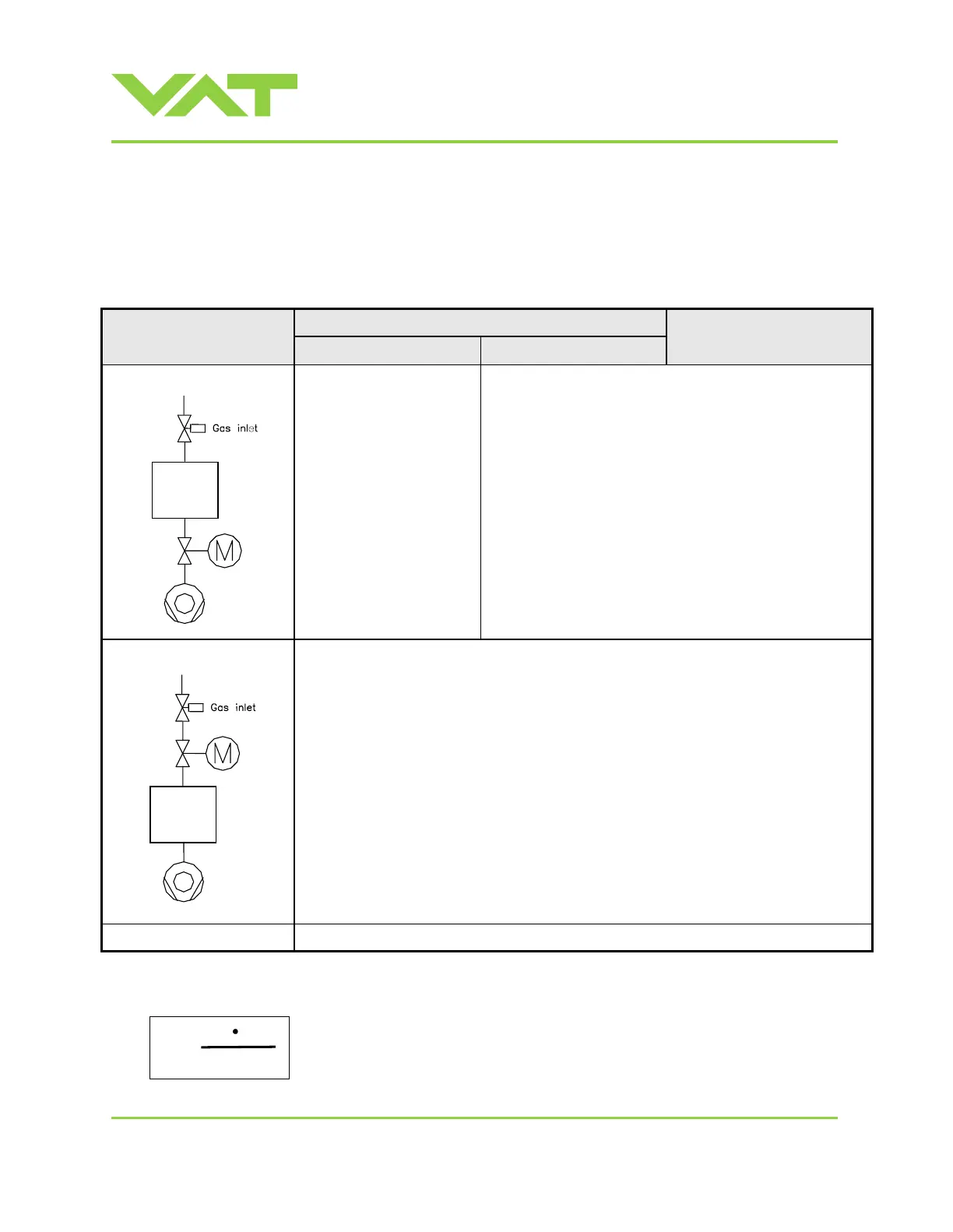

3.6.7 Pressure control configuration
Configuration of possible two pressure control algorithms.
Select the configuration what your application needs.
System Configuration
Constant gas flow available
Constant gas flow not
available
Tv*<= 500 sec
Tv* > 500 sec
Adaptive algorithm
(refer to chapter: 3.6.7.1
Adaptive algorithm)
Fixed algorithm
(refer to chapter: 3.6.7.2 Fixed algorithm)
Fixed algorithm
(refer to chapter: 3.6.7.2 Fixed algorithm)
Soft Pump
Soft Pump (refer to chapter: 3.6.7.3 Soft Pump)
Note:
Use the formula below to define the applicable pressure control algorithm.
P
SFS
CV
Tv =
q
L
q
L
gasflow for learn [mbarl/s]
p
SFS
sensor full scale pressure [mbar]
Tv* Vacuum time constant [sec]
CV Chamber Volume [l]
Upstream
Process
chamber
Control
valve
Pump
Downstream
Process
chamber
Control
valve
Pump
