Installation, Operating & Maintenance Instructions
Series 615 DN 40 (I.D. 1½”), DeviceNet
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
4.2 Factory default assemblies
Note: Factory default assemblies are: Input assembly 3 / Output assembly 8
4.3 Messaging Format
4.3.1 Explicit Messaging Connections

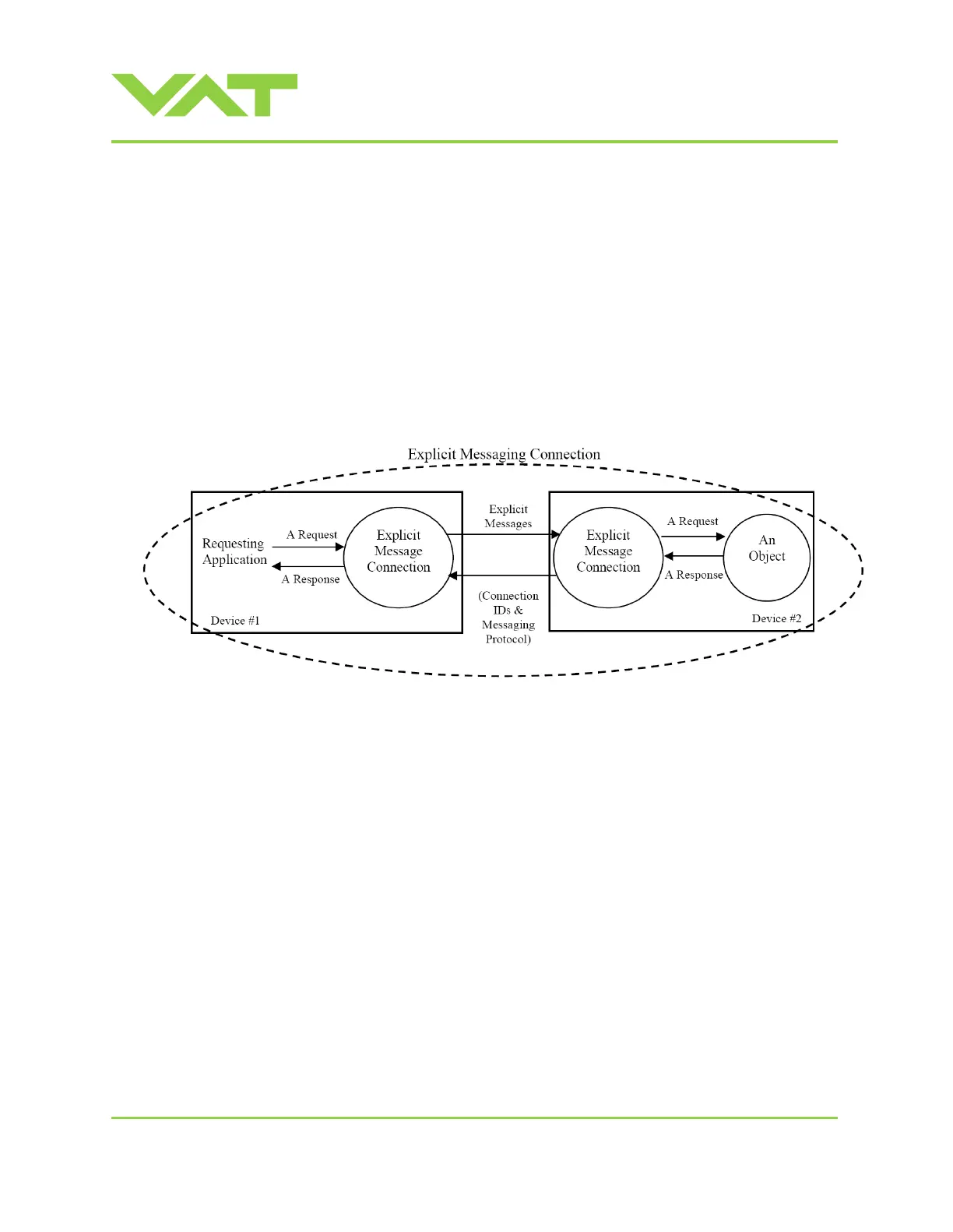

Explicit Messaging Connections, (see figure below) provide generic, multi-purpose communication paths between two
devices. An Explicit Message consists of a Connection ID and associated messaging protocol information.Explicit
messaging connections utilize a direct request / response format which allow you to access any attribute data. Explicit
messaging is typically used for the setup, configuration, and calibration of your device.
