Verathon Service Partner Manual: Repair & Replacement

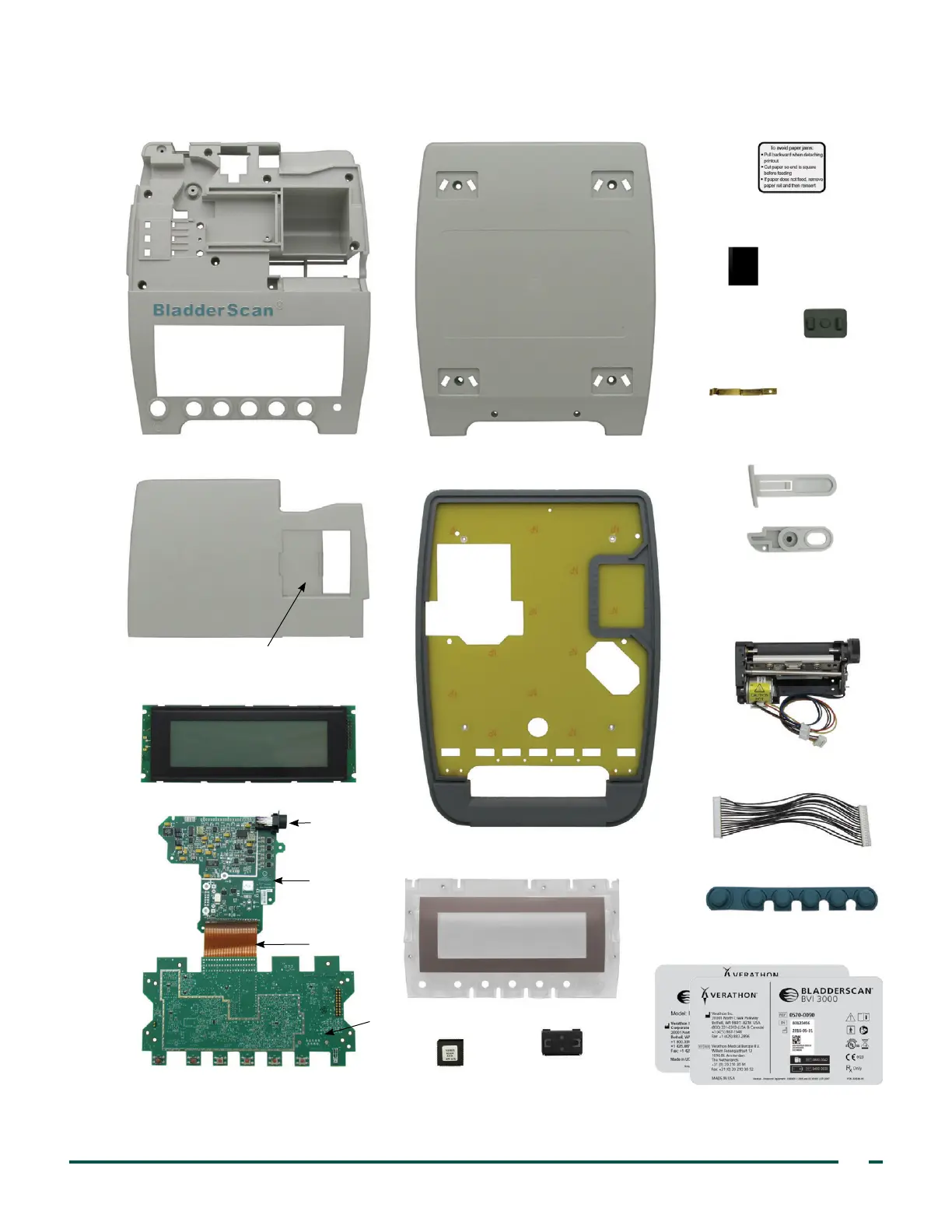

Figure 14. Components of the BVI3000 Console
Paper well label (0125‑0259)
Console labels
UDI‑compliant label kit 0800‑0550
Non‑UDI label (0125‑2530)
Overmold (0122‑0019)
Window (0122‑0018)
Bottom cover (0122‑0003)
Top cover (0122‑0042)
Hide (0122‑0008)
PCB assembly (0141‑0120) EPROM (0752‑0106)
Ferrite suppressor
(0180‑0140)
Analog PCB
Ribbon cable
Hirose connector
Printer door (0122‑0006)
Digital PCB
LCD (0230‑0008)
Console foot
(0122‑0014)
IR window
(0120‑0208)
Battery eject push rod
(0122‑0009)
Battery contact
(0130‑0075)
Battery eject rocker arm
(0122‑0010)
Printer (0570‑0092)
Printer cable (0600‑0131)
Buttons (0122‑0005)
