37
Verathon Service Partner Manual: Repair & Replacement

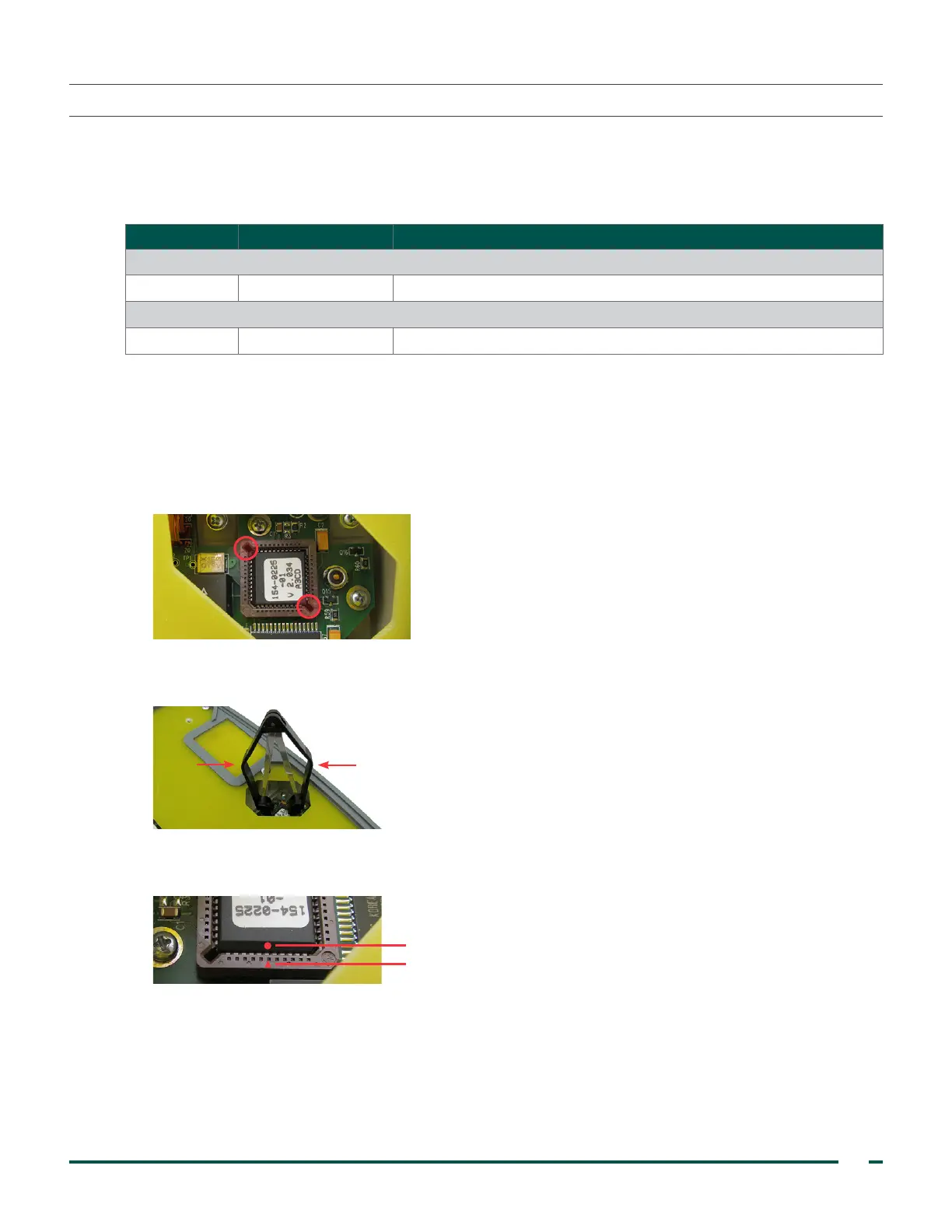

PROCEdURE 10. REPLACE THE EPROM
The erasable programmable read‑only memory (EPROM) is a memory chip that contains the BVI3000
software. PCBs with a removable EPROM are software version 2.100 or lower. PCBs with a built‑in EEPROM
are software version 3.000 or higher and would need to be sent to Verathon for any desired software
updates. This procedure documents how to replace the EPROM on a PCB with a removable EPROM.
*
QUANTITY PART # DESCRIPTION
Parts
1 07520106 BVI3000 EPROM
Tools
1 EPROM extractor
1. At minimum, complete Step1 through Step5 of the procedure Disassemble the Console on page32.
You may complete the entire procedure if you are performing additional service procedures on the console.
2. Align the console so that the EPROM is visible.
3. Using the EPROM extractor, place the hooked prongs through the holes on opposing corners of the
EPROM socket, and then ensure the extractor has been pushed to the bottom of the socket.
4. Squeeze the EPROM extractor until the EPROM pops out of the socket, and then lift the EPROM out of
the socket. This removes the original EPROM.
5. Using the arrow and dot orientation indicators, align the new EPROM on the PCB, and then push the
EPROM firmly into the socket.
Dot on EPROM
Arrow on EPROM socket
6. Complete any additional repairs to the console, and then reassemble the console according to the
procedure Reassemble the Console on page54.
When you have reassembled the console, ensure that you complete the procedure Program the Console
on page65.
* Software versions 2.034 and lower, 3.000, and 3.010 have a maximum calendar date of December 31, 2019. If the software is not
updated, the date on exam printouts may be inaccurate
