PROCEdURE 9. dISASSEMBLE THE CONSOLE
Use this procedure in order to disassemble the console to a stage from which you can complete any of
the replacement procedures included in this section. If replacing a part or component requires additional
disassembly, that information is detailed in the corresponding part‑replacement procedure.
QUANTITY PART # DESCRIPTION
Tools
1 Phillips bit
REMOVE THE BOTTOM COVER
1. Prior to beginning this procedure, ensure that you have put the console in configuration mode according
to the instructions in Enter Configuration Mode on page6.

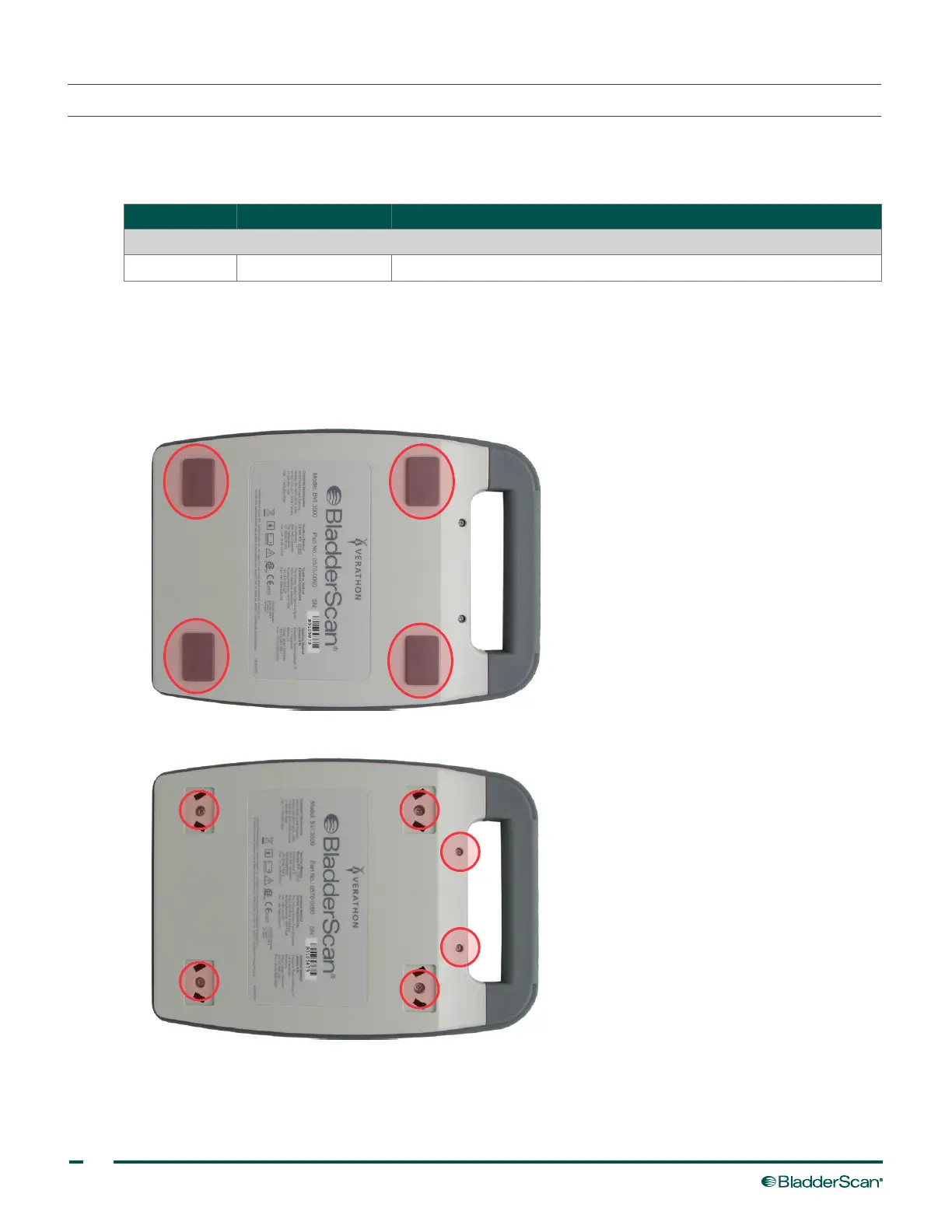

2. By beginning in a corner and then rolling the foot, remove the (4) rubber feet from the bottom of the console.
3. Using a Phillips bit, remove the (6) exposed screws.
4. Remove the bottom cover.
5. If the only service that you are completing is replacing the EPROM, skip to the procedure Replace the
EPROM on page37. Replacing the EPROM requires only partial disassembly.
