70

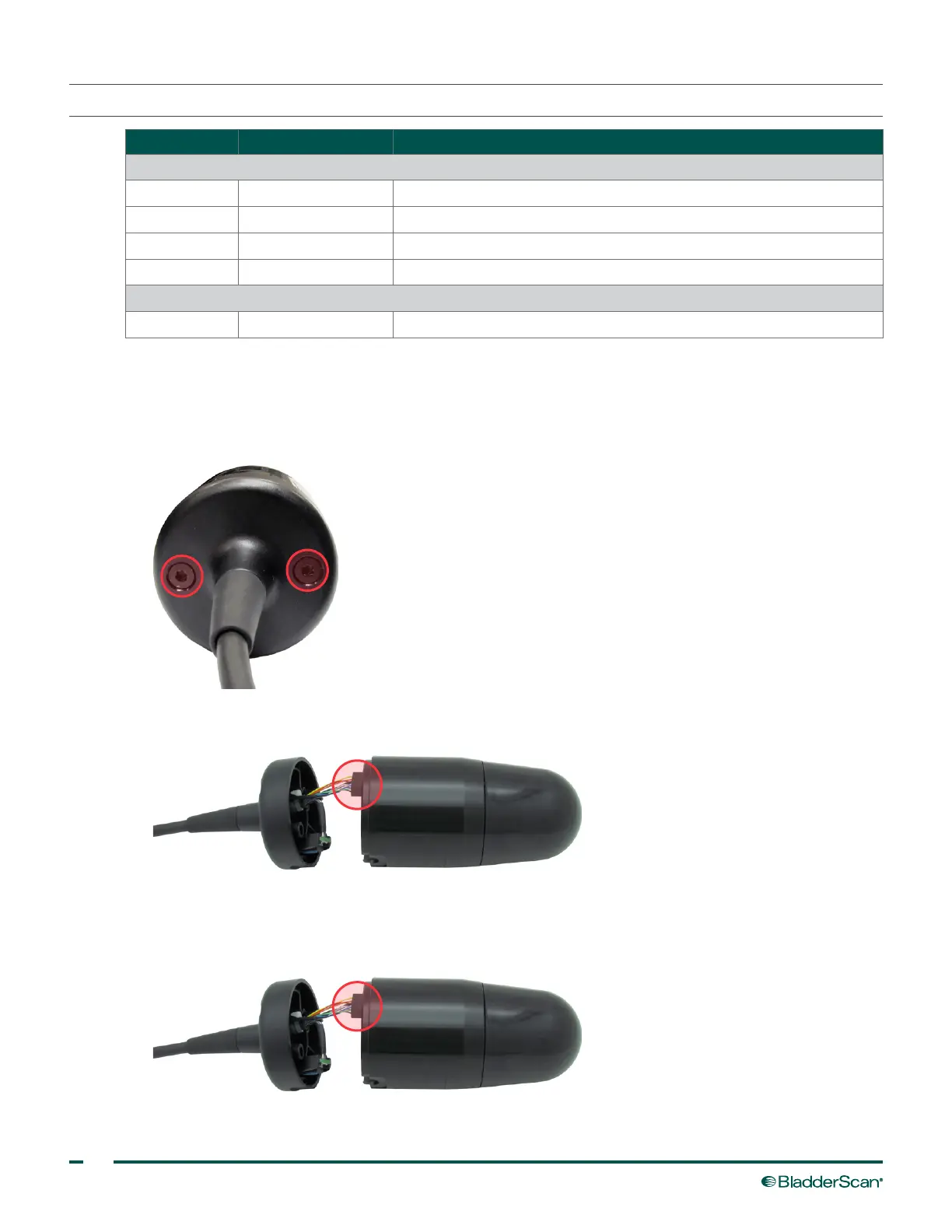

PROCEdURE 21. REPLACE THE PROBE TAILCONE
QUANTITY PART # DESCRIPTION
Parts
1 08000479 Tailcone Kit
2 0261‑0028
*
Tailcone screw (#8‑32, 1in, machine)
1 0510 0020
*
Switch overlay 01200658
1 01200658
*
Switch actuator
Tools
1 T15 star bit
*
Included in tailcone kit.
REMOVE THE TAILCONE
1. Using a T15 star bit, remove the two screws from the tailcone.
2. Disconnect the tailcone wire harness from the external bulkhead connector, and then remove the
tailcone.
ATTACH THE TAILCONE
3. Align the tailcone wire harness so that the green and yellow wires are closest to the outside of the probe,
and then connect the tailcone wire harness to the bulkhead connector.
