ATTACH NEW BATTERY CONTACTS
6. On the underside of the top cover, install (2) battery contact standoff nuts so that the smaller hole faces
the top cover.
7. Holding the hex standoff nuts in place, flip the top cover over.

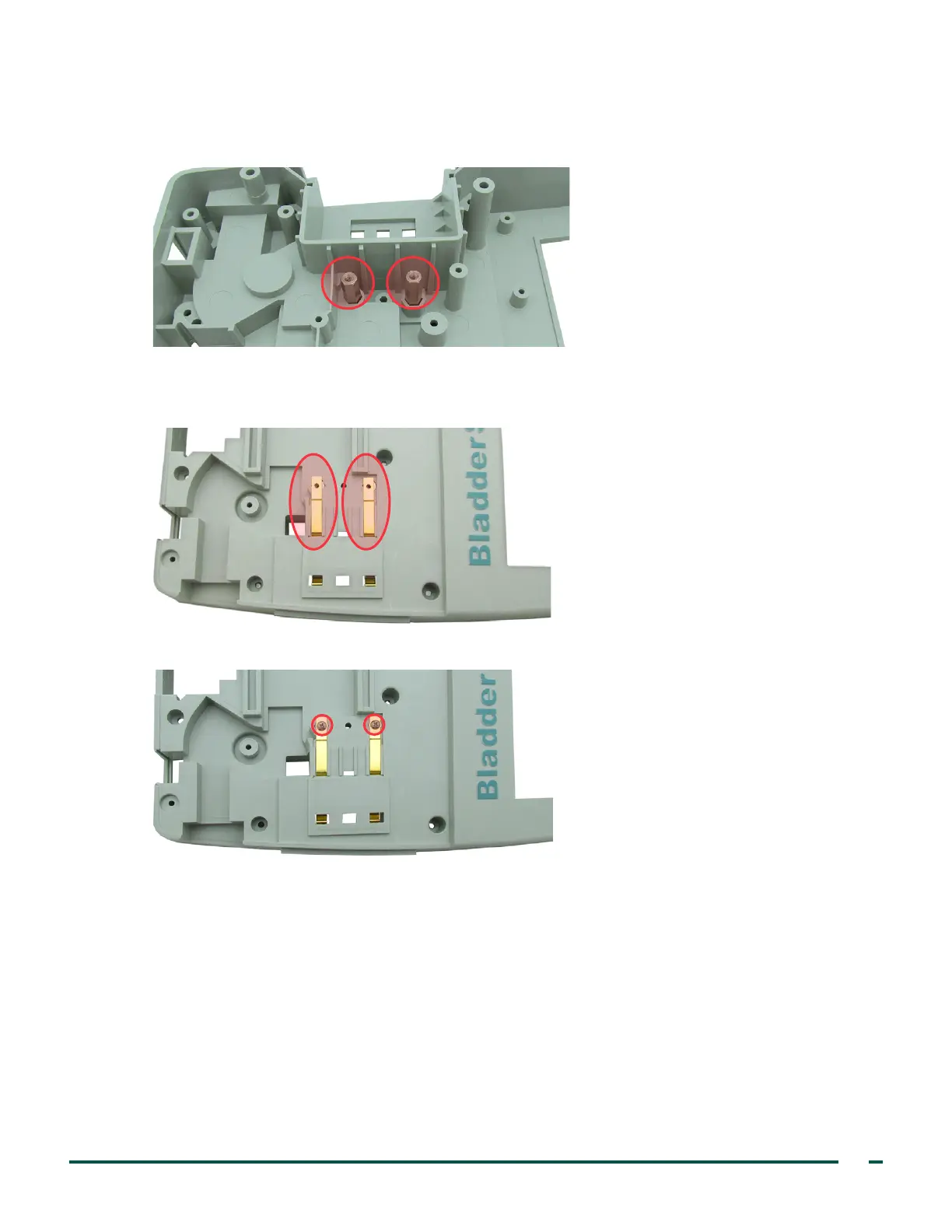

8. Place (2) battery case contacts into the battery well as shown in the following figure.
9. Using (2) battery contact screws (0261‑0007) and a Phillips bit, secure the battery case contacts in place.
10. Complete any additional repairs to the console, and then reassemble the console according the
procedure Reassemble the Console on page54.
