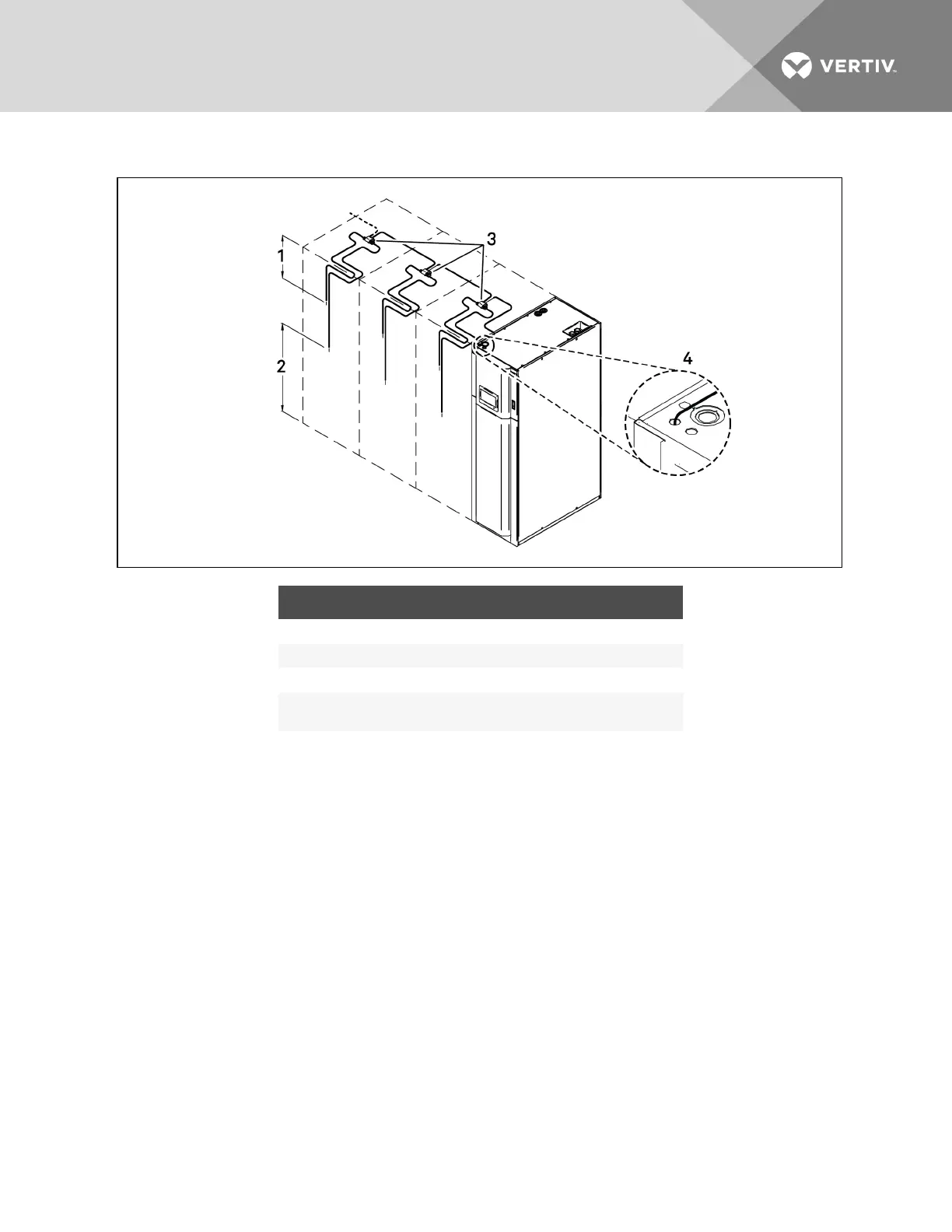

Figure 9.10 Rack sensor placement for 600-mm (24-in.) models
ITEM DESCRIPTION
1 First probe, 12in. (305mm) from top
2 Second probe, in approximate center of rack and in front of the equipment
3 2T sensors with labels visible
4
Cable-connection top entry point
(use a field-supplied and field-installed protective bushing)
Vertiv | Liebert CRV Installer/User Guide | 101
