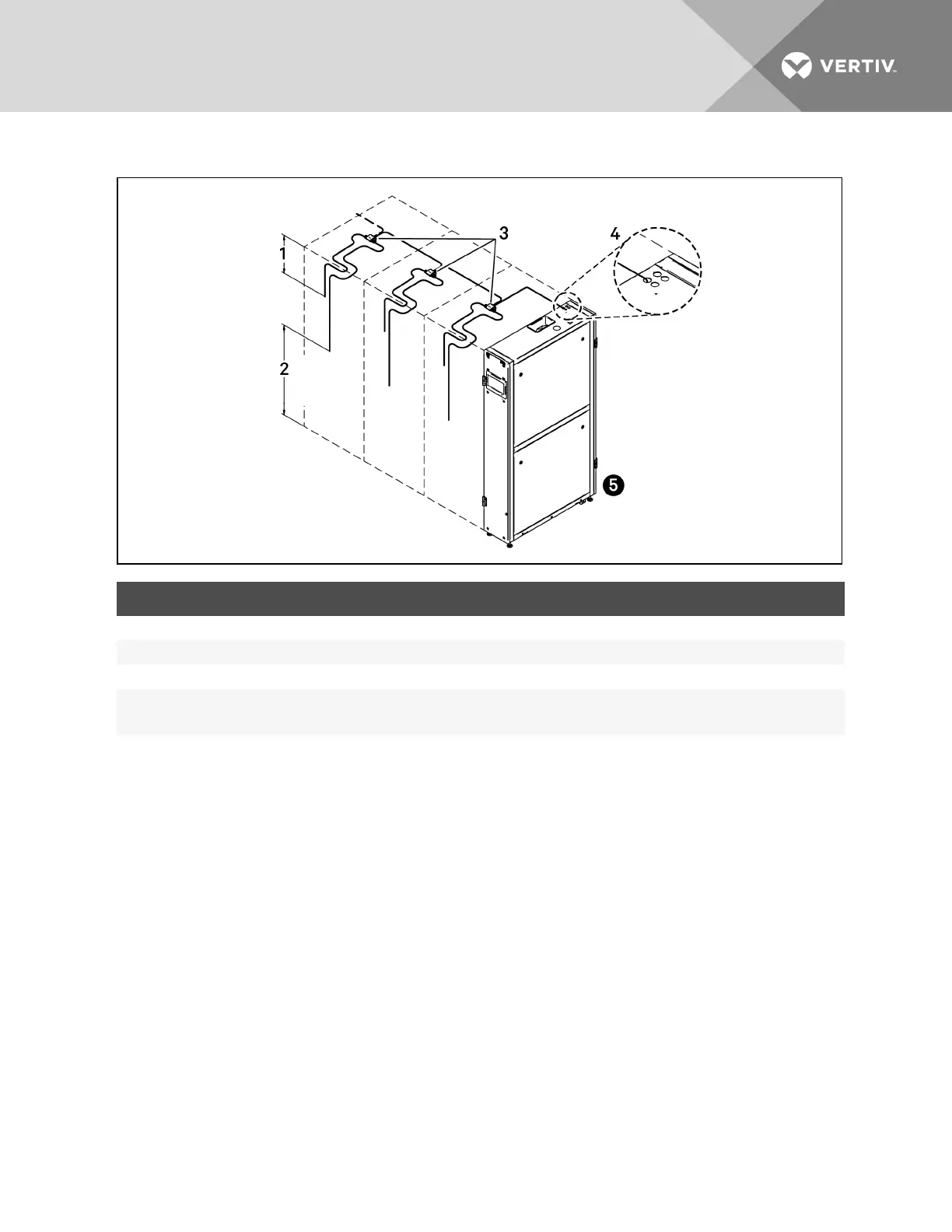

Figure 9.11 Rack sensor placement for 300-mm (12-in.) models
ITEM DESCRIPTION
1 First probe, 12in. (305mm) from top
2 Second probe, in approximate center of rack and in front of the equipment
3 2T sensors with labels visible
4
Cable-connection top entry point.
Use a field-supplied and field-installed protective bushing.
5
Cable-connect bottom entry, refer to Preparing for sensor-cabling of CRV300-mm(12-in.) units—CR019 and CR032 on page96, and use a
field-supplied and field-installed protective bushing.
