600mm (24in.) CHILLED WATER MODELS
Form No.: DPN001040_REV4

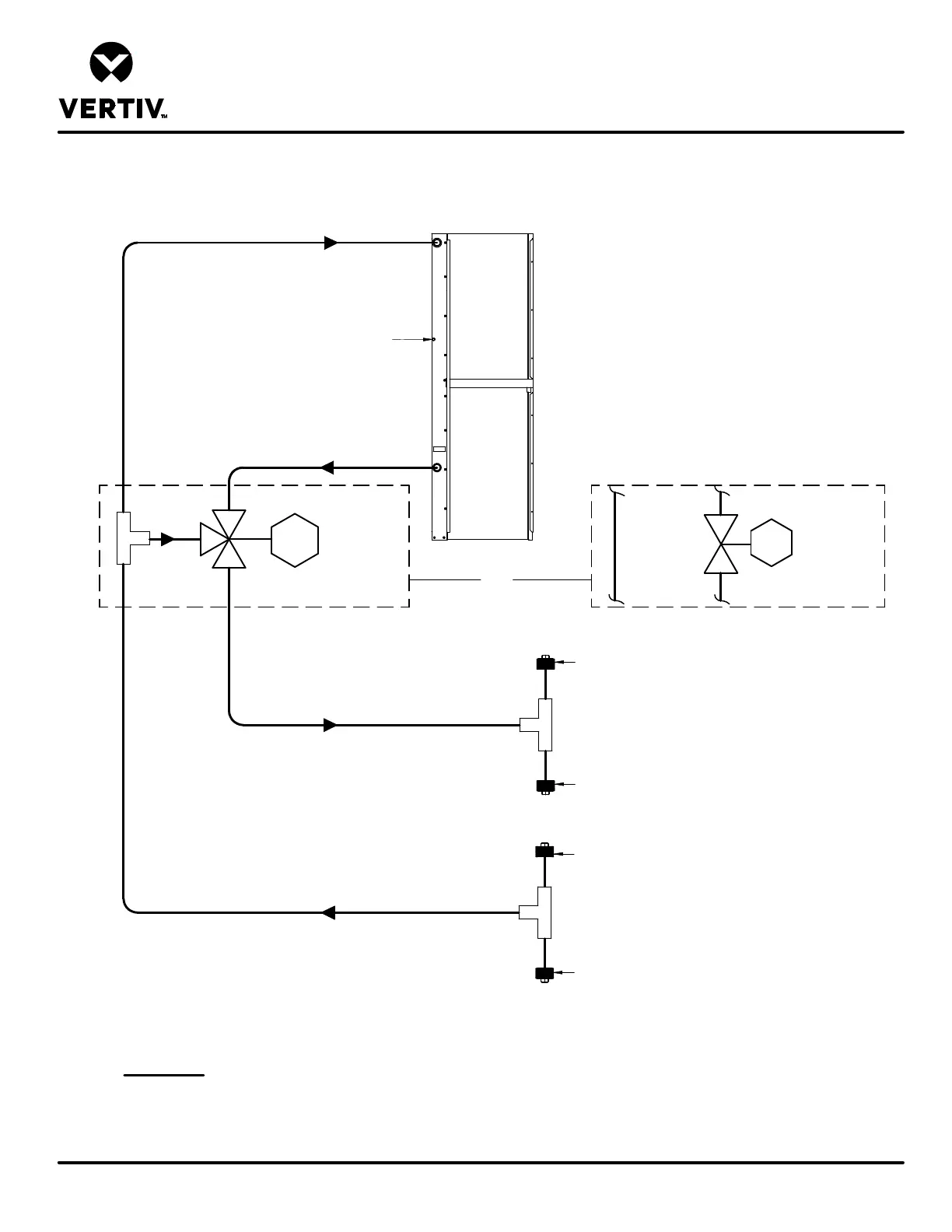

GENERAL ARRANGEMENT DIAGRAM
LIEBERT CRV
B
AB
A
3-Way Motorized Ball
Valve Configuration
Plug Pipe
Chilled Water Return
(Top of Unit Connection)
Plug Pipe
Chilled Water Return
(Bottom of Unit Connection)
Plug Pipe
Chilled Water Supply
(Bottom of Unit Connection)
Plug Pipe
Chilled Water Supply
(Top of Unit Connection)
Air Bleed Valve
Chilled
Water
Coil
2-Way Motorized Ball
Valve Configuration
A
AB
OR
FACTORY PIPING
NOTE: SCHEMATIC REPRESENTATION SHOWN. DO NOT USE FOR SPECIFIC CONNECTION LOCATIONS.
