300mm (12in.) CHILLED WATER MODELS
Form No.: DPN001040_REV4

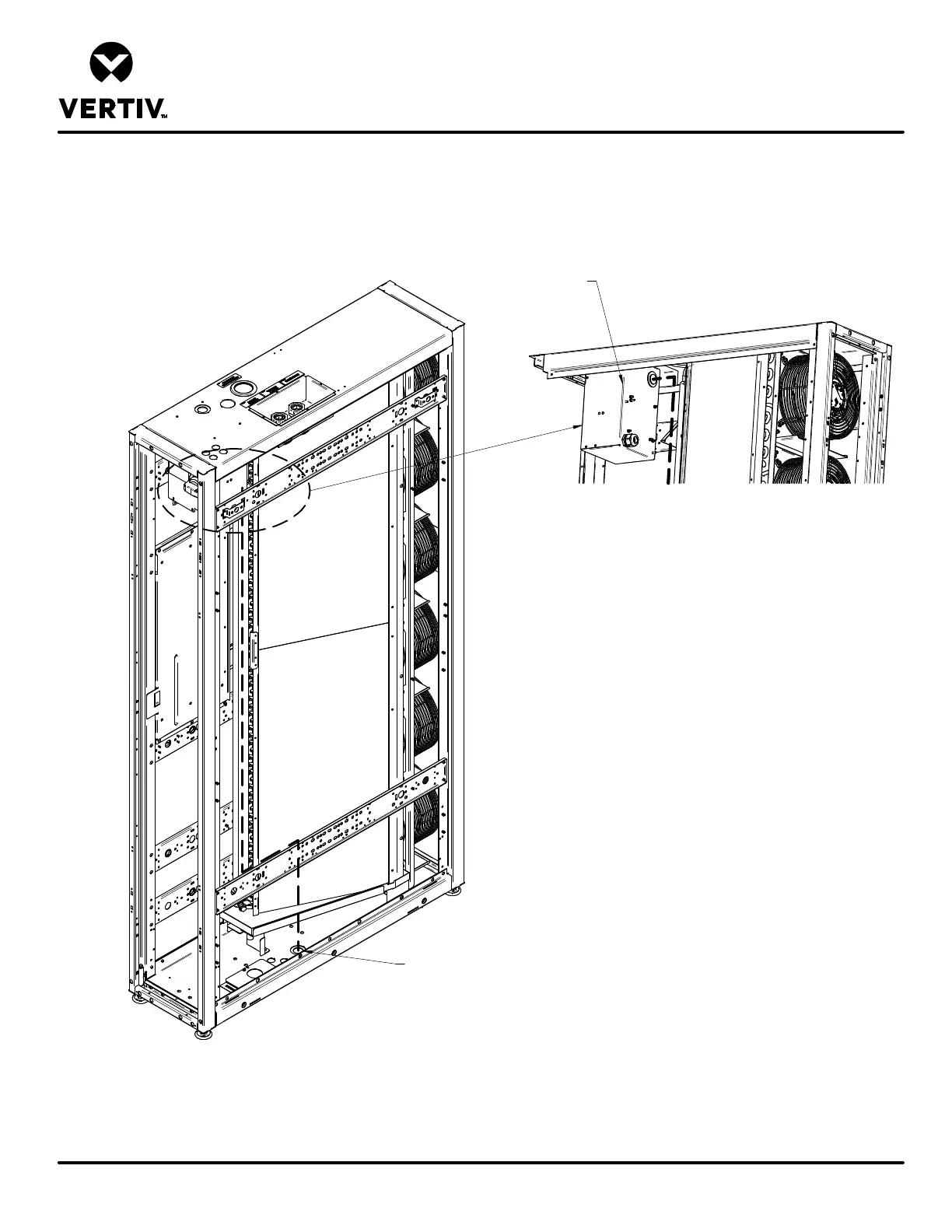

POWER CABLE ROUTING BOTTOM ENTRY
LIEBERT CRV
Use rear knockout
on Main Disconnect
for High Voltage wire entry
High Voltage Wire Routing
Bottom Entry
Notes:
1. Some components not shown for clarity.
2. General wire routing paths shown. Wiring must be
run in conduit and must be inside Liebert CRV frame
and panels. Attach conduit to inside of rails with
cable ties.
3. Control wiring must be run in separate conduit from
power wiring. Refer to DPN002814 page 3 for
bottom entry wire routing.
Front
Rear
To Next Page
