600mm (24in.) MODELS
Form No.: DPN001040_REV4

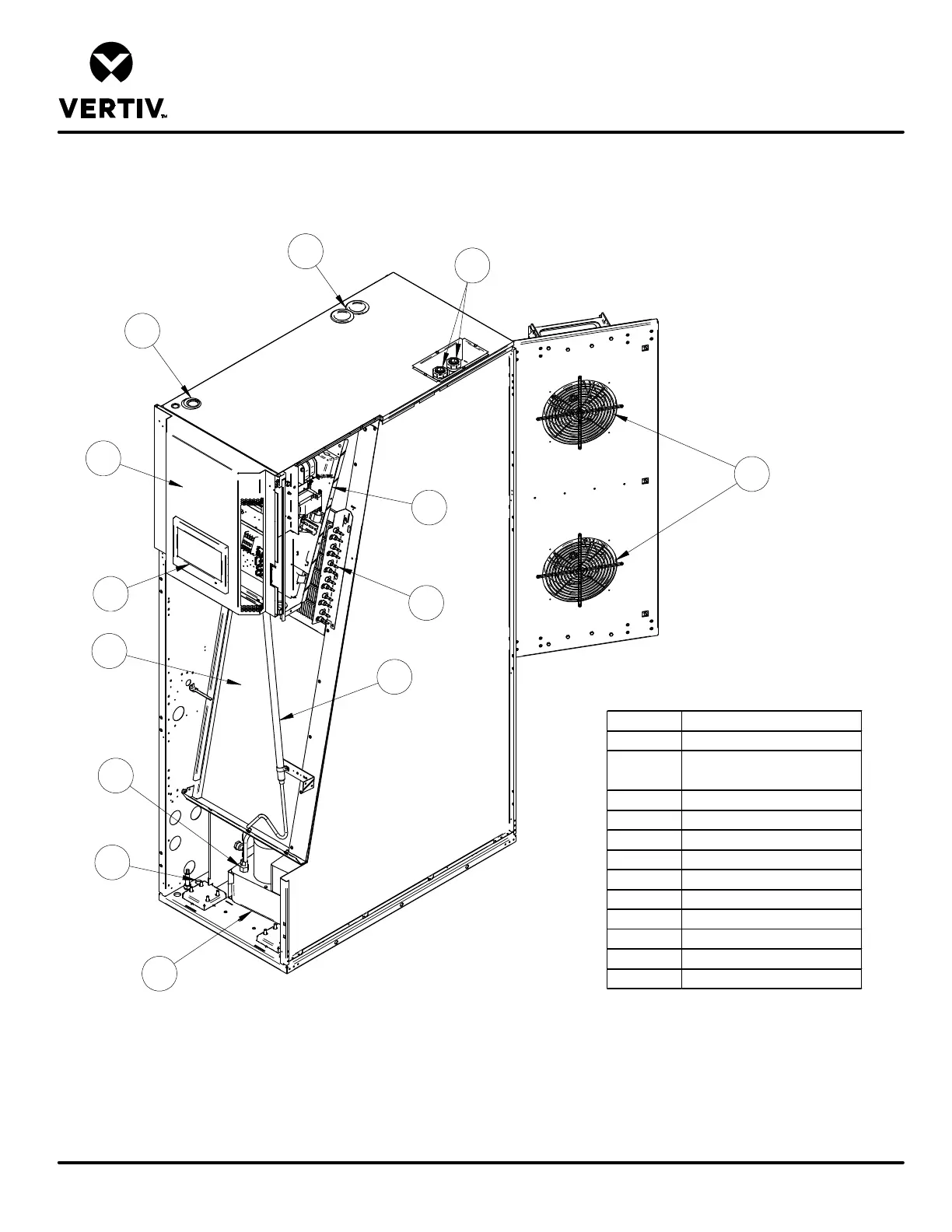

COMPONENT LOCATION DIAGRAM
LIEBERT CRV
1 Top Electrical entrance
2 Electric Box
3
Top humidifier water supply,
condensate pump drain
4 Supply & Return connections
5 EC plug fans
6 Electric heaters
7 Humidifier distributor
8 Condensate pump
9 Bottom Electrical entrance
10 Bottom condensate pump drain
11 Evaporator / CW coil
12 Liebert iCOM Display
13 Serial tag (inside door)
1
2
3
4
5
6
7
8
11
12
13
9
10
