LIEBERT MC CONDENSER
Form No.: DPN001040_REV4

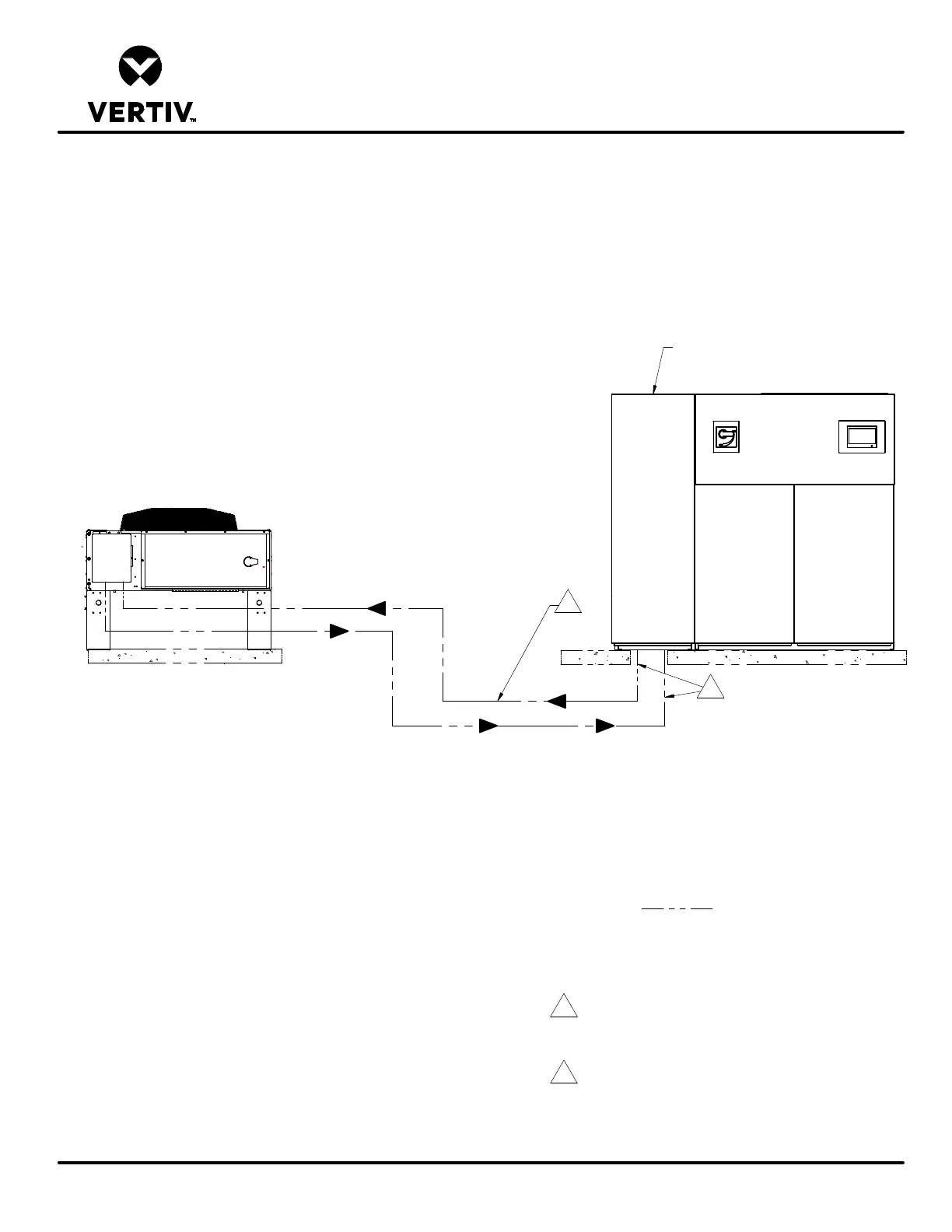

AIR COOLED PIPING SCHEMATIC
Indoor Unit
Notes:
1. Pitch horizontal hot gas piping at a minimum of
1/2" per 10 feet (42mm per 10m) so that gravity will
aid in moving oil in the direction of the refrigeration flow.
2. Single circuit condenser shown.
3. Unit piping entrance varies by unit and may be through
the top of the unit.
4. Indoor unit may be Liebert DS, DSE, PDX, or CRV and
is shown for reference only.
1
Field piping
Gas
Liquid
CONDENSER AND INDOOR UNIT AT SAME LEVEL
3
To Next Page
