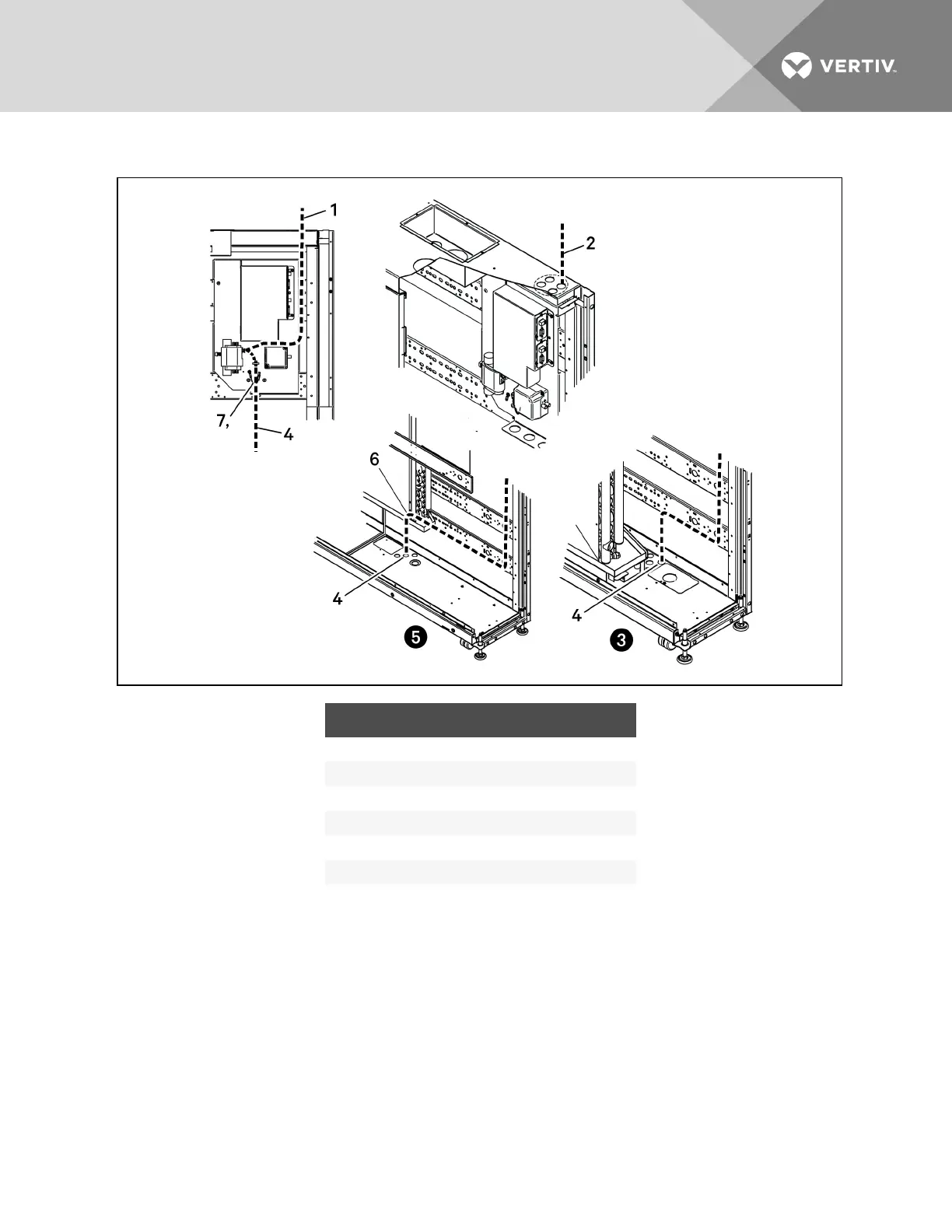

Figure 9.6 CANbus wire routing for CRV300-mm(12-in.) units—CR019 and CR032
ITEM DESCRIPTION
1 Top-entry field routing of CANbus wiring
2 Top-entry field routing of low-voltage wiring
3 CW unit
4 Bottom-entry field routing of low-voltage andCANbus
5 DX unit
6 CANbus and low-voltage wiring route in DX unit
7 Ground connector (factory installed)
