Vertiv NetSure 7100 Series Installation Manual

Vertiv | NetSure 7100 Series -48V DC Power System Installation Manual (IM582127000) | Rev. BB
109
Direct AC Input Connections to 588705000 List 22 and 588705500 List 02 Module Mounting Assemblies
Spec. No. 588705000 List 22 and 588705500 List 02 module mounting assembly is provided with six (6)
factory installed AC input line cords (one for each rectifier module position). Plug each AC line cord into a
properly wired AC outlet or distribution box. Refer to Figure 49.

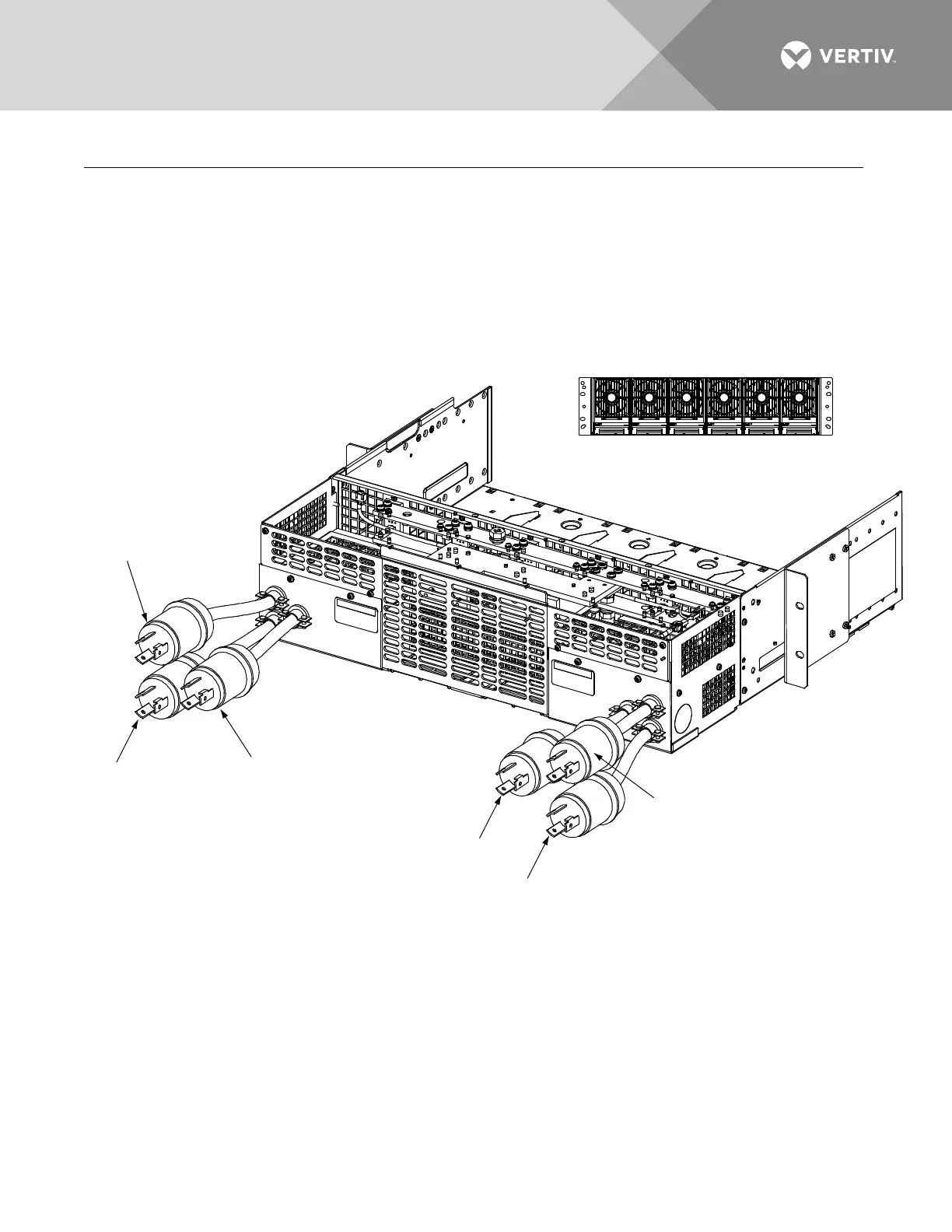

Figure 49: Nominal 208 VAC / 240 VAC Input and Equipment Grounding Connections to Module Mounting
Assembly 588705000 List 22 and 588705500 List 02
(Single Phase, Line Cords)
Rectifier
Module 4
Rectifier
Module 6
Rectifier
Module 5
Rectifier
Module 1
Rectifier
Module 3
Rectifier
Module 2
Rear View
Rectifier Module (PCU) Mounting Slots
(front view)
Rect.
(PCU)
1
Rect.
(PCU)
2
Rect.
(PCU)
3
Rect.
(PCU)
4
Rect.
(PCU)
5
Rect.
(PCU)
6
RECTIFIER (PCU) AC INPUT FEEDS
INDIVIDUAL RECTIFIER (PCU) FEED
208 VAC / 240 VAC, 50 Hz / 60 Hz, SIN
GLE PHASE
