Vertiv NetSure 7100 Series Installation Manual

Vertiv | NetSure 7100 Series -48V DC Power System Installation Manual (IM582127000) | Rev. BB
110
Direct AC Input Connections to 588705300 List 03 Module Mounting Assemblies
Spec. No. 588705300 List 03 is equipped with plug-in AC input connectors located on the rear of the shelf. AC
input cable assemblies or AC input line cords with mating connectors are available (see SAG582127000). Make
AC input connections per Figure 50.

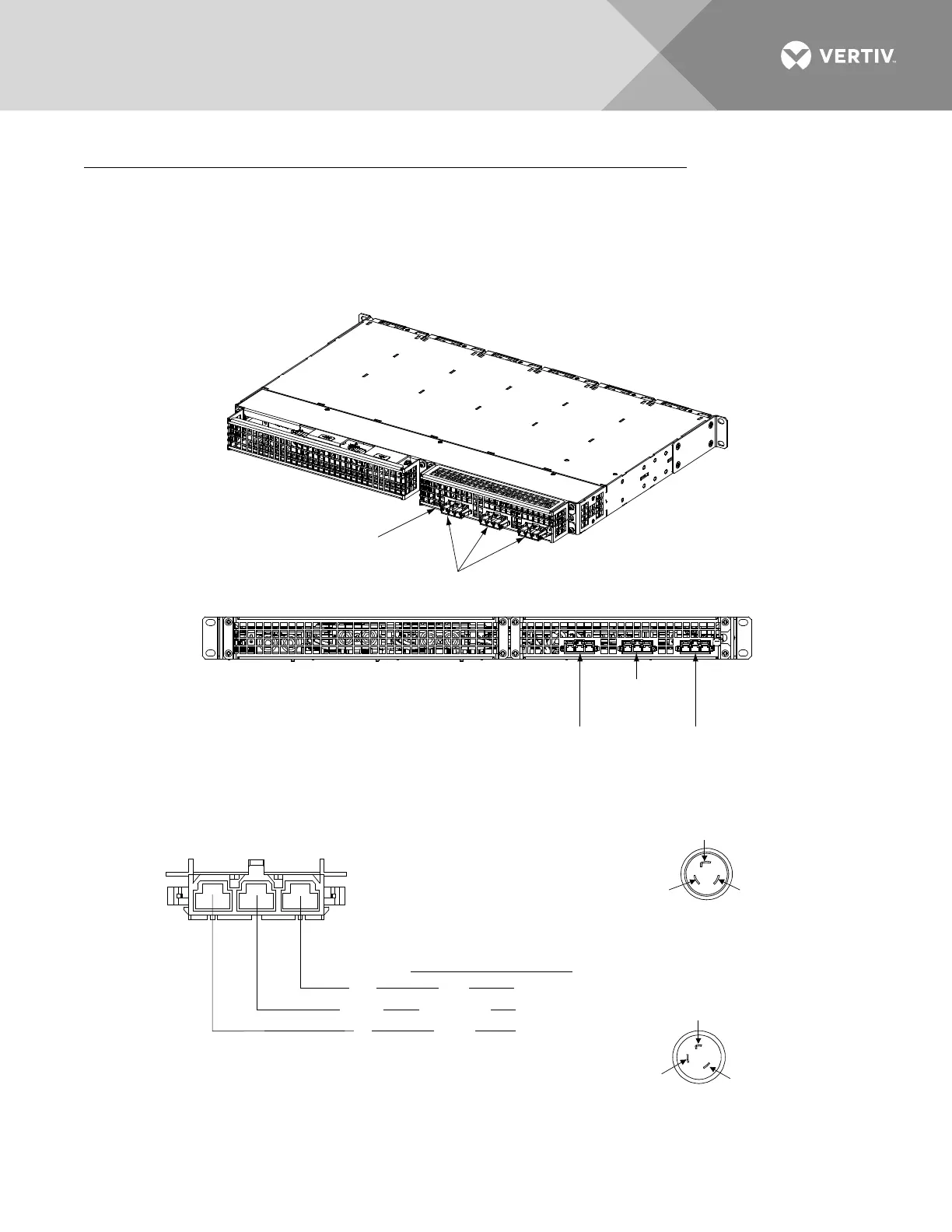

Figure 50: Nominal 120 VAC /208 VAC / 240 VAC Input and Equipment Grounding Connections to Module
Mounting Assembly 588705300 List 03 (Single Phase, Cable Assemblies or Line Cords)
Rectifier
AC input connections are made using the supplied
AC input cable assemblies or line cords connected here.
Rectifiers are numbered left to
right as viewed from the front.
AC Input for
Rectifier Positions
#5 and #6
AC Input for
Rectifier Positions
#1 and #2
AC Input for
Rectifier Positions
#3 and #4
Rear
Rear
M4 Frame Ground Studs
Located Behind Cover
Input Connections are Made
using the Ordered Input
Cable Assemblies / Line Cords
(Cabinet Rear View)
L2-N
Ground
L1
Blue*
Green/Yellow*
Brown*
White*
Green*
Black*
* Color of Input Cable
Assembly / Line Cord Lead
Rectifier AC Input
(120 VAC, 30 A)
Rectifier AC Input
(208 VAC / 240 VAC, 30 A)
Module Input Connector
Input
Cable Assembly
P/N 535232
P/N 547898
P/N 553202
AC Input
Line Cords
P/N 540946
P/N 545252
P/N 545616
Terminal G
(Green Wire)
Terminal Y
(Black Wire)
Terminal X
(White W ire)
P/N 540946
& 545616
Plug End
Terminal G
(Green Wire)
Terminal Y
(Black Wire)
Terminal X
(White W ire)
P/N 545252
Plug End
Rectifier AC Input
(120 VAC / 208 VAC / 240VAC, 30 A)
