vetus® Electronic engine remote control

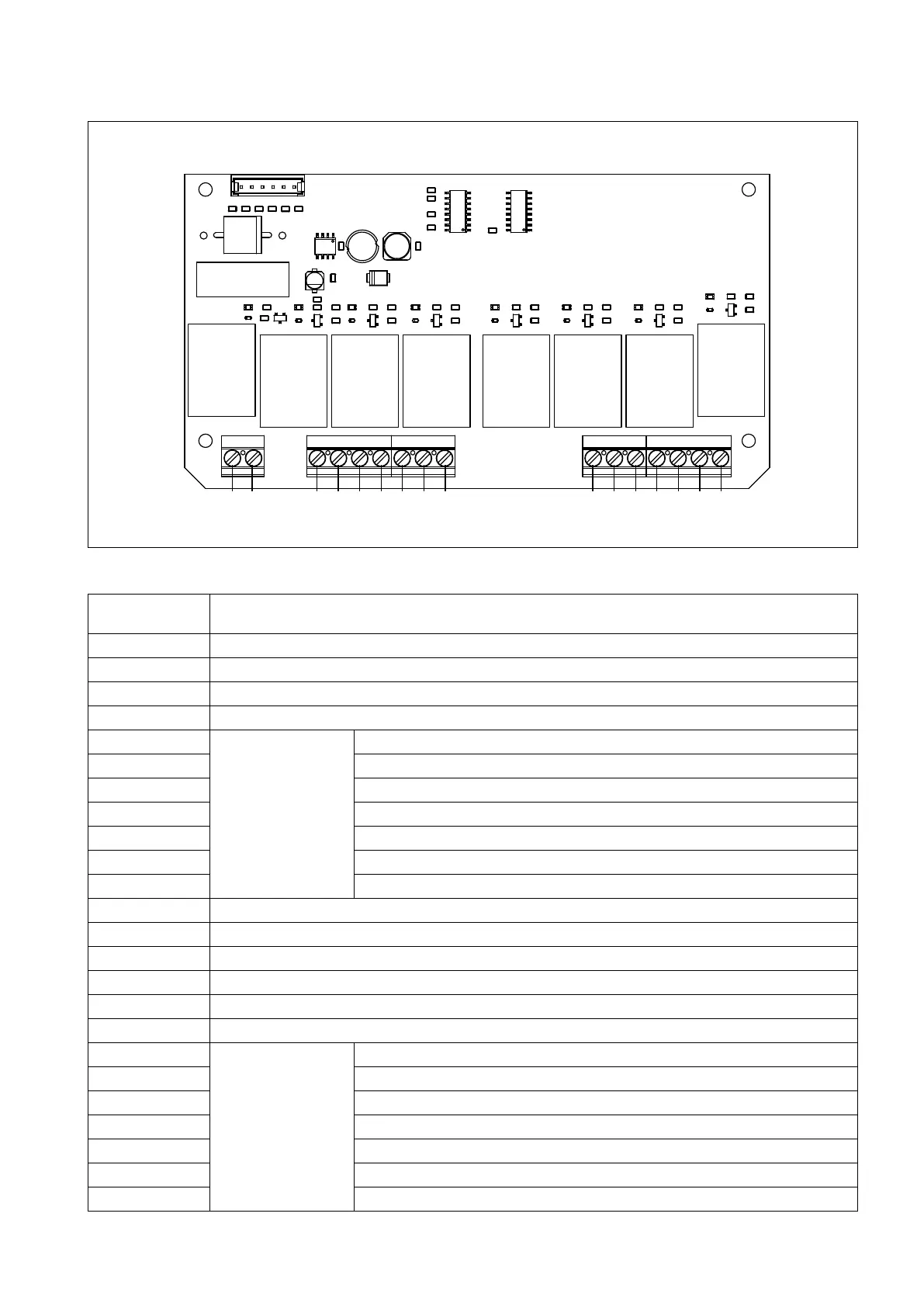

5.4.2 Relays PCB version RB 1.0 for TRIM-FLAP and neutral relays
Pin Description
1 Vdc
2 GND
3 Vdc
4 (Not used)
5
Left engine
Trim common contact
6 Trim +
7 Trim -
8 Trailer
9 Common neutral relays contact
10 NO contact neutral relay
11 NC contact neutral relay
12 (Not used)
13 (Not used)
14 (Not used)
15 (Not used)
16 (Not used)
17 (Not used)
18
Right engine
Common neutral relay contact
19 NO contact neutral relay
20 NC contact neutral relay
21 Common trim contact
22 Trim +
23 Trim -
24 Trailer
4211019876521 232221201918
Fuse
