vetus® Electronic engine remote control
3.1 Control keypad
On each command station are mounted an electronic keypad, push-buttons and LEDs.
In installations with single engine(*), both the green LEDs are referring to the same engine. In systems with 2 engines the
push button and the green LED on the right are referring to the starboard engine while the push button and the green
LED on the left side are referring to the port engine.

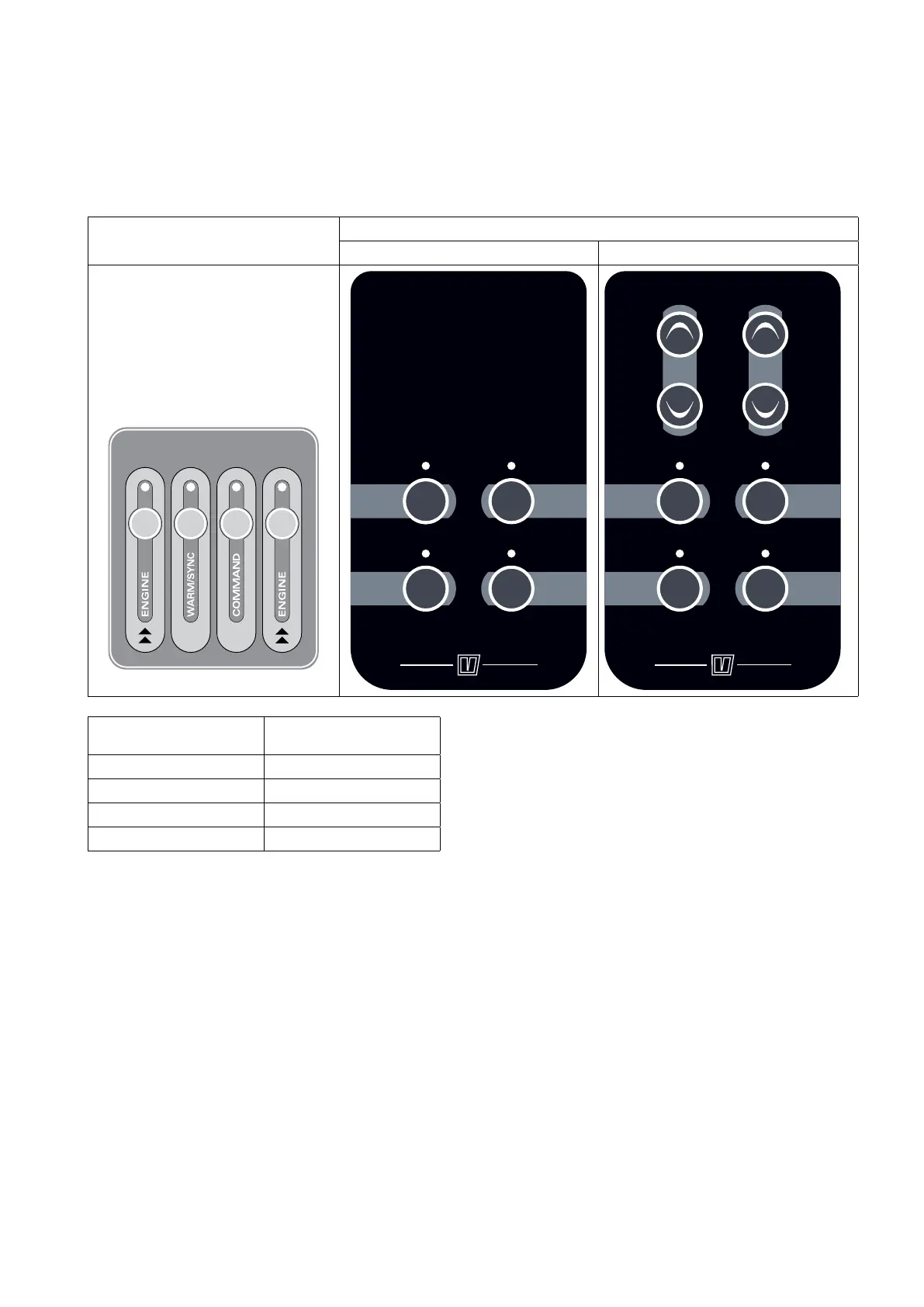

Command station EC3 Command station EC4
without trim option with trim option
vetus
Engine
Command
Warm/Sync
Engine
Engine
Command
Warm/Sync
Engine
Trim
Description LEDs colour
Engine (*) Green
Warm/Sync Yellow
Command Red
Engine (*) Green
(*) In installations with single engine, both the green LEDs are referring to the same engine. In systems with 2 engines
the push button and the green LED on the right are referring to the starboard engine while the push button and the
green LED on the left side are referring to the port engine.
