Vetus EC3 - Actuator with Mechanical Interface and Neutral Relay

030624.13 45
vetus® Electronic engine remote control
ThrottleGear
ThrottleGear
+12 V
+24 V
Trim
Flap
Trim
Flap
Gear
Neutral switch
Gear
Neutral switch
Mech left engine
Ein left engine
Mech left engine
Ein left engine
Canbus
Throttle Throttle
Left engine - Trim/Flap
Left engine - Throttle
CANBus to the comman station
Left engine - Throttle
Right engine - Trim/Flap
Right gearbox with neutral relayLeft gearbox with neutral relay Fuse Supply

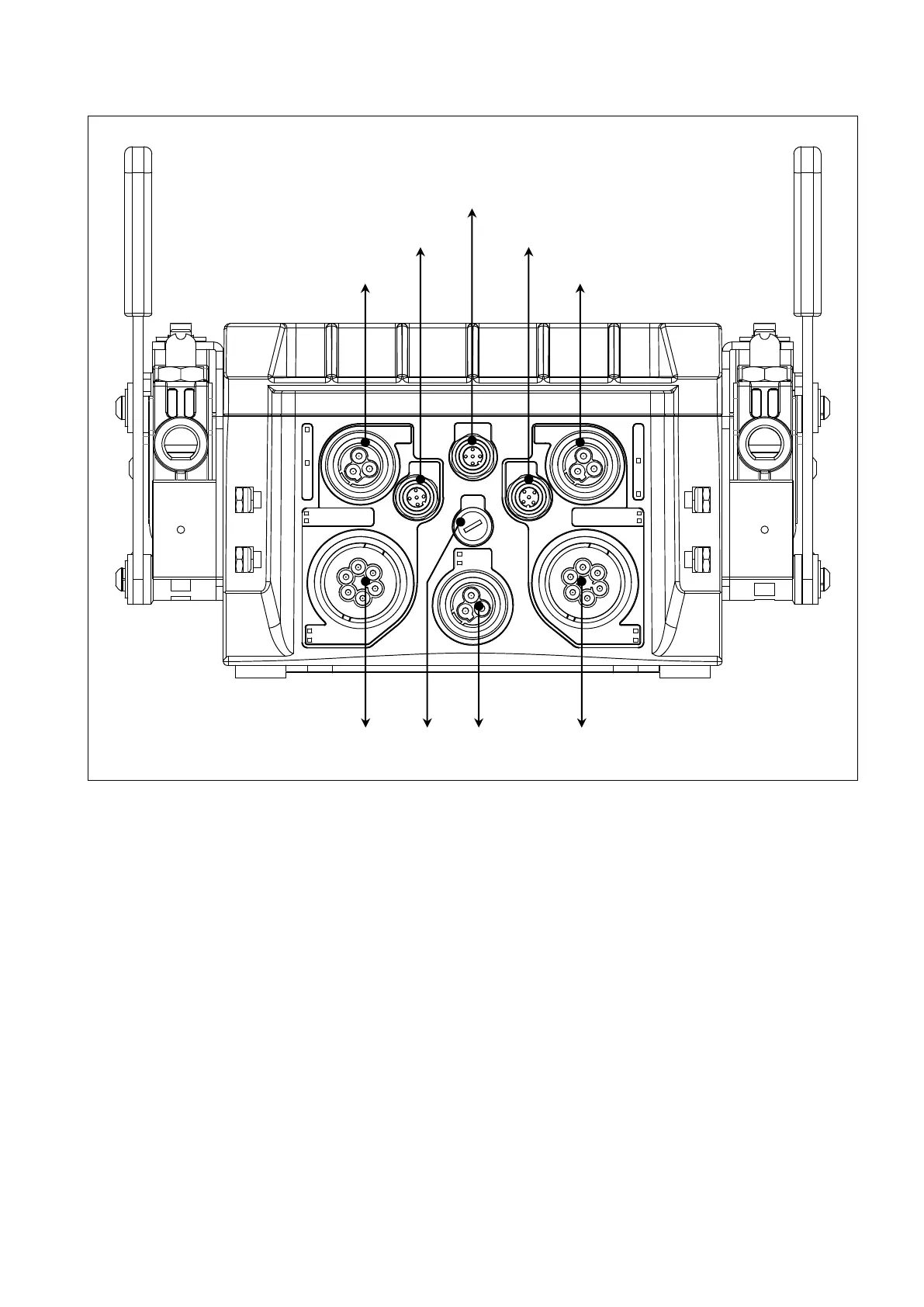

8.2.2 Actuator with mechanical interface and neutral relay
For better comprehension are depicted only the electrical connections and not the mechanical linkages. This actuator is
available in versions with neutral relay, with or without trim and it is suitable for the following applications:
• mechanical engine and mechanical gearbox (only 1 propulsion group per actuator)
• mechanical engine and solenoid driven gearbox (2 propulsion groups per actuator)
• electronic engine and mechanical gearbox (2 propulsion groups per actuator)
