Vetus EC3 - Gearbox Stroke Programming for Electronic Engines

030624.13 65
vetus® Electronic engine remote control
12.1 Programming of the gearbox strokes
1 Switch-off the power supply, either from the mains or unplug and plug-in again the supply connector
2

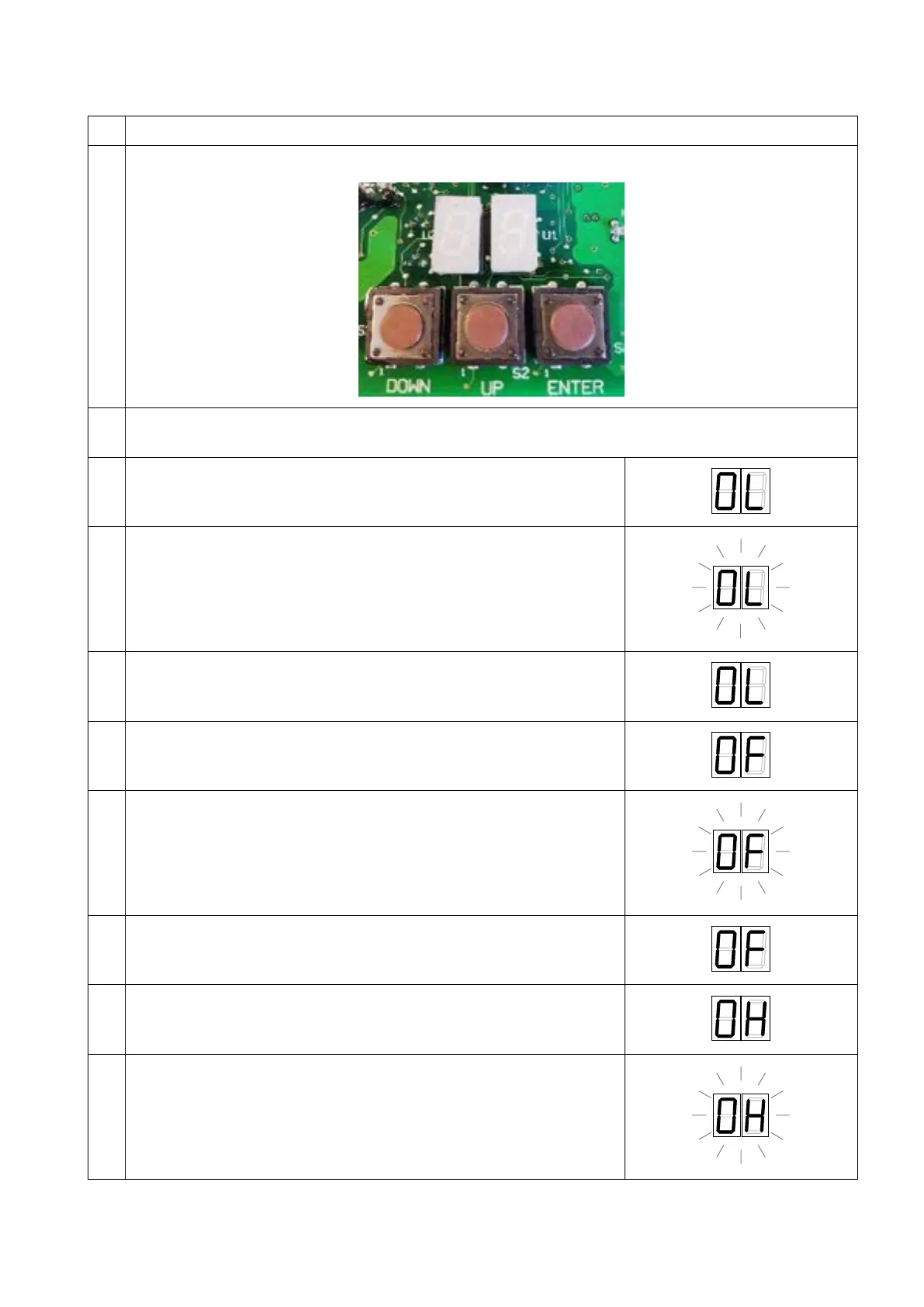

Open the Actuator box and identify the programming keypad (3 push buttons) and the display (2 digits)
3
Press at the same time key “UP” and “DOWN” and, keeping pressed both keys “UP” and “DOWN”, turn on the
actuator’s voltage supply
4
On the 2-digit display shows up, with a steady light “0L”, which
corresponds to parameter (right) Gearbox Reverse
5
Press the “Enter” push button and the display will start flashing.
Press “Up” until the cable reaches the position of Gearbox Reverse
6
To store the position of Gearbox Reverse, press “Enter” again. When the
display stops flashing it means that you have stored the position
7
Press the “Down” push button and the display will move to “0F”
(parameter of Gearbox Neutral)
8
Press the “Enter” push button and the display will start flashing. Press
“Up” until the cable reaches the position of Gearbox Neutral
9
To store the position of Gearbox Neutral, press “Enter” again. When the
display stops flashing it means that you have stored the position
10
Press the “Down” push button and the display will move to “0H”
(parameter of Gearbox Forward)
11
Press the “Enter” push button and the display will start flashing.
Press “Up” until the cable reaches the position of Gearbox Forward
