vetus® Electronic engine remote control
3 Pilot instructions
In the VETUS electronic control system can be mounted any of the following command stations: EC3- EC4. Depending
on the system configuration and on the type of command station, the latter can be used for the command of one or two
engines. Here below are reported the instructions for some types of levers: although the functions are the same, due to
the command station’s construction, push buttons, LEDs and keypads might look slightly different. For more detailed
information look at the specific command station product instruction.
Each command station repeats the functionality of a traditional mechanical lever. Moving the lever from the neutral po-
sition, after an angle between 16° and 20° forward or reverse (it depends on the lever’s type),automatically the electronic
system clutches-in respectively the forward or reverse gear. It follows then the lever’s stroke in forward and backward
direction for the throttle control.

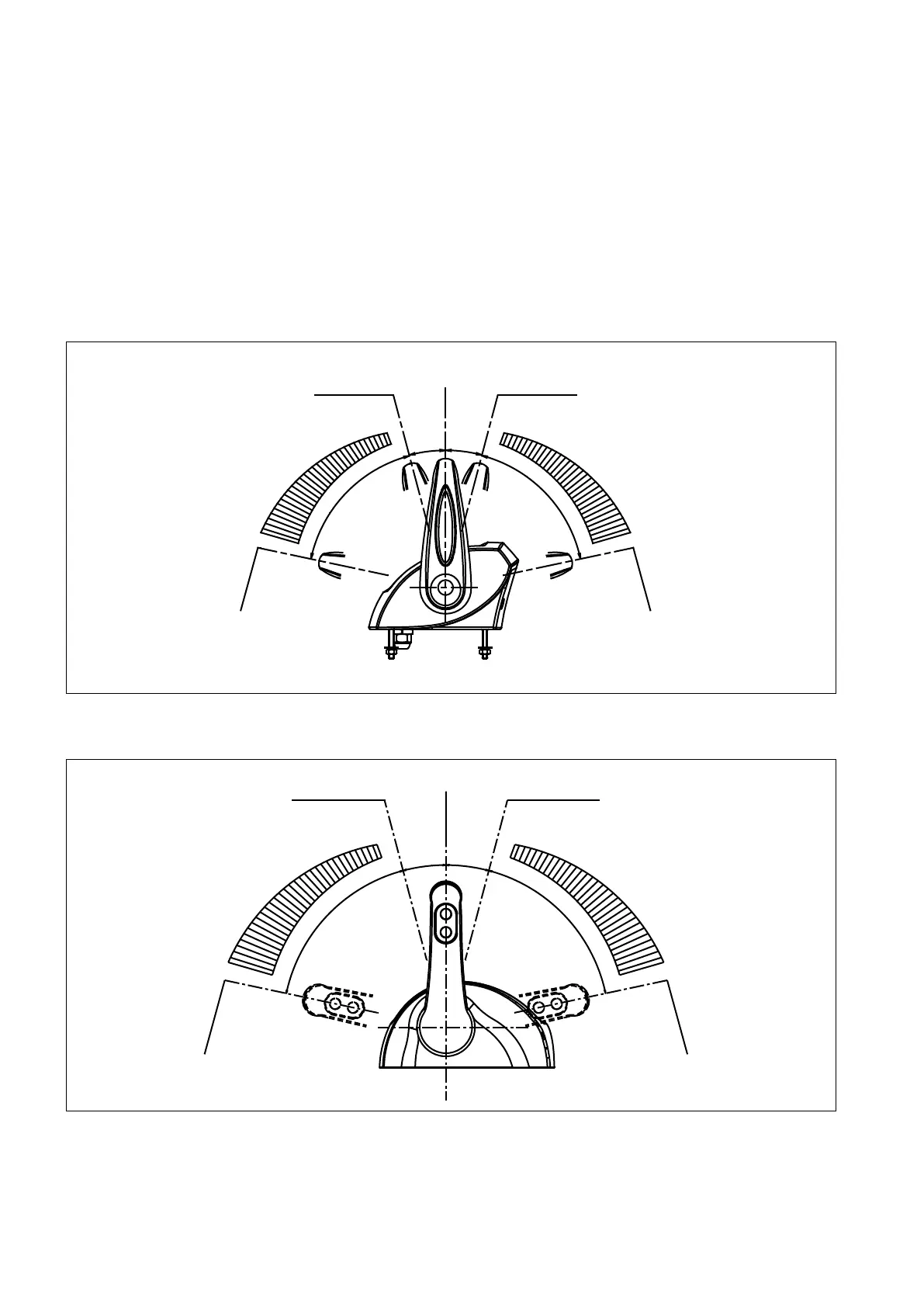

Command station EC3
Command station EC4
Max.
Max.
Min.
Min.
16°
16°
62°
62°
Neutral
For ward
Reverse
Throttle
Throttle
Max.
Max.
Min.
Min.
20°
20°
62°
62°
Neutral
For ward
Reverse
Throttle
Throttle
