Vetus EC3 - Actuator with Full Electronic Interface; Actuator with Full Electronic Interface and Neutral Relay

46 030624.13
vetus® Electronic engine remote control

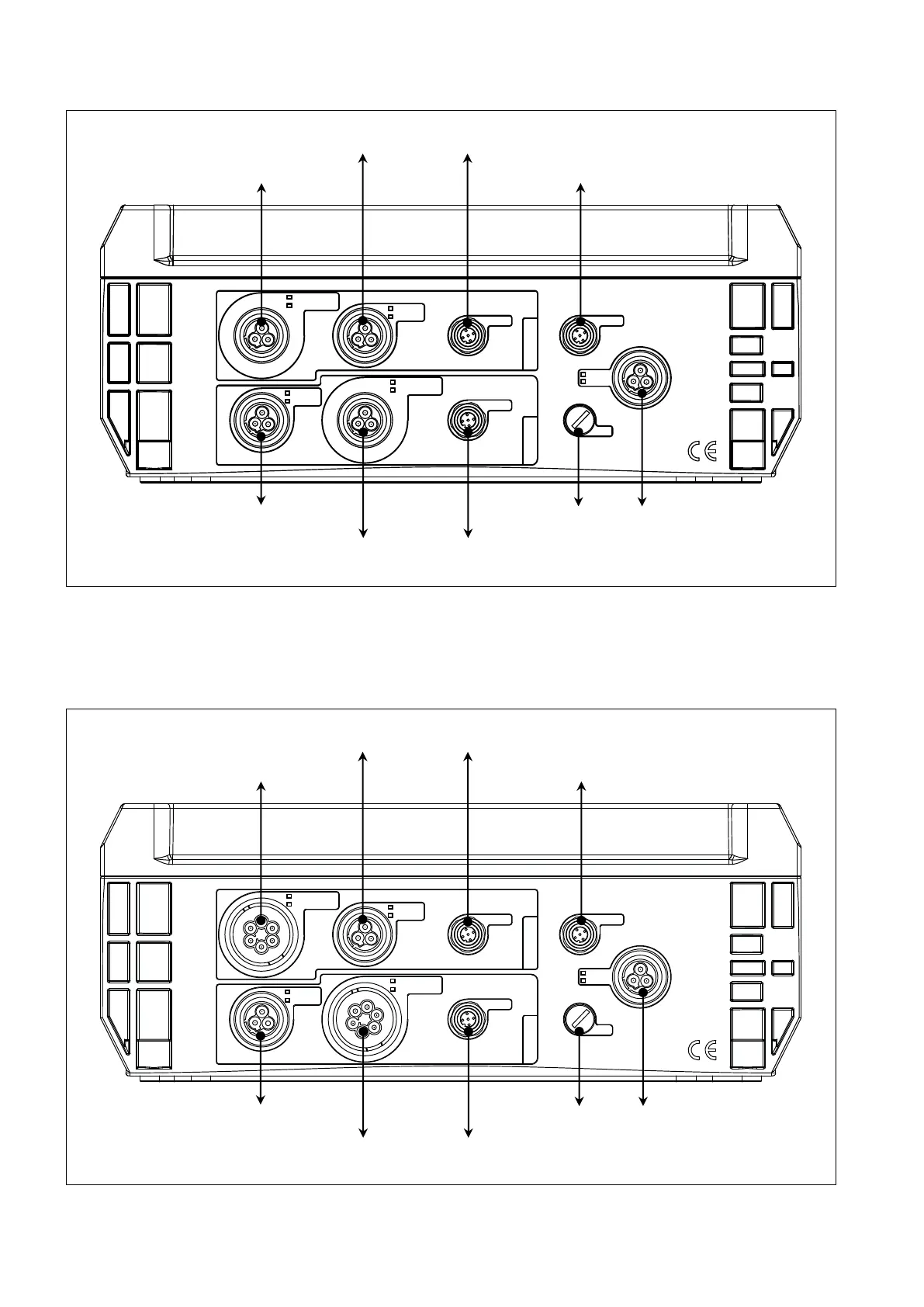

8.2.3 Actuator with full electronic interface
Important: in case of single engine installation, use only the connectors for the right engine.
8.2.4 Actuator with full electronic interface and neutral relay
Important: in case of single engine installation, use only the connectors for the right engine.
Right engineLeft engine
+12 V
+24 V
Gear
Neutral switch
Trim/Flap
Trolling
Trim/Flap
Trolling
Canbus
Throttle
Throttle
Fuse
Gear
Neutral switch
Left engine - Gearbox
Left engine - Gearbox
Left engine - Trim/Flap
Left engine - Trim/Flap
Left engine - Throttle
Left engine - Throttle
Fuse Supply
CANBus to the comman station
Right engineLeft engine
+12 V
+24 V
Gear
Neutral switch
Trim/Flap
Trolling
Trim/Flap
Trolling
Canbus
Throttle
Throttle
Fuse
Gear
Neutral switch
Left engine - Gearbox
with neutral relay
Left engine - Gearbox
with neutral relay
Left engine - Trim/Flap
Left engine - Trim/Flap
Left engine - Throttle
Left engine - Throttle
Fuse Supply
CANBus to the comman station
