vetus® Electronic engine remote control

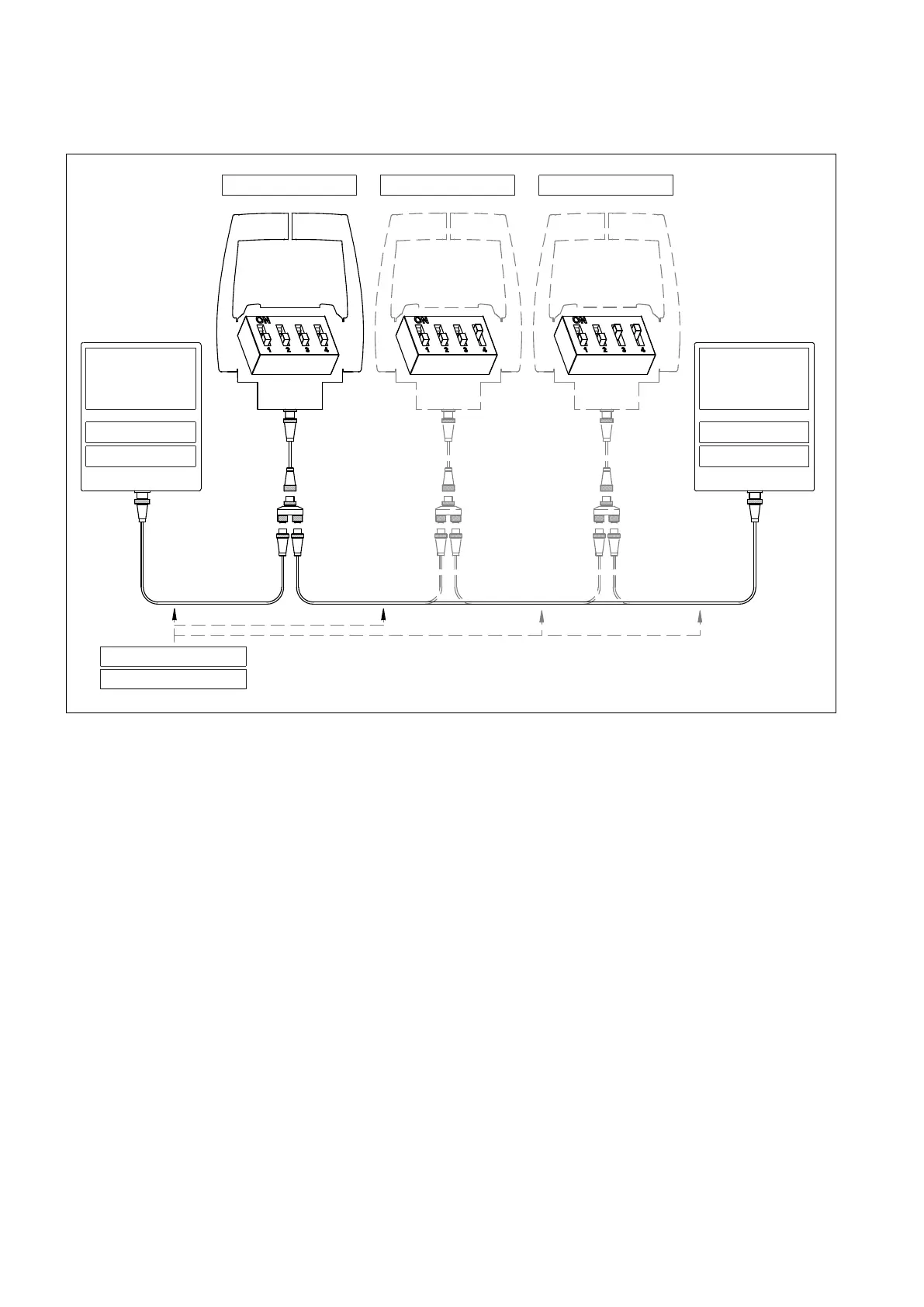

7.3 Installation with 2 mechanical actuators – solution C
Actuators are placed at the ends of the CANBus network
This installation scheme, typical for catamaran applications, is valid for systems with:
• Up to 3 command stations and 2 engines with mechanical throttle, mechanical gearbox, with/without trim;
JP14: OFF (address)
JP19: ON (end-line)
JP14: ON (address)
JP19: ON (end-line)
Code: DTCANxx
Actuator for
left engine
Actuator for
right engine
Data transmission cable
Command station 1 Command station 2 Command station 3
