7.6 Configuration: end of line termination resistor and address setting of command stations
and actuators
According to the number and to the position on the CANBus communication net, command stations and actuators must
be configured to guarantee the correct functioning of the system. End of line termination resistors must be enabled on
the devices placed at the end of the CANBus network.Configuration of the command station
7.6.1 Configuration of the command station
It is mandatory to setup the command station in relation to its position on the CANBus net. Each command station must
have a different address number and if the command station is connected at the end of the CANBus net, the end line
dip-switch must be enable (ON).
Under the base of the command station there is a plastic cap.
Unscrewing it, you have access to the dip-switches.
Operation:
• unscrew the plastic cap;
• set the dip-switch according to one of the configurations de-
scribed in chapter 7
• screw again the cap.

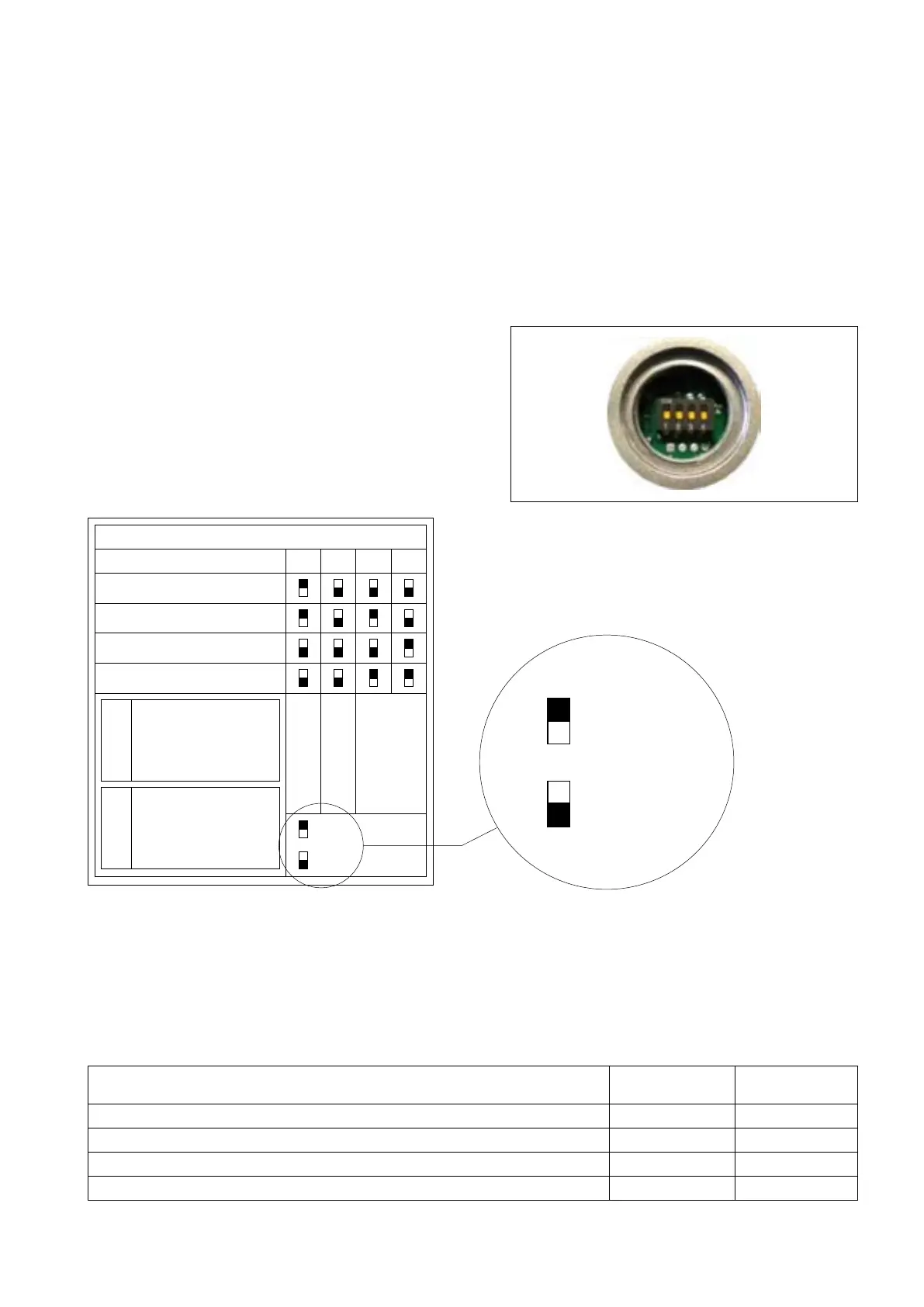

DIP switch configuration
1 2 3 4
Command station 1
Command station FSM
Command station 2
Command station 3
CodeS/N
Line termination
Trolling
Address
ON
OFF
ON
OFF
Dip-switch 1: OFF end-line resistance disabled
ON end-line resistance enabled
Dip-switch 2: trolling option
Dip-switch 3 and 4: identify the command station
The dip-switches configure the command station according to its position in the CANBus network. The selector of the dip
switch is represented in the nearby label with the black square.
Dip- switch 3 Dip- switch 4
Command station 1 OFF OFF
Command station Fast Start-up Mode (this is alternative to command station 1) ON OFF
Command station 2 OFF ON
Command station 3 ON ON
