vetus® Electronic engine remote control

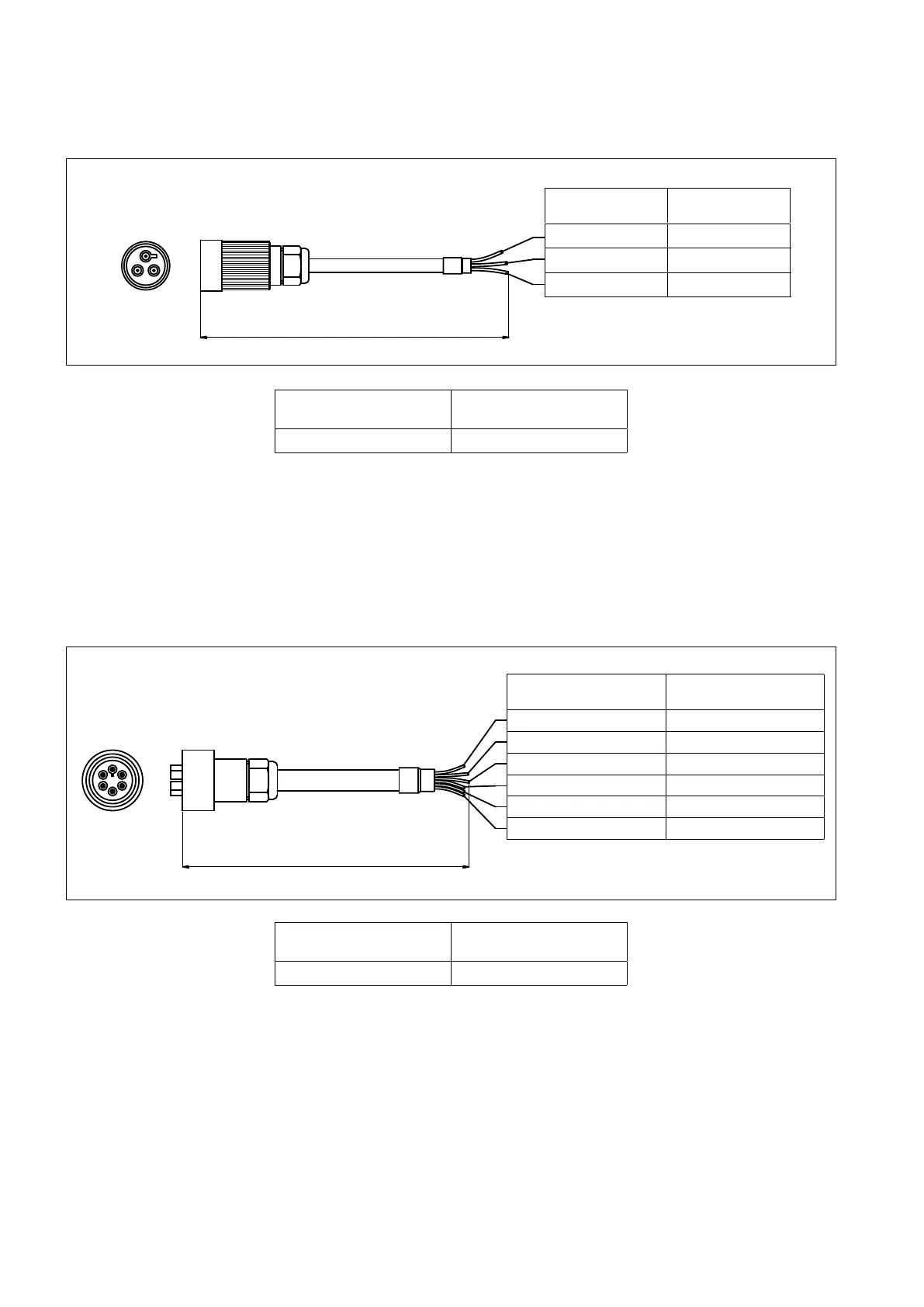

6.3 Cable actuator – gearbox solenoid driven
For the connection towards the gearbox solenoid driven, please refer to sections 8.2.1 and 8.2.3. of this manual.
Length Code
L=3 m EC3T2
Important: this cable is without connector on engine side
L
Front view
Wire colour Function
Black 1 Forward
Black 2 Reverse
Yellow-Green Supply
L
Front view
Wire colour Function
Black 1 Forward - Signal
Black 2 Reverse - Signal
Black 3 Neutral relay
Black 4 Forward - GND
Black 5 Neutral relay
Black 6 Reverse - GND
Length Code
L=3 m ECG3/6
Important: this cable is without connector on gearbox side
6.3.1 Cable actuator - gearbox solenoid driven + neutral relay signal
For the connection towards the gearbox solenoid driven, please refer to sections 8.2.2. and 8.2.4. of this manual.
