vetus® Electronic engine remote control

7.7 Configuration with more than 3 command stations

In case are required more than 3 command stations, command station with address n° 3 must be with serial number

greater than 18500. It is then possible to add to the CANBus network an unlimited number of command stations, which

must have all the CANBus address n° 3.

Command stations with CANBus address = 3 can be physically placed anywhere in the CANBus network, but the CANBus

must have at its ends the end-of-line terminations (see sections from 7.1 to 7.6). Here below an example of a single actu-

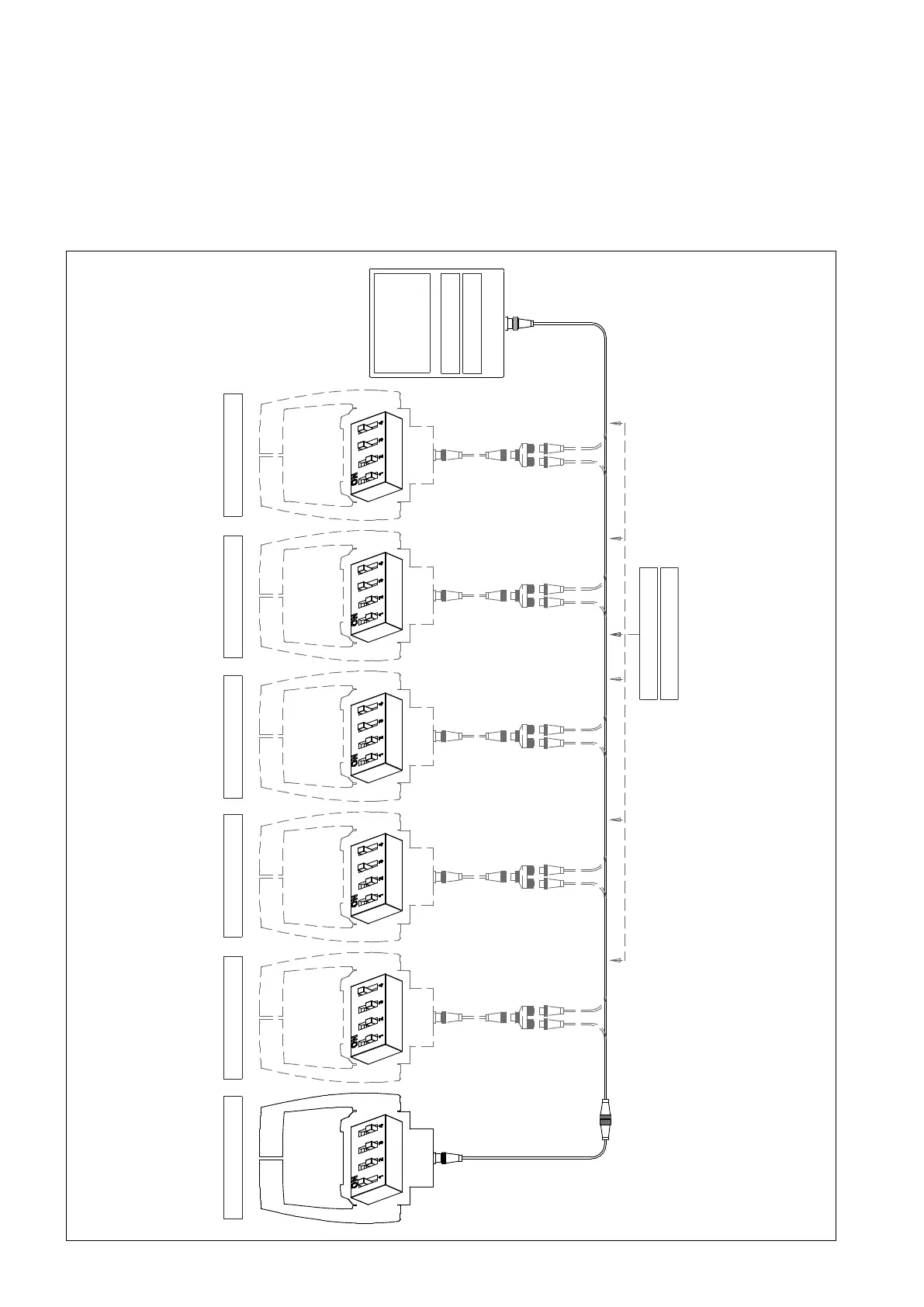

ator installation with more than 3 command stations.

JP19: ON (end-line)

JP14: OFF (address)

Actuator

Code: DTCANxx

Data transmission cable

Command station 3Command station 2

Command station 1

Command station 3Command station 3

Command station 3
