56 030624.13
vetus® Electronic engine remote control

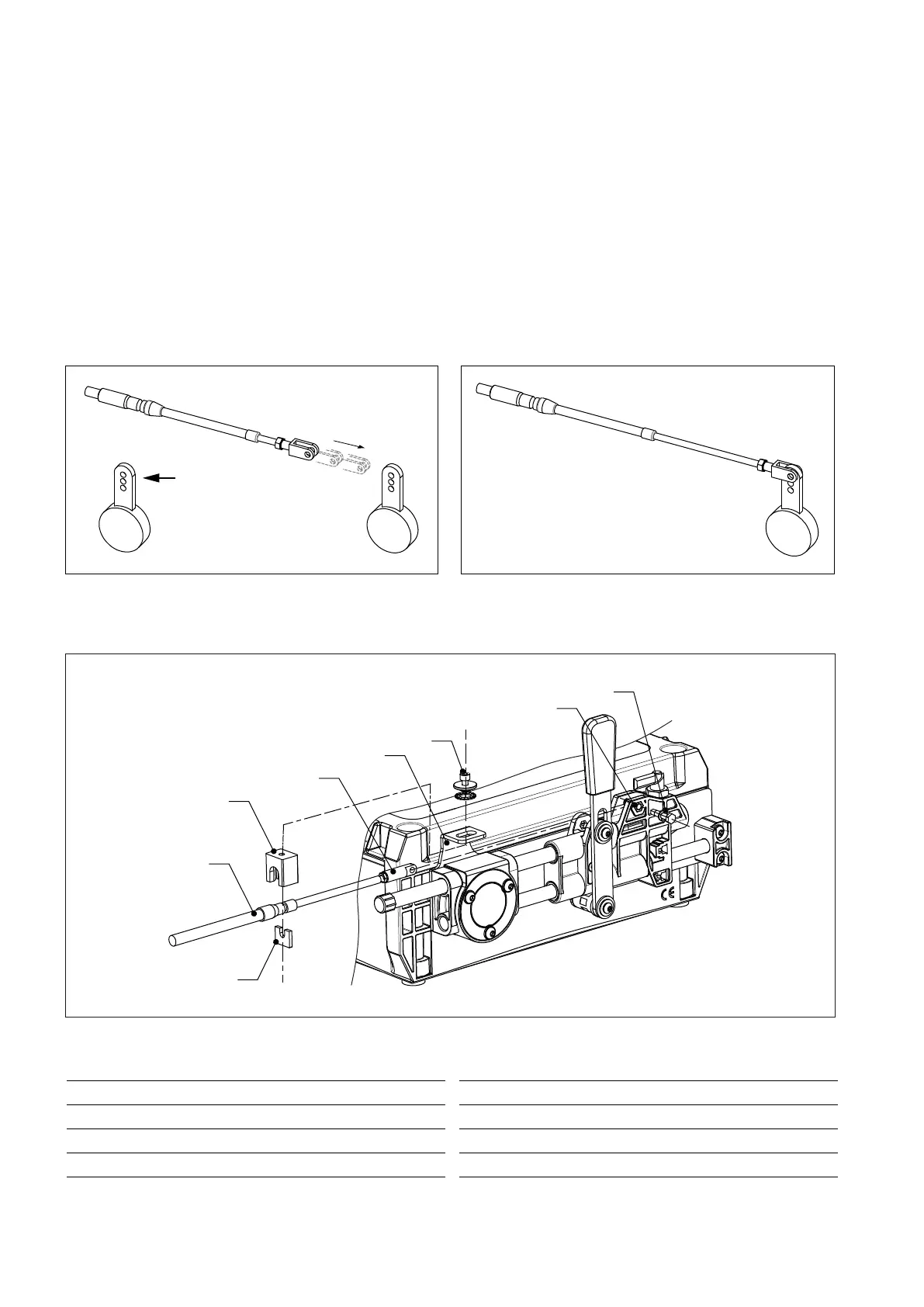

10.3 Mounting of the push-pull cable between gearbox and actuator
This example is referring to the mounting of a standard Volvo Penta push-pull cable. To mount the other types of cables,
refer to the drawings at sections 10.1.3. and 10.1.4. For the assembly, the gearbox must be in neutral position and the
actuator must be turned off.
10.3.1 Connection of the push-pull cable to the gearbox side
Position the gearbox lever in neutral (the lever must be vertical).
1. Adjust the fixing of the push-pull cable in such a way that when the lever is in vertical position, the cable must be at
its half stroke
2. Connect the push-pull cable to the throttle lever using the fork.
1. 2.
10.3.2 Connection of the push-pull cable to the actuator
f
g
e
b
a
d
c
h
Elements to be used for the connection
a Screw + elastic washer to connect the eyelet e Black aluminium cube
b Hole where to x the eyelet f Push-pull cable
c Fixing screw (screw and washers) g Blade
d Bracket slot h Eyelet
