vetus® Electronic engine remote control
13 Programming of actuators for mechanical engines and electronic
gearbox
13.1 Mounting of the engine the push-pull cable and programming of throttle mechanical
strokes
For the connection of the push-pull cables please refer
to chapter 10. To set strokes refer to chapter 11. In case
of actuators for 2 mechanical accelerators and 2 elec-
tronic gearboxes, the following parameters must be pro-
grammed.
Parameter
Value on
display
Left throttle
UL
UH
Right throttle
PL
PH
13.2 Programming of the push-pull cable strokes
With this kind of actuator you must program 2 positions for each engine (minimum throttle and maximum throttle).
For the general programming instructions please refer to chapters 10 and 11.
13.3 Electrical cabling of the gearbox
For each gearbox are available 2 output relays. For proper wiring please refer to sections 5.4.2, 5.4.3, 8.2.5 and 8.2.6. of
this manual.
13.4 Specific parameters
Installations with electronic gearbox might require a delay time when you pass the lever directly from reverse to forward
or from forward to reverse. Factory setting is 0,5 seconds.
Display
code
Description Values
Factory
value
Value shown on display
(factory value)
dI Delay in switching off the gearbox 0 .. 9,9 s 0,0 s 00
dA Delay in start of throttle 0 .. 9,9 s 0,0 s 00
dF
Delay in neutral: it occurs any time you move
directly from forward to reverse or from reverse
to forward. This delay does not occur when
from neutral you move to forward or reverse.
0 .. 9,9 s 0,5 s 05

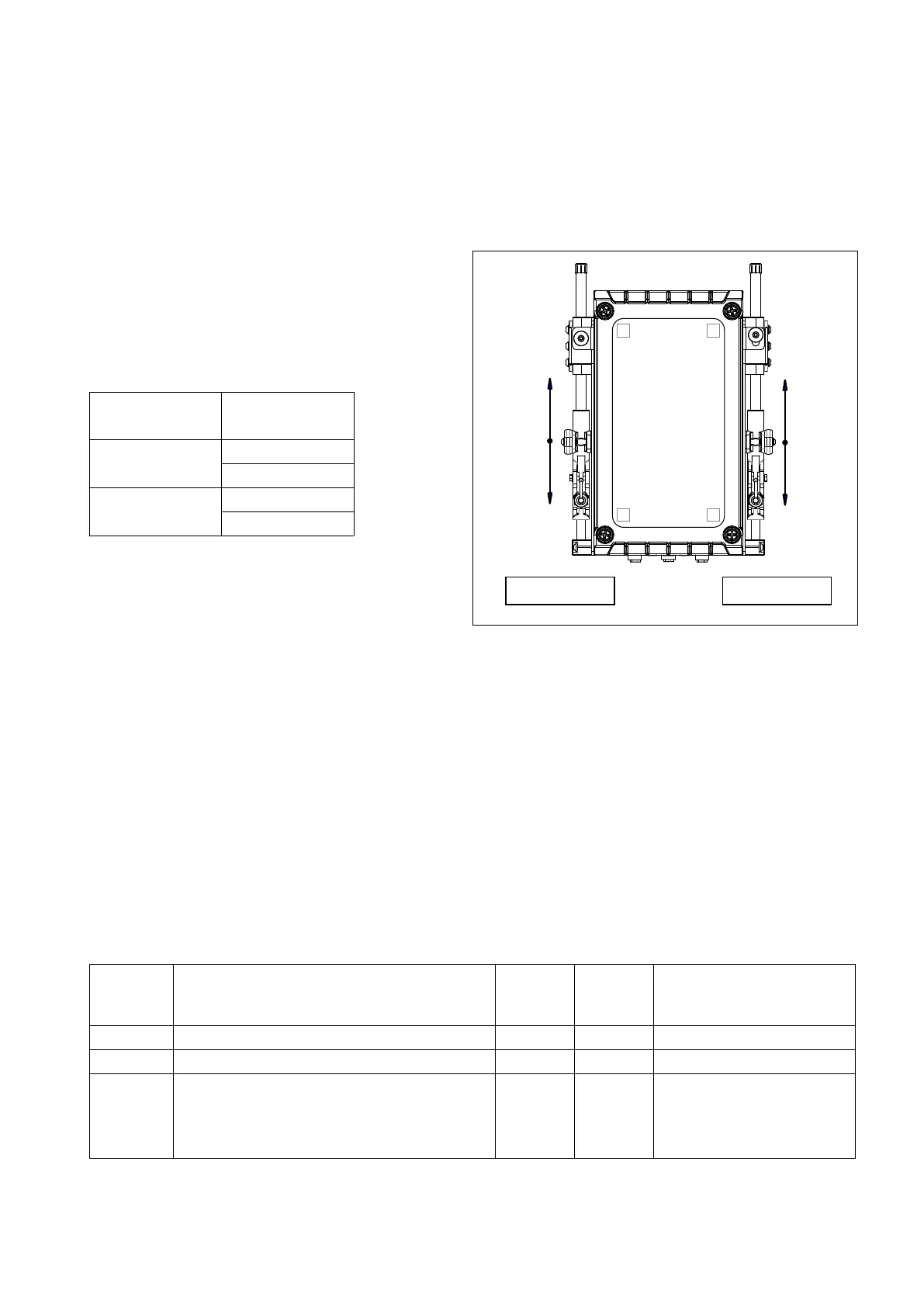

UL
PL
PH
UH
Left throttle Right throttle
Push Pull
Push Pull
