030624.13 53
vetus® Electronic engine remote control
f
g
e
b
a
d
c
h

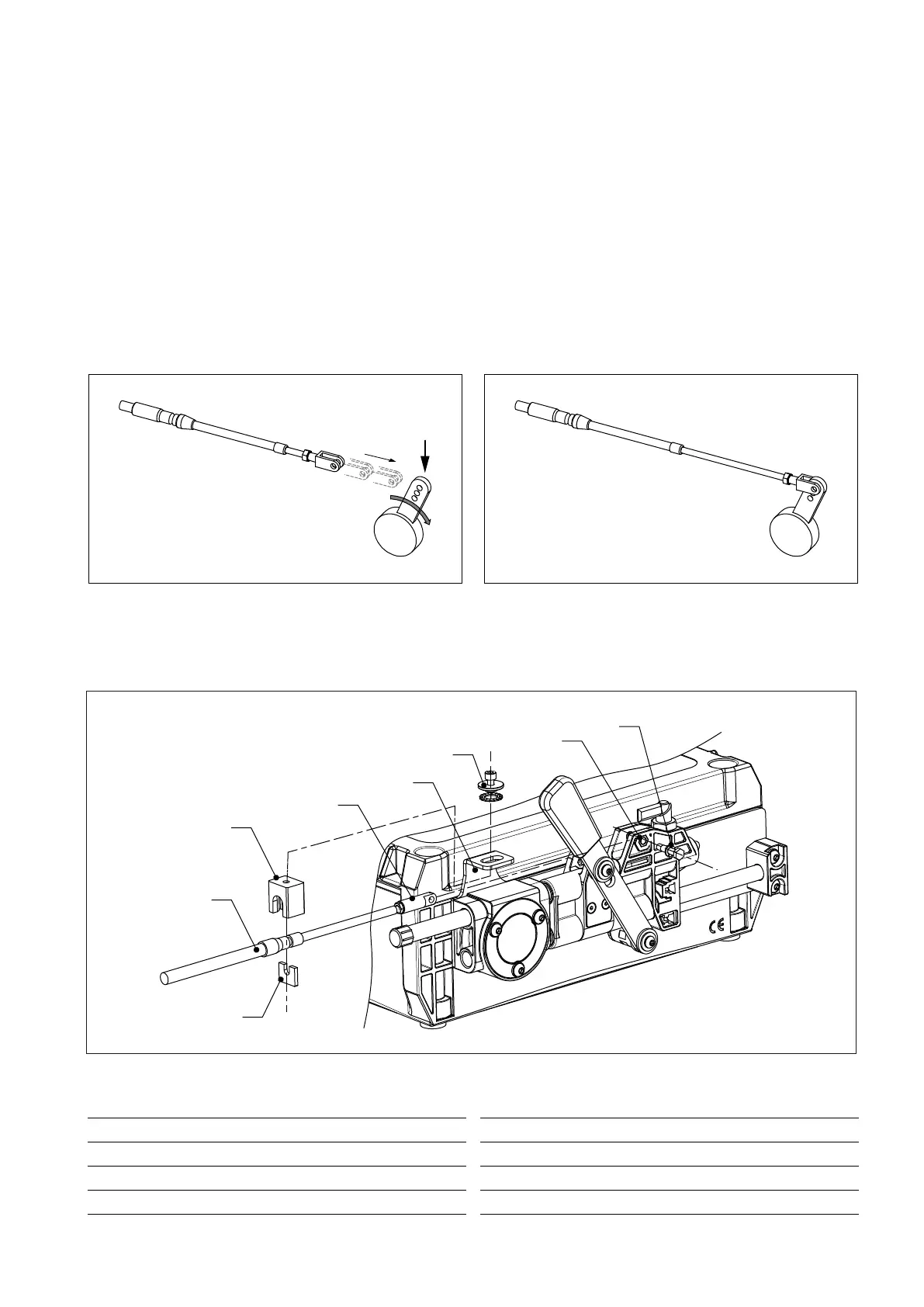

10.2 Mounting of the push-pull cables between engine and actuator
This example is referring to the mounting of a standard push-pull cable. To mount the other types of cables, refer to the
drawings at sections 10.1.3. and 10.1.4. For the assembly, the throttle must be in minimum position and the actuator
must be turned off.
10.2.1 Connection of the push-pull cable to the engine
In this example it is assumed that if you pull the cable, the throttle speed increases.
1. Adjust the fixing of the push-pull cable in such a way that when the lever is at the minimum position (engine idle),
the rod of the cable is completely out (minimum engine speed).
2. Connect the push-pull cable to the engine throttle lever with the fork or the ball joint.
10.2.2 Connection of the push-pull cable to the actuator
Elements to be used for the connection
1. 2.
a Screw + elastic washer to connect the eyelet e Black aluminium cube
b Hole where to x the eyelet f Push-pull cable
c Fixing screw (screw and washers) g Blade
d Bracket slot h Eyelet
