030624.13 27

vetus® Electronic engine remote control

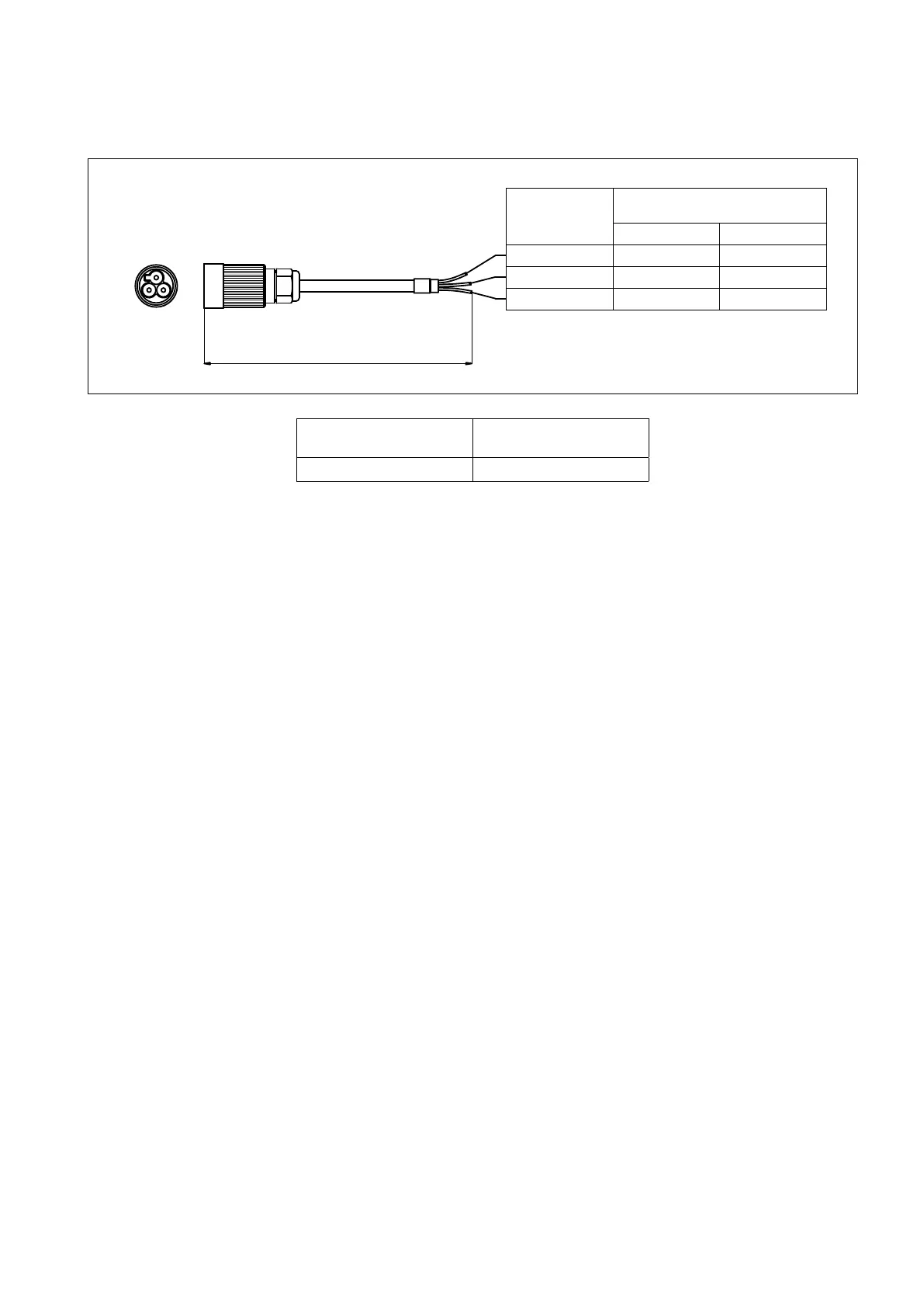

6.4 Cable actuator – trim/flap

For the connection to trim/flap, please refer to sections 8.2.7. and 8.2.8. of this manual.

Front view

Wire colour

Function

Trim Harness Harness Flap

Black 1 Trim - Flap -

Black 2 Trim + Flap +

Yellow-Green Trailer (Vdc Flap)

Length Code

L=3 m EC3T3M
