Vetus EC3 - Wiring Scheme to Gearbox in Case of Actuator Without Neutral Relay; Wiring Scheme to Gearbox in Case of Actuator with Neutral Relay

030624.13 47
vetus® Electronic engine remote control

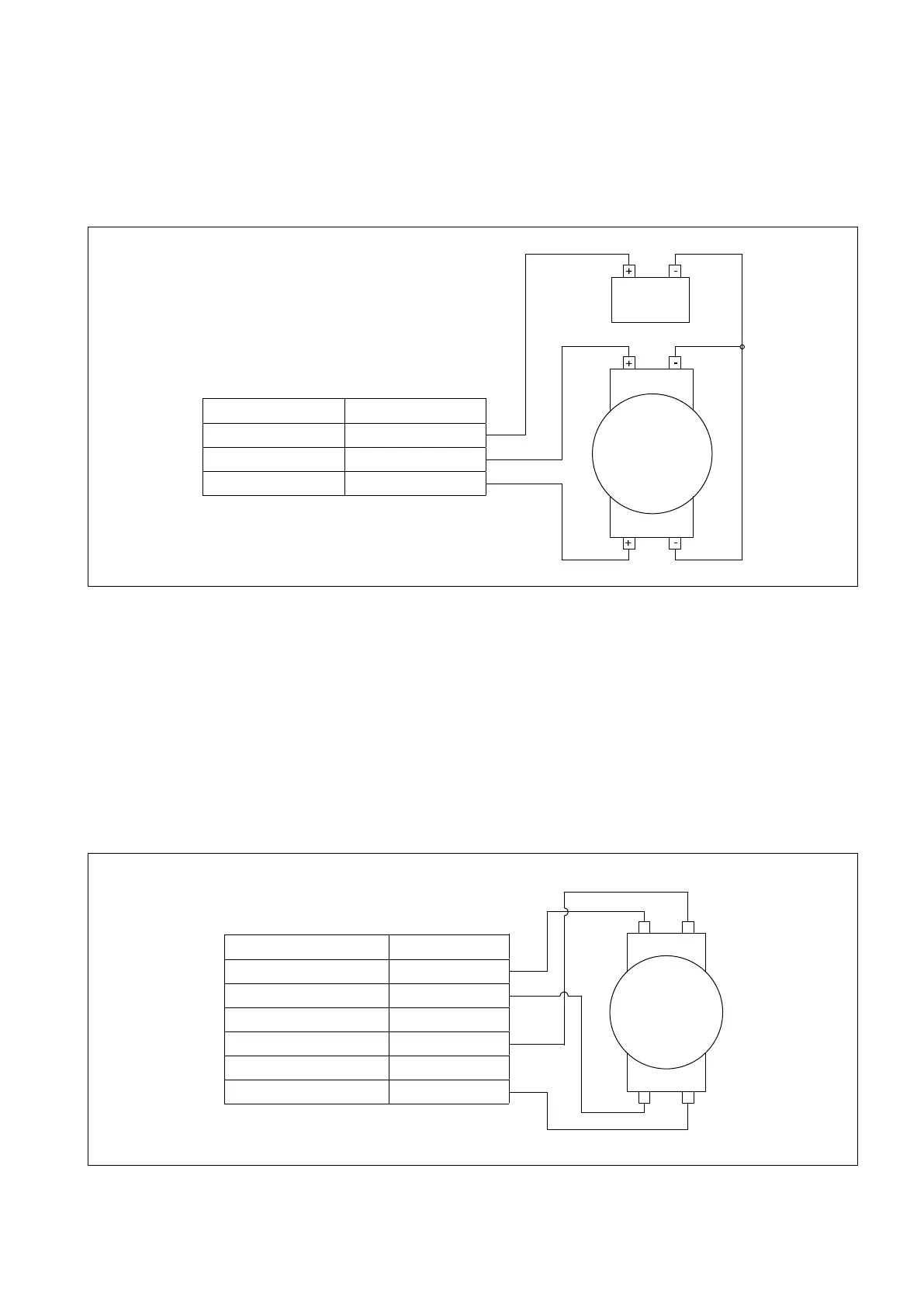

8.2.5 Wiring scheme to gearbox in case of actuator without neutral relay
This wiring scheme refers to:
• Actuators without neutral relay (see sections 8.2.1 and 8.2.3)
• Gearbox cable code EC3T2 (see section 6.3), gearbox cable code 4665/36 (see section 6.3.1) and gearbox cable code
15/36 (see section 6.3.2)
Important: this scheme shows how to connect the electrical cables; battery switch and protection devices (e.g. fuses)
must be chosen according to local regulations.
8.2.6 Wiring scheme to gearbox in case of actuator with neutral relay
This wiring scheme refers to:
• Actuators with neutral relay (see sections 8.2.2 and 8.2.4)
• Gearbox cable code ECG3/6 (see section 6.3.1)
Important: this scheme shows how to connect the electrical cables; battery switch and protection devices (e.g. fuses)
must be implemented according to local regulations.
Function Wire colour
+ Battery Yellow-green
Forward (FWD) Black 1
Reverse (REV) Black 2
Battery
Gearbox
Solenoid FWD
Solenoid REV
+
-
+
-
Gearbox
Solenoid FWD
Solenoid REV
Function Wire number
Forward (FWD) - Signal 1
Reverse (REV) - Signal 2
Neutral relay 3
Forward (FWD) - GND 4
Neutral relay 5
Reverse (REV) - GND 6
