Quantum Receiver User Manual
Rear Panel Connectors
Issue No: A Page: 21
Ref: ?-Insert_Document_Part_No._Here-? Copyright © 2021 Vislink is a Vislink Technologies Inc. companies

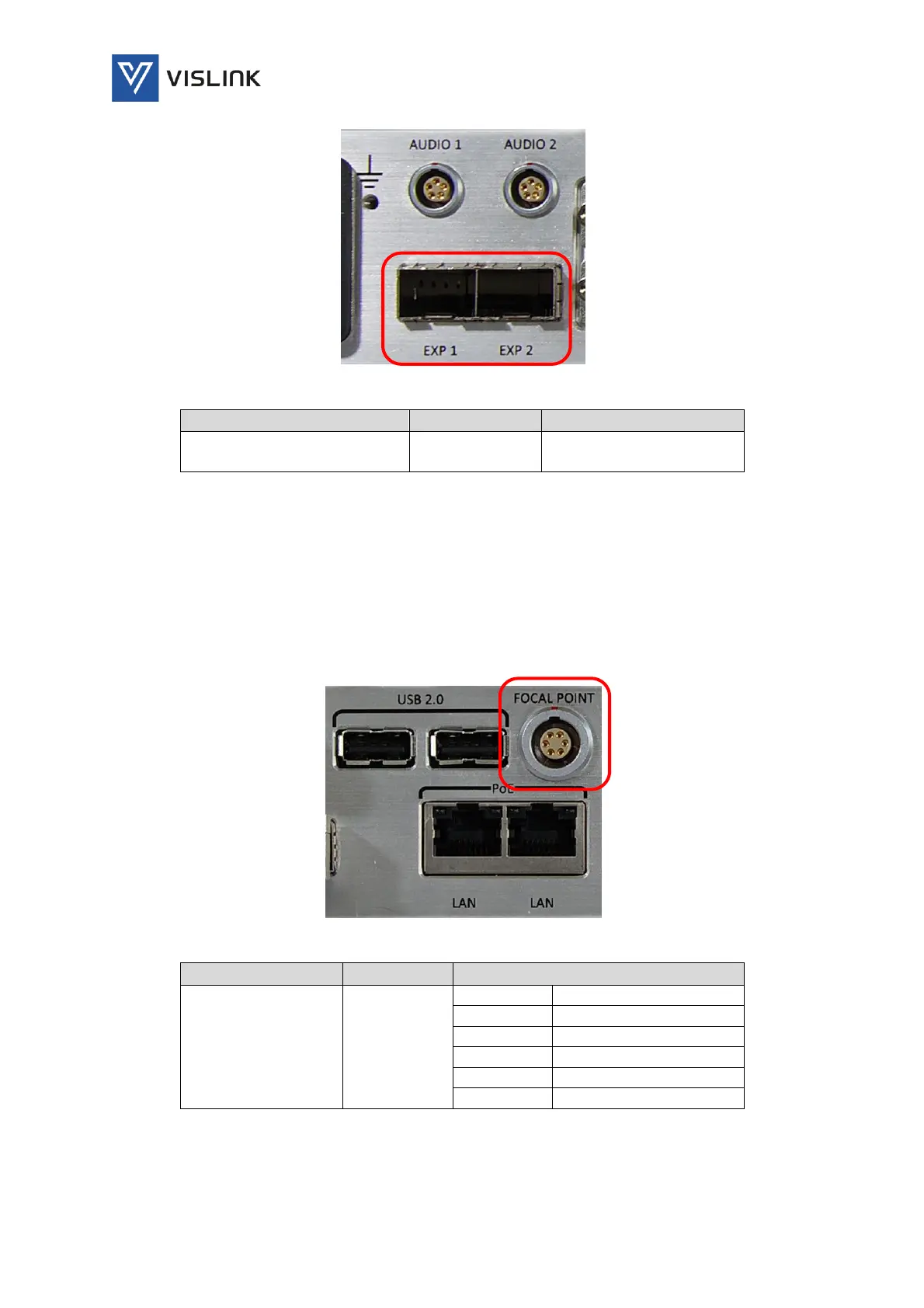

Figure 4-6 EXP Connectors
Connector
Legend
Description
2x SFP cages:
EXP 1
EXP 2
Empty
Table 4-5 EXP Pinout
4.6. Focal Point Connector
One connector is provided for connection to the FocalPoint wireless camera
control (FocalPoint ODU Tx Head**).
Serial data from the camera is returned via the transmitter as part of the MPEG
transport stream in a similar way as the RS232 ‘User data’. It is then extracted
from the transport stream by the decoder and passed back to the transmitter
via this connector.
Figure 4-7 Focal Point Connector
Connector
Legend
Description
1x 6-Pin Lemo
Socket:
FOCAL
POINT
Pin 1
0V
Pin 2
N/C
Pin 3
N/C
Pin 4
D+
Pin 5
D-
Pin 6
Switched +12V
Table 4-6 Focal Point Pinout
