Quantum Receiver User Manual

Web GUI Screens

Issue No: A Page: 41

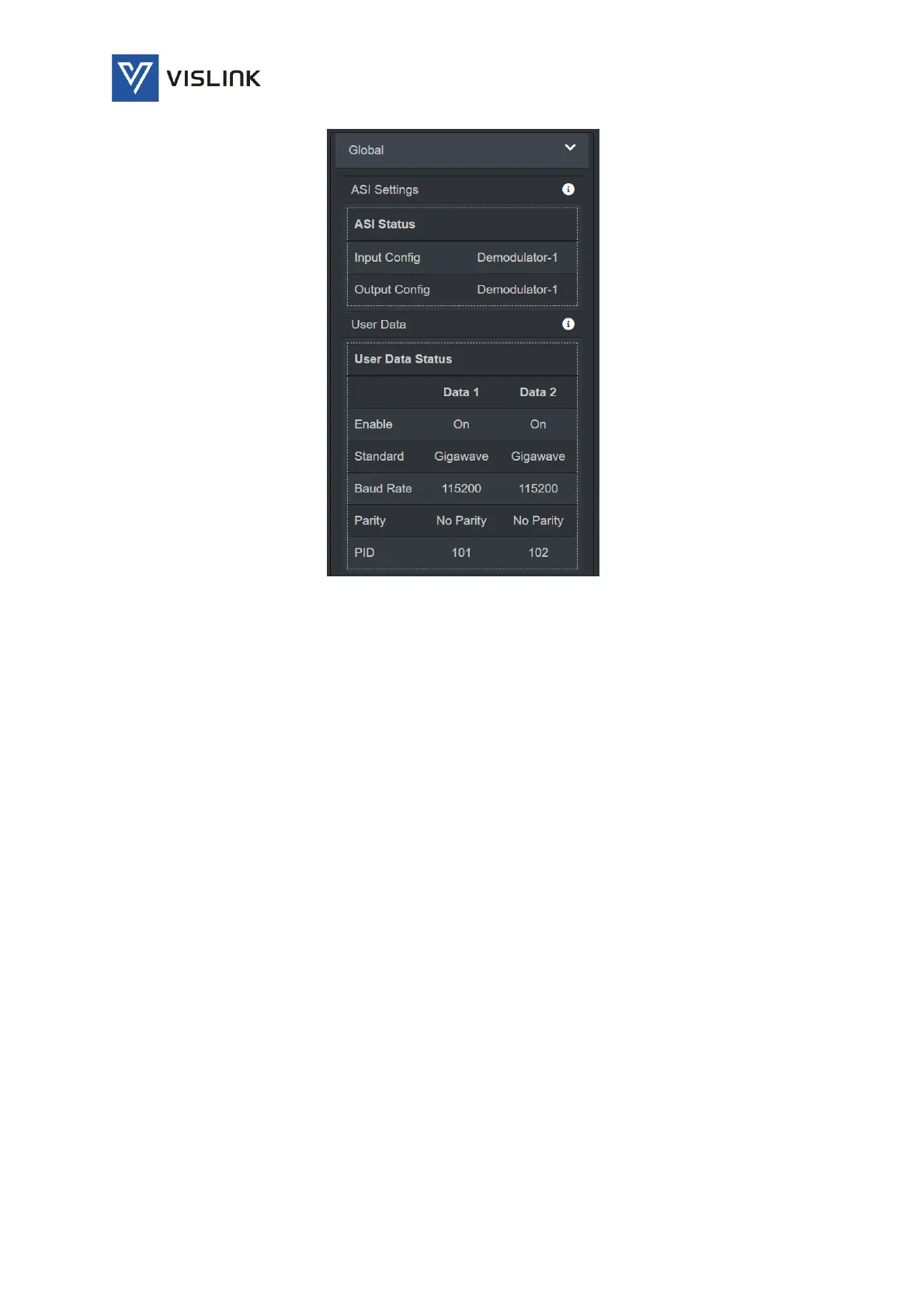

Figure 6-27 Status>Global – More Information

6.3. Settings

Clicking on the Settings menu enables detailed settings to be displayed in the

central panel of the screen.

6.3.1. RF

The Settings>RF panel details the settings for the unit to receive signals on the

RF inputs.

The RF panel provides further tabs for configuration of Modulation, Channel

Plan and BDC.

6.3.1.1. Modulation

The Settings>RF>Modulation tab specifies the modulation settings for the
