Quantum Receiver User Manual
Front Panel Display
Issue No: A Page: 25
Ref: ?-Insert_Document_Part_No._Here-? Copyright © 2021 Vislink is a Vislink Technologies Inc. companies
5. Front Panel Display
5.1. Front Panel Controls
The unit provides a front panel touch-screen display and a rotary control to
scroll through the display screen. Select values/options by push-clicking the
rotary control, and modify them by rotating the control to increment/
decrement.

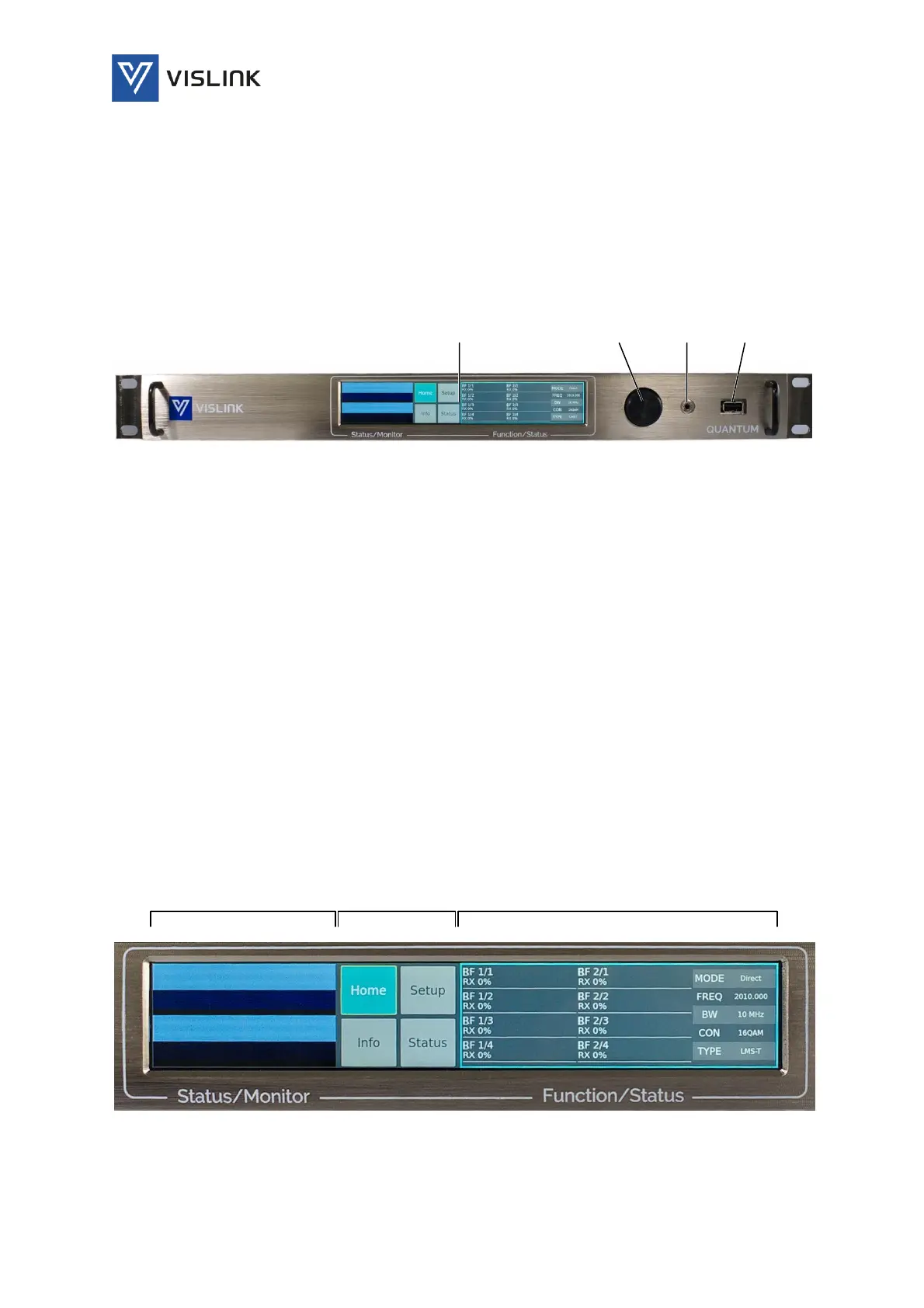

Figure 5-1 Quantum Receiver Front Panel
5.1.1. Rotary Control
The Rotary Control enables scrolling through the menus, cursor movement or
increment/decrement of values/options. The knob may also be used as a push-
button to select highlighted screen functions.
5.1.2. Headphones Socket
The headphones socket is for future use.
5.1.3. USB Port
The USB Port is for future use and should not be used.
5.1.4. Touch-screen Display
The screen displays status messages on the extreme left and provides touch-
screen buttons of Home, Setup, Info and Status in the centre.
The detail settings associated with these functions are displayed on the right-
hand side of the screen. The rotary control is used to scroll through the screens
and modify options as required.
Figure 5-2 Touch-screen Display
