and processed, with each column of the graph referring to a different RF input
channel (#1,#2, #3 and #4).

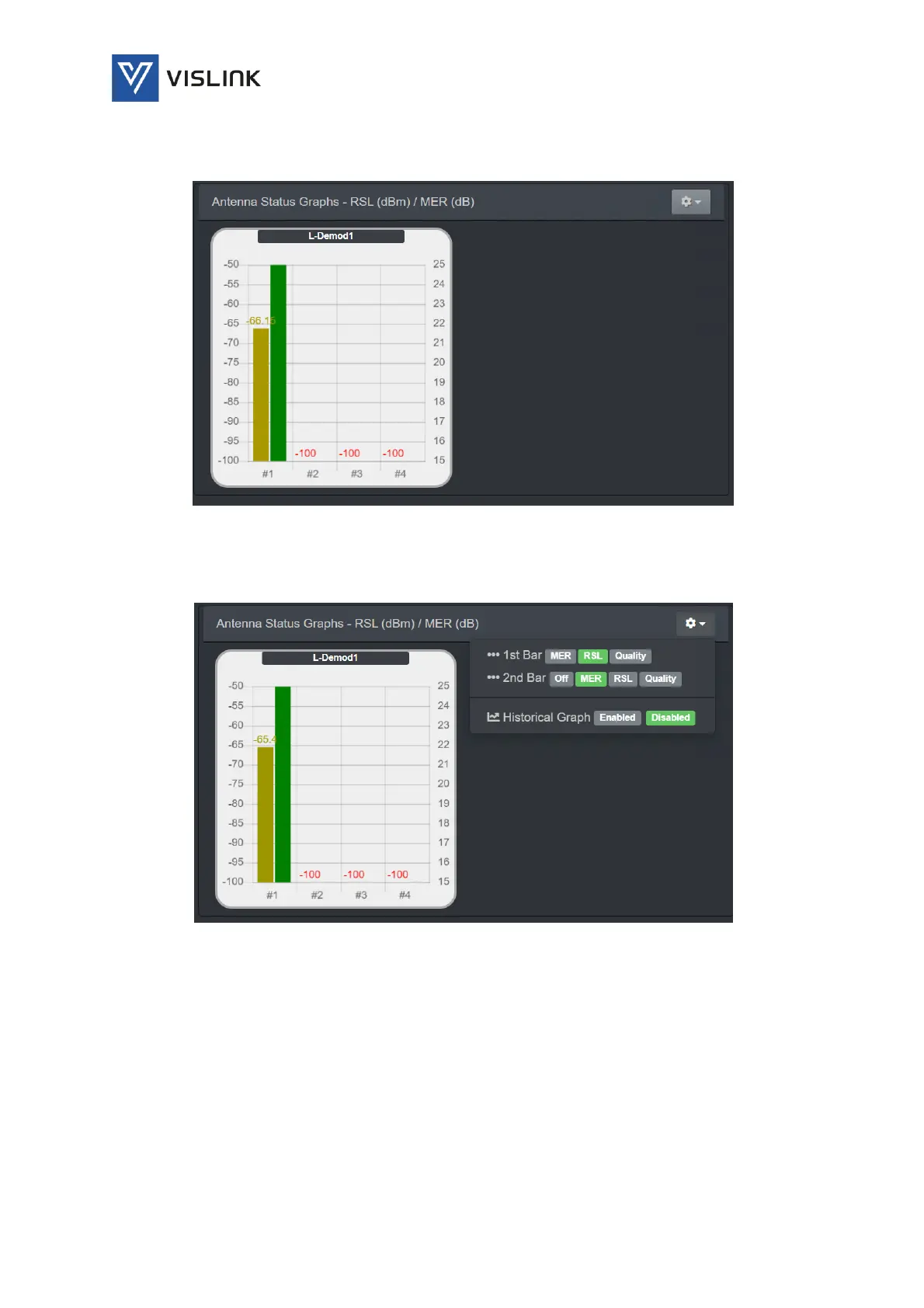

Figure 6-10 Status>Antenna Status Graphs
By clicking on the options drop-down menu in the top right-hand corner of this
panel, you can select various different options for antenna status graphs.
Figure 6-11 Status>Antenna Status Graphs - Options
The Antenna Status Graphs options are (options can be set individually for each
of the displayed bars in the graph):
Off – enables the second (other) bar to be removed from the display.
MER (dB) – displays a real-time bar chart of the Modulation Error Ratio (MER) for
each of the four channels (range: 15-25dB).
RSL (dBm) – displays a real-time bar chart of the Receive Signal Level (RSL) for
each of the four channels, measured at the receiver input (range: -100 to -
50dBm).
Quality (%) – displays a real-time bar chart of the signal quality for each of the
four channels (range: 0-100%).
