Quantum Receiver User Manual
Web GUI Screens
Issue No: A Page: 43
Ref: ?-Insert_Document_Part_No._Here-? Copyright © 2021 Vislink is a Vislink Technologies Inc. companies
Bandwidth – enables the bandwidth to be selected from the drop-down list.
Polarity – enables the RF polarity to be selected from the drop-down list.
6.3.1.2. Channel Plan
The Settings>RF>Channel Plan tab specifies the channel plan settings for the
signals received on the RF inputs.

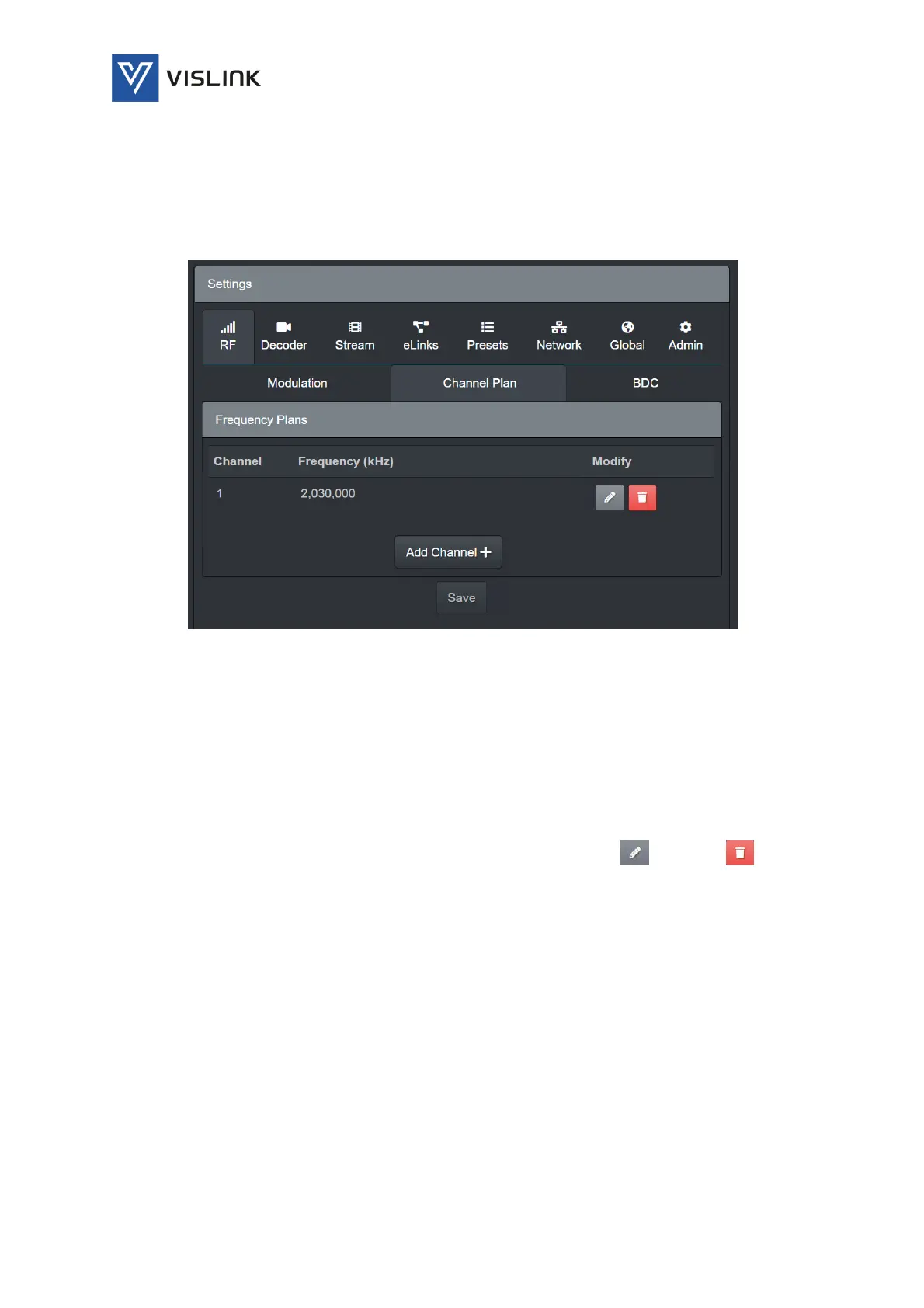

Figure 6-29 Settings>RF>Channel Plan
The Channel Plan tab enables the creation and storage of a channel plan (a
pre-determined configuration) consisting of the active modulation settings as
selected in the Modulation tab. The settings will not be actioned until the
Save button has been clicked:
Frequency Plans
Channel List – a list of defined frequency plans or pre-determined configurations
for quickly implementing a new modulation.
Channel plans may be modified by clicking on the edit or delete button.
Add Channel + – clicking this button enables a new channel plan to be created.
6.3.1.3. BDC
The Settings>RF>BDC tab specifies the Block Down-Converter (BDC) power
settings for the RF inputs.
