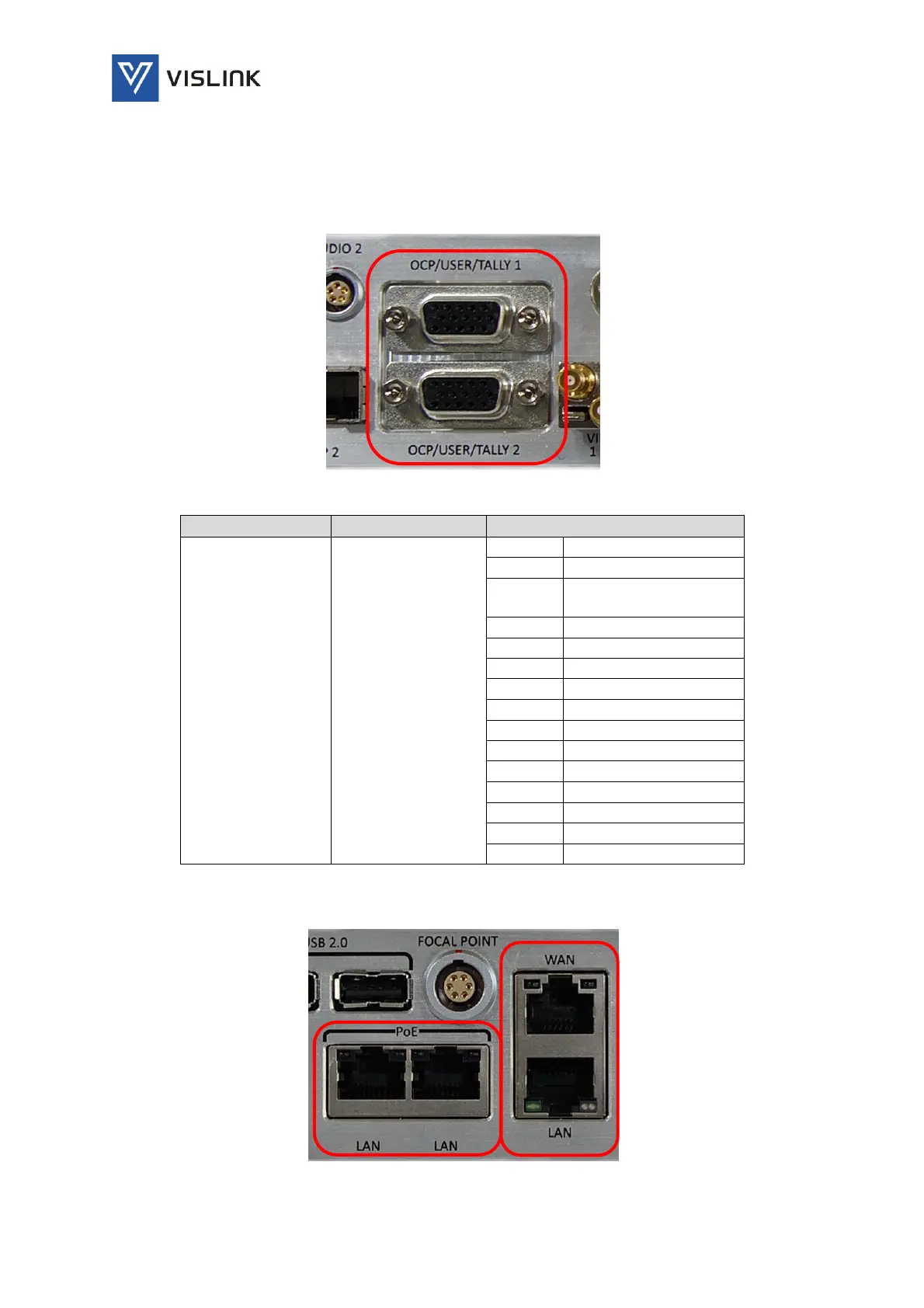

Quantum Receiver User Manual
Rear Panel Connectors
Issue No: A Page: 22
Ref: ?-Insert_Document_Part_No._Here-? Copyright © 2021 Vislink is a Vislink Technologies Inc. companies
4.7. Return Data Connector
Two return data connectors are provided which can be used for OCP
(Sony/Grass Valley/OCP5), user data (RS232/RS485/TTL) or Tally (Red/Green
Wet/Dry).
Figure 4-8 Return Data Connectors
Connector
Legend
Description
2x 15-Pin D (F):
OCP/USER/
TALLY 1/2
Pin 1
+12V DC
Pin 2
RS422 TX+/RS485+
Pin 3
RS422 TX-/RS485-/
RS232 TX
Pin 4
RS422 RX+/RS232 RX
Pin 5
RS422 RX-
Pin 6
TTL RXD
Pin 7
TTL TXD
Pin 8
G TALLY DRY
Pin 9
G TALLY WET A
Pin 10
G TALLY WET B
Pin 11
GND
Pin 12
GND
Pin 13
R TALLY DRY
Pin 14
R TALLY WET A
Pin 15
R TALLY WET B
Table 4-7 Return Data Pinout
4.8. Ethernet Transport Stream & Control Connectors
Figure 4-9 Ethernet LAN/WAN Connectors
