6.2.5.1. Modulation
The Modulation accordion panel details the active modulation settings.

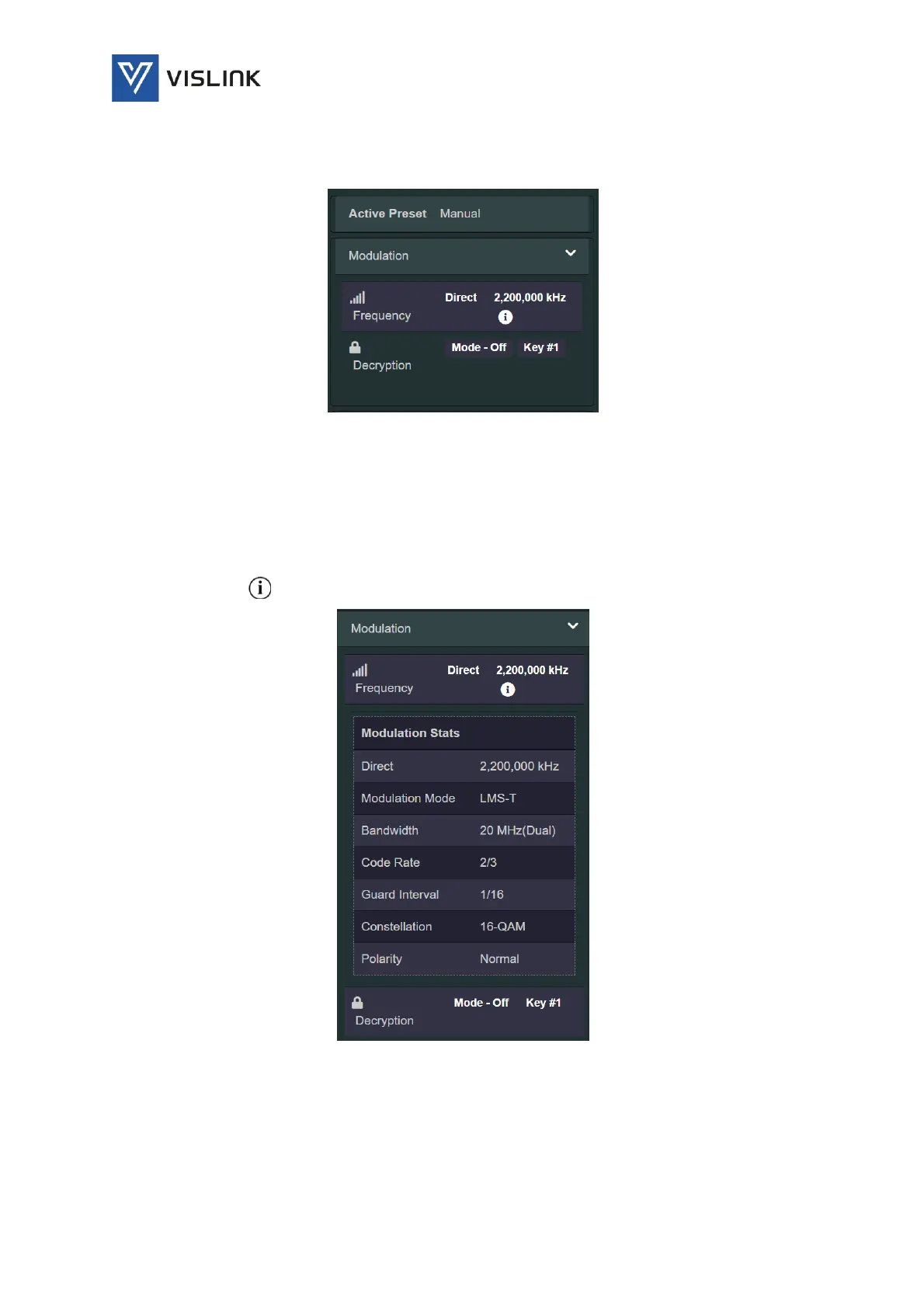

Figure 6-16 Status>Modulation
The Modulation panel displays the following settings:
Frequency – displays the mode of frequency modulation, either Direct (manual
set frequency) or Channel Plan (preset frequencies allocated a channel number),
and the frequency of the frequency modulation scheme.
Encryption/Decryption – display On/Off status and the Key number being used.
Clicking displays further information about the modulation being used.
Figure 6-17 Status>Modulation – More Information
