6. Web GUI Screens
6.1. Overview
The Quantum Receiver is designed to be configured and monitored remotely by
the web-based Graphical User Interface (GUI). This section describes, in
sequence, all the menus and screens for controlling the unit.
For details of the web-based GUI for configuring and monitoring locally using
the front panel touch-screen display, see
Section 5 Front Panel Display
.
The main components of the web GUI display are shown below.

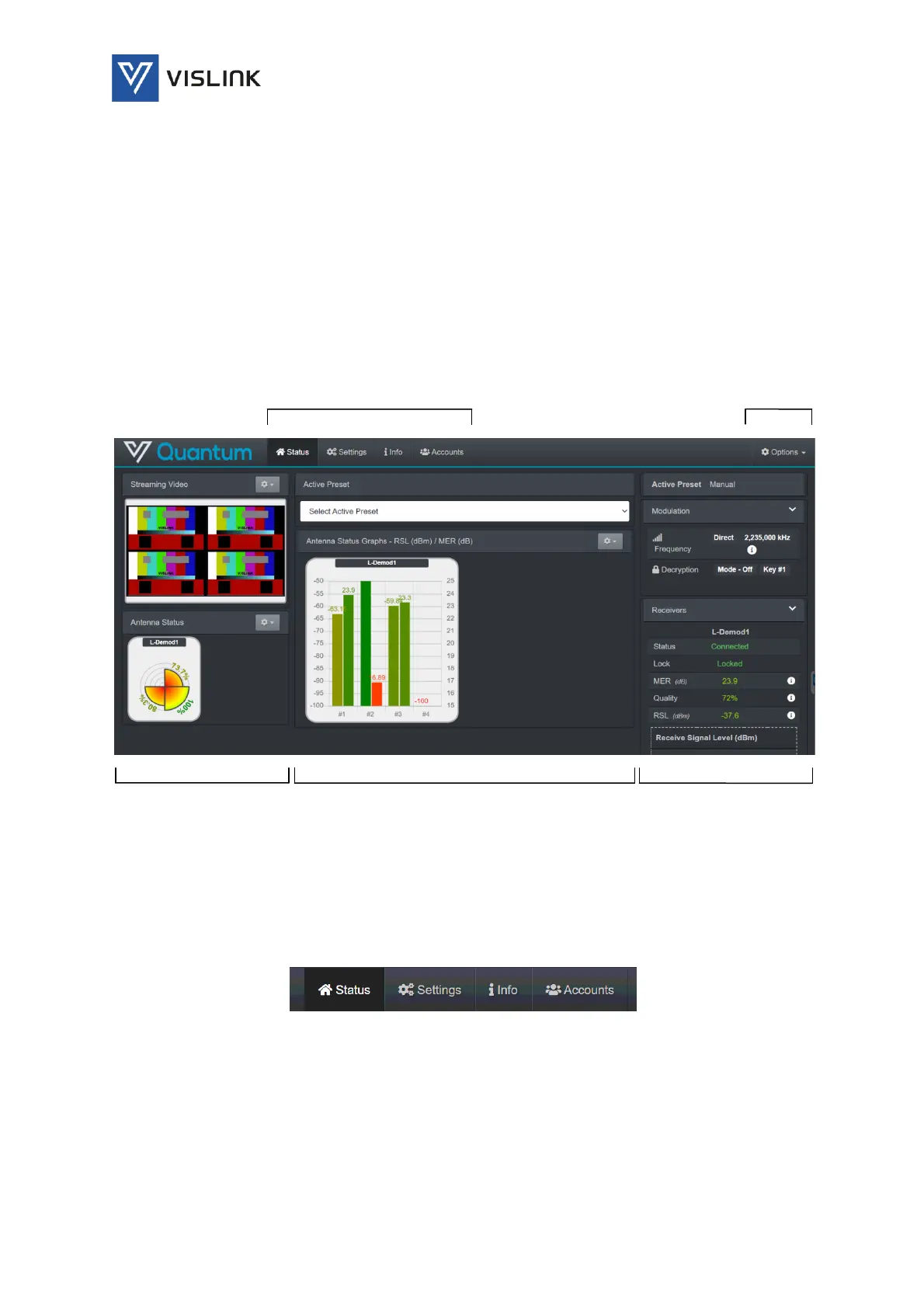

Figure 6-1 Web GUI Overview
6.1.1. Menus
By selecting each of the main menus, the central panel will display further
relevant detail, while the sidebars will continue to display the selected options.
Figure 6-2 Main Menus
Four main menus are available:
Status – enables selection of status information to be displayed in the left- and
right-hand sidebars (see
Section 6.2
).
Settings – enables selection and display of detailed settings for RF, Decoder,
Stream, Presets, Network, Global and Admin functions (see
Section 6.3
).
Info – enables selection and display of unit and license details (see
Section 6.4
).
Main Menus
Detail displayed in Central Panel
Central Panel
Displays the selected main menu detail
Right-hand Sidebar
Displays selected Active
Preset
Left-hand Sidebar
Displays selected Streaming
Video and Antenna Status
