Quantum Receiver User Manual
Front Panel Display
Issue No: A Page: 26
Ref: ?-Insert_Document_Part_No._Here-? Copyright © 2021 Vislink is a Vislink Technologies Inc. companies
The front panel touch-screen display enables local configuring and monitoring
of the receiver. This section provides an overview of the menus and screens for
controlling the unit. These are the same settings and parameters that can also
be configured remotely by the web GUI. For details of these settings and
parameters, see
Section
6 Web GUI Screens
.
5.2. Home
Touching the Home button displays the status and quality (in %) of the RF
inputs as a colored bar. On the extreme right-hand-side of the display the
associated mode, frequency, bandwidth, constellation and type are displayed.
Settings cannot be edited from this screen; to edit use the Setup screen.

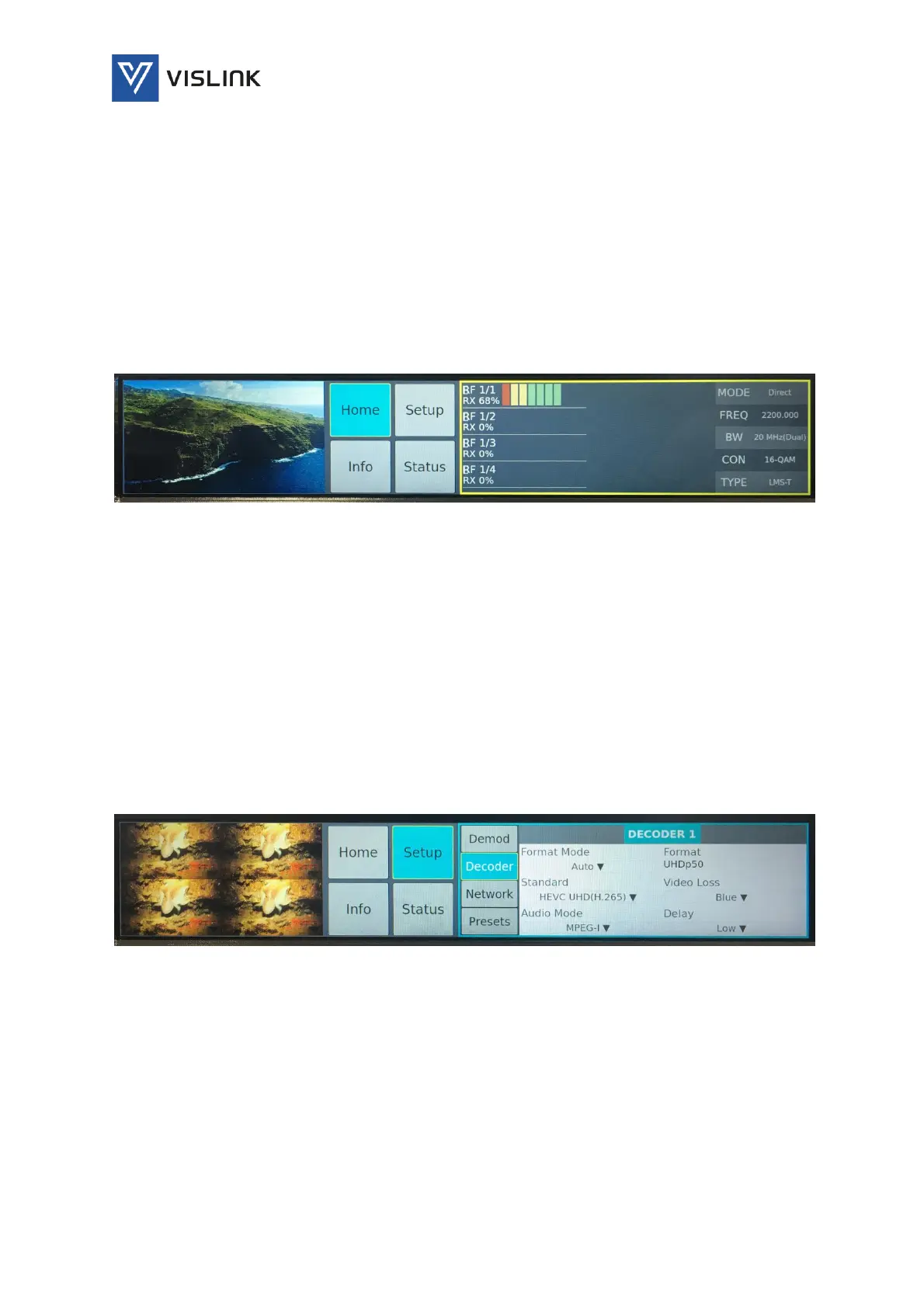

Figure 5-3 Front Panel Home Screen
5.3. Setup
Touching the Setup button displays detailed settings on the right-hand-side of
the display:
Demod
Rx
Decoder
Streams
Network
Analog
Touch or use the rotary control knob to select the relevant button and navigate
and modify the settings.
Figure 5-4 Front Panel Setup Screen
5.4. Info
Touching the Info button displays the settings for the receiver on the right-
hand-side of the display. Settings cannot be edited from this screen.
To Next Page
