13. Apply blue thread locker on caliper bolts before installing. TORQUE:
16ft-lb (25Nm)
NOTE: make sure threads are free of dust/debris before installation.
Clean with a dry cloth if needed.
Rear Wheel
Removing the Rear Wheel
1. Raise the rear wheel off the ground by placing a work stand or
equivalent under the EVO.

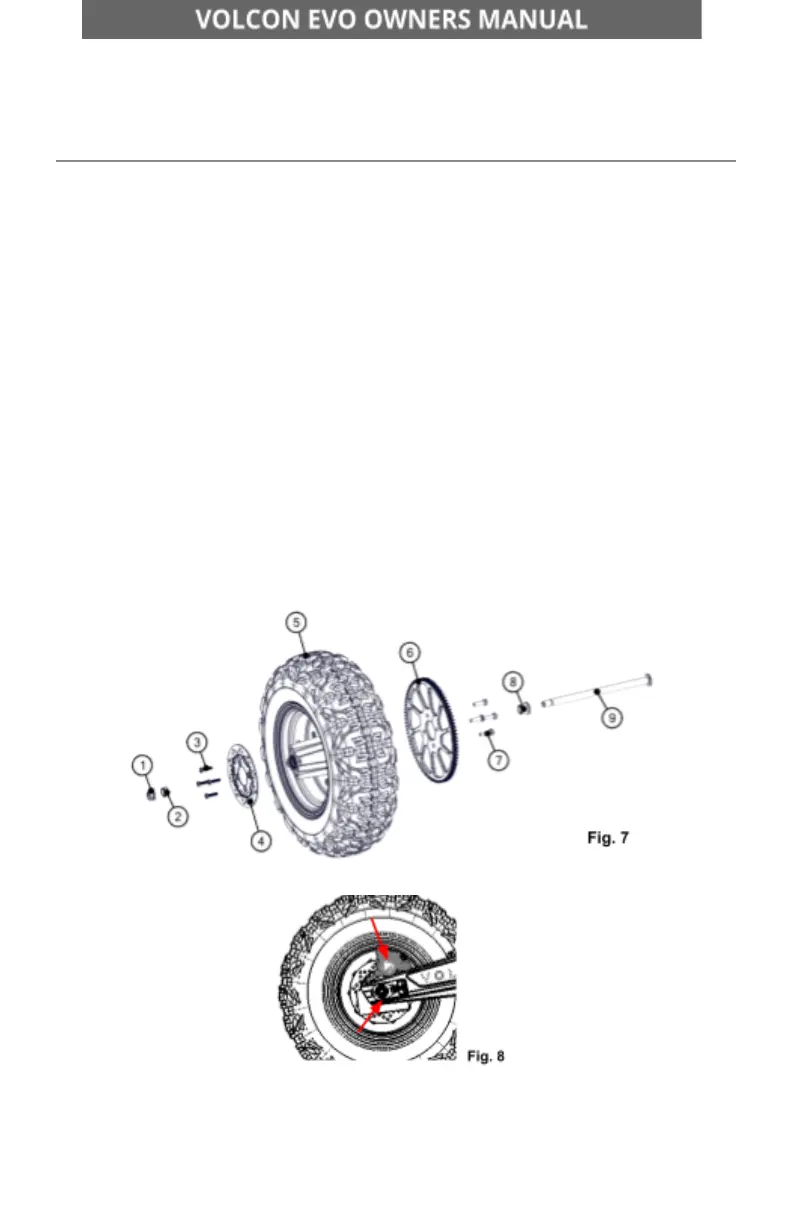

2. Loosen and remove the axle nut. [Fig. 7, item 1]
3. Push the rear wheel forward to remove the belt drive from the
drive sprocket. [Fig. 7, item 6]
4. Remove the axle. [Fig. 7, item 9]
5. Remove the rear wheel [Fig. 7, item 5] and rear brake caliper
assembly. [Fig. 8]
