Closed Circuit Diver – No Decompression Screen

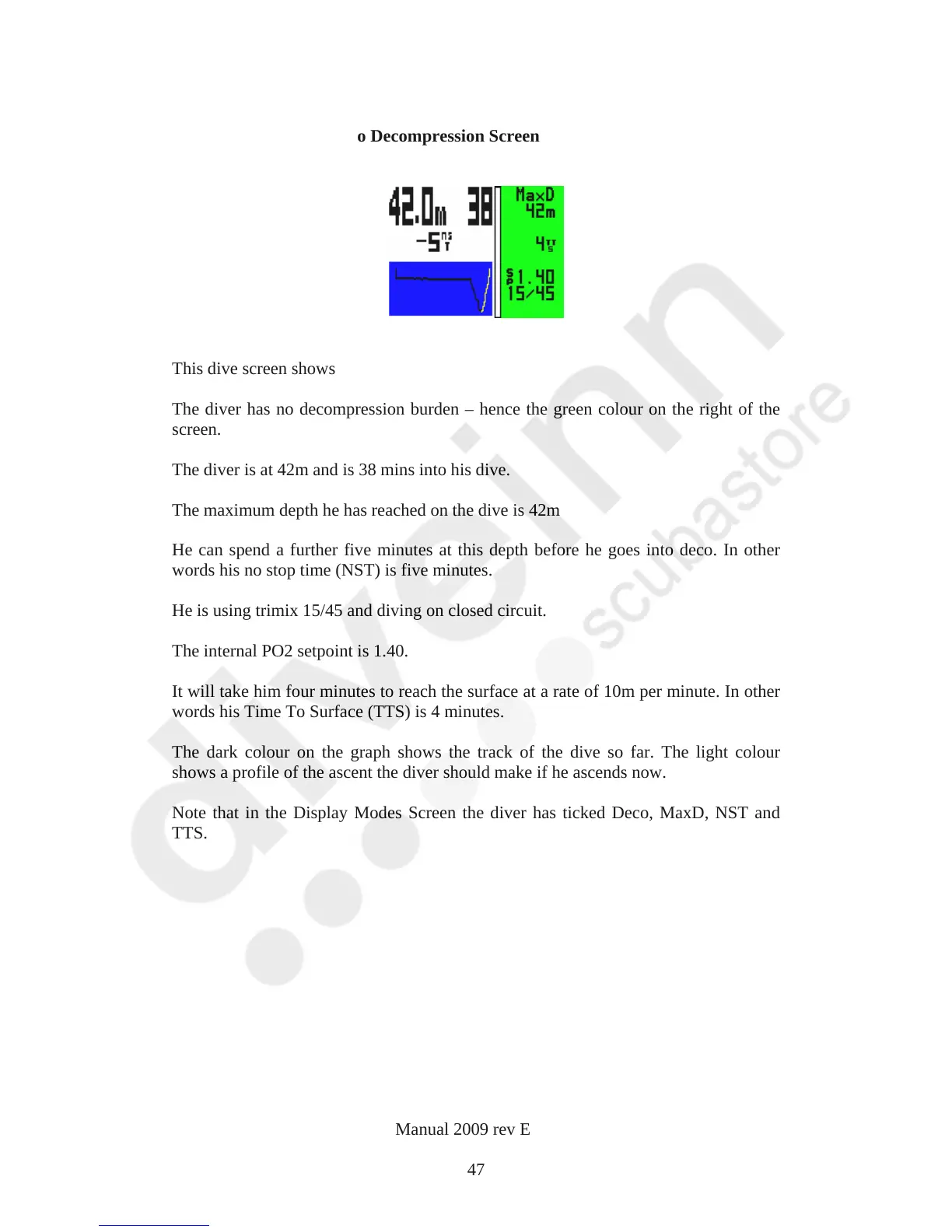

This dive screen shows
The diver has no decompression burden – hence the green colour on the right of the
screen.
The diver is at 42m and is 38 mins into his dive.
The maximum depth he has reached on the dive is 42m
He can spend a further five minutes at this depth before he goes into deco. In other
words his no stop time (NST) is five minutes.
He is using trimix 15/45 and diving on closed circuit.
The internal PO2 setpoint is 1.40.
It will take him four minutes to reach the surface at a rate of 10m per minute. In other
words his Time To Surface (TTS) is 4 minutes.
The dark colour on the graph shows the track of the dive so far. The light colour
shows a profile of the ascent the diver should make if he ascends now.
Note that in the Display Modes Screen the diver has ticked Deco, MaxD, NST and
TTS.
VR Dive Computer Operations Manual 2009 rev E 28/01/2009
