Maintenance
Replacing the filter
• Replace filter A as follows:
☞Stop the engine
☞Remove the key and carry it with you
☞Let the engine cool down
☞Open the engine cover
☞Remove dirt and dust from the air filter and the area around the air filter
☞Fold both bow clips D on lower housing section E to the outside
☞Remove lower housing section E
☞Unscrew wing nut F
☞Carefully remove filter B with slightly turning movements
☞Ensure that all dirt (dust) inside the air filter housing has been removed
☞Clean the parts with a clean lint-free cloth, do not use compressed air
☞Check the air filter cartridges for damage. Use only intact and clean filters
☞Carefully insert the new filter B in the air filter housing
☞Position lower housing section E (ensure that it is properly seated)
☞Close both bow clips D

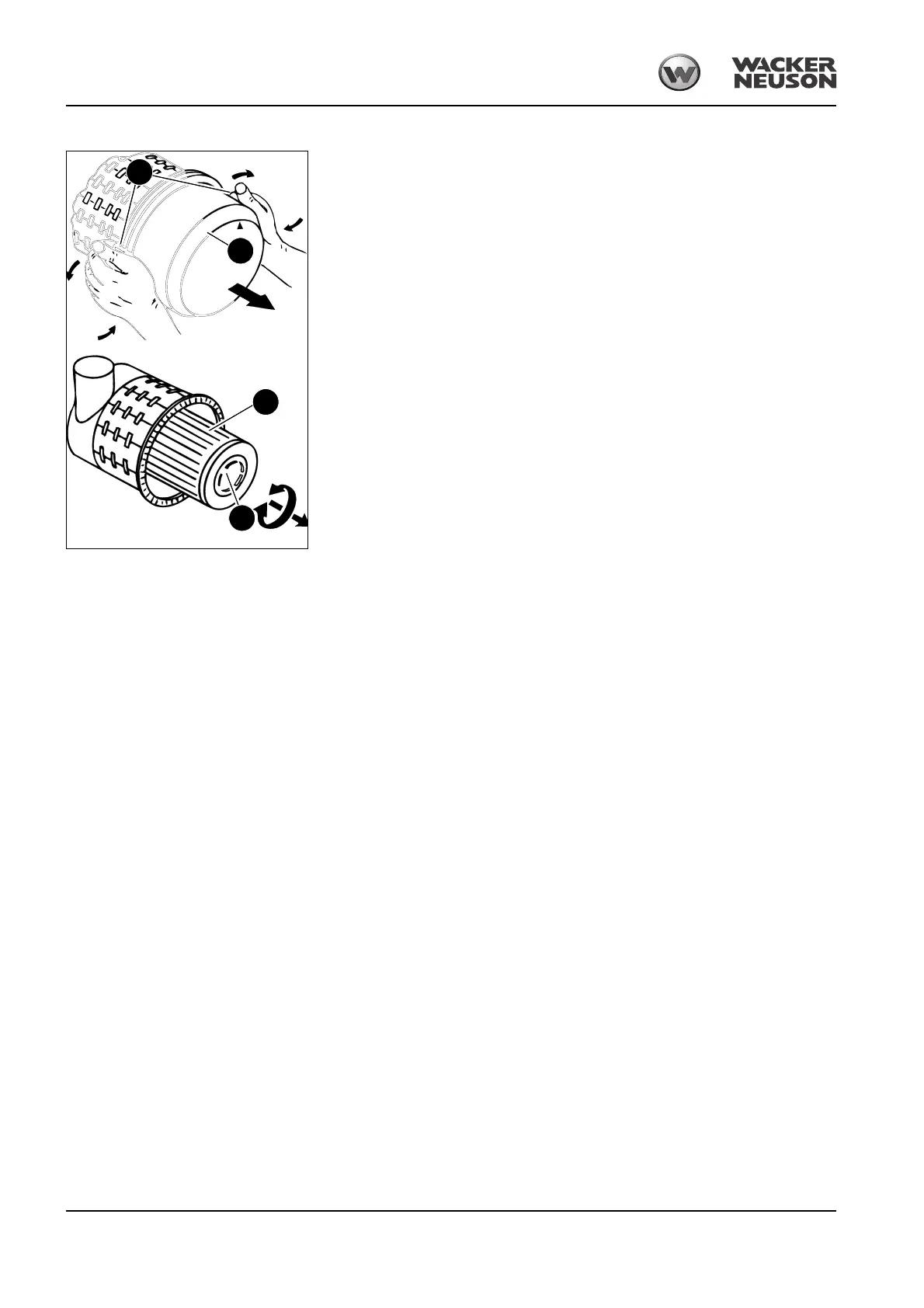

Fig. 85: Removing the lower housing section
Fig. 86: Removing the filter element
D
E
B
F
