BA 1001/1501/2001 us – Edition 3.3 * 12001b520.fm 5-21
Maintenance
Checking the hydraulic oil level
Do not add oil if the oil level is above the FULL mark, otherwise the hydraulic
system can be damaged and oil can escape.
☞Check the hydraulic oil level each time the machine is put into operation or
once a day.
☞Proceed as follows:
• Park the machine on level ground
• Retract all hydraulic cylinders
☞Fully tilt in the skip
• Stop the engine
• Sight glass A is under the engine cover behind the hydraulic oil reservoir
• Check the oil level on sight glass A
• The oil level must be at the FULL level
• A gage element in sight glass A indicates the oil level
If the oil level is lower
• Add hydraulic oil
The oil level varies according to the machine’s operating temperature:
Measure the oil level of the hydraulic system only after the machine reaches its
operating temperature.
1

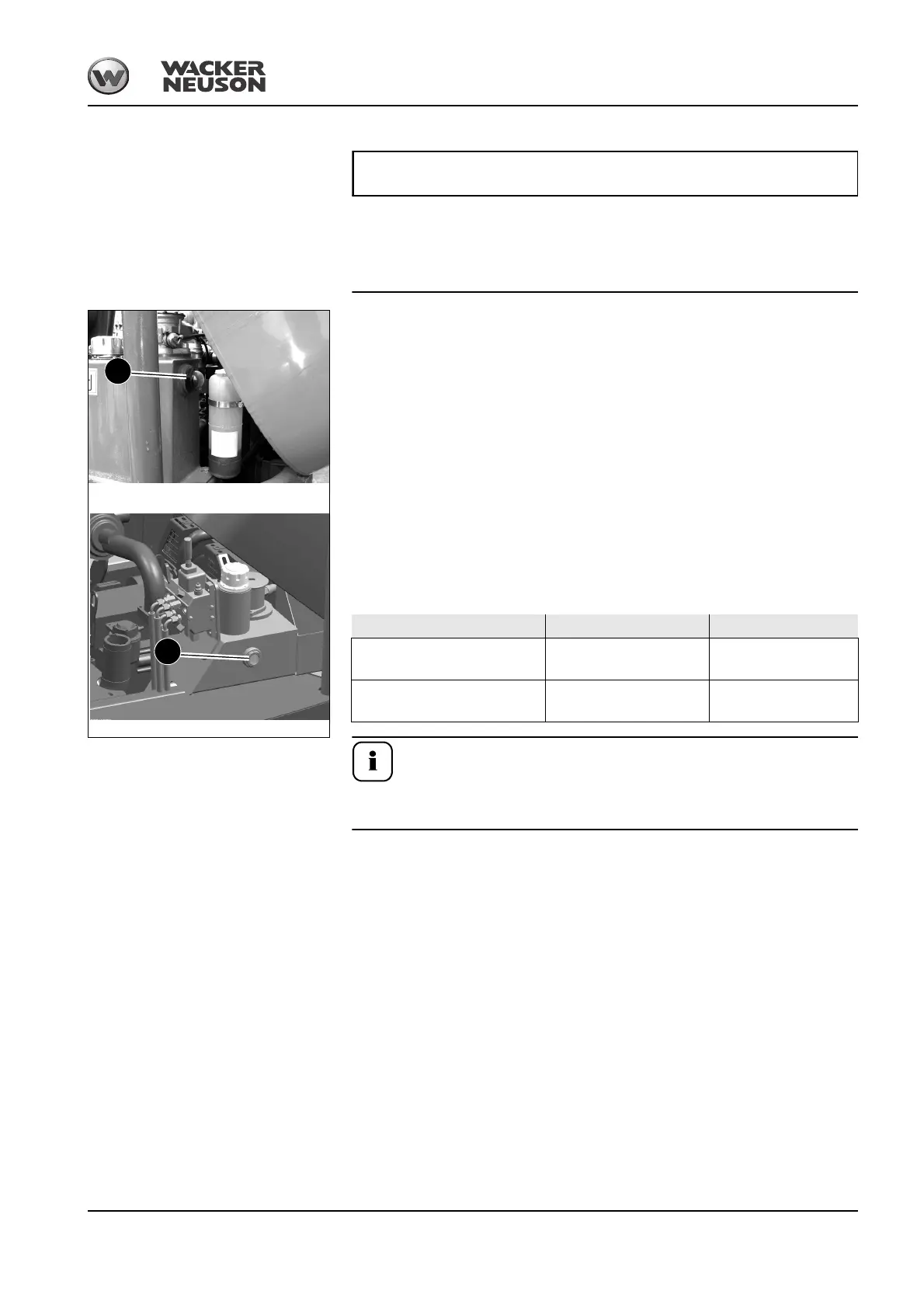

Fig. 97: Oil level indicator on the hydraulic oil reservoir
1001/1501
A
A
Fig. 97: Oil level indicator on the hydraulic oil reservoir 2001
Machine condition Temperature Oil level
• Before putting into operation
Between 10 and 30 °C
(between 50 and 86 °F)
LOW mark
• Normal operation
Between 50 and 90 °C
(between 122 and 194 °F)
FULL mark
