BA 1001/1501/2001 us – Edition 3.3 * 12001b330.fm 3-29
Operation
Unfastening the seat belt:
☞Unfasten seat belt A as follows:
• Hold the seat belt
• Press red button D on buckle C
➥Latch B is released from buckle C by spring pressure
• Slowly return the seat belt to the retractor
Engine cover
Opening:
☞Stop the machine. Stop the engine.
☞Let the engine cool down
☞Press buckle A of the engine cover downward and pull shackle C to the front
☞Pull the engine cover up with handle B
Closing:
☞Press down the engine cover
☞Press buckle A forward and hitch shackle C into the hook at the same time
☞Press lock A to the rear
Locking and unlocking:
The engine cover can be locked in eyelet D with an external lock
Do not lock the engine cover during machine operation since the emergency
switch is located under the engine cover.

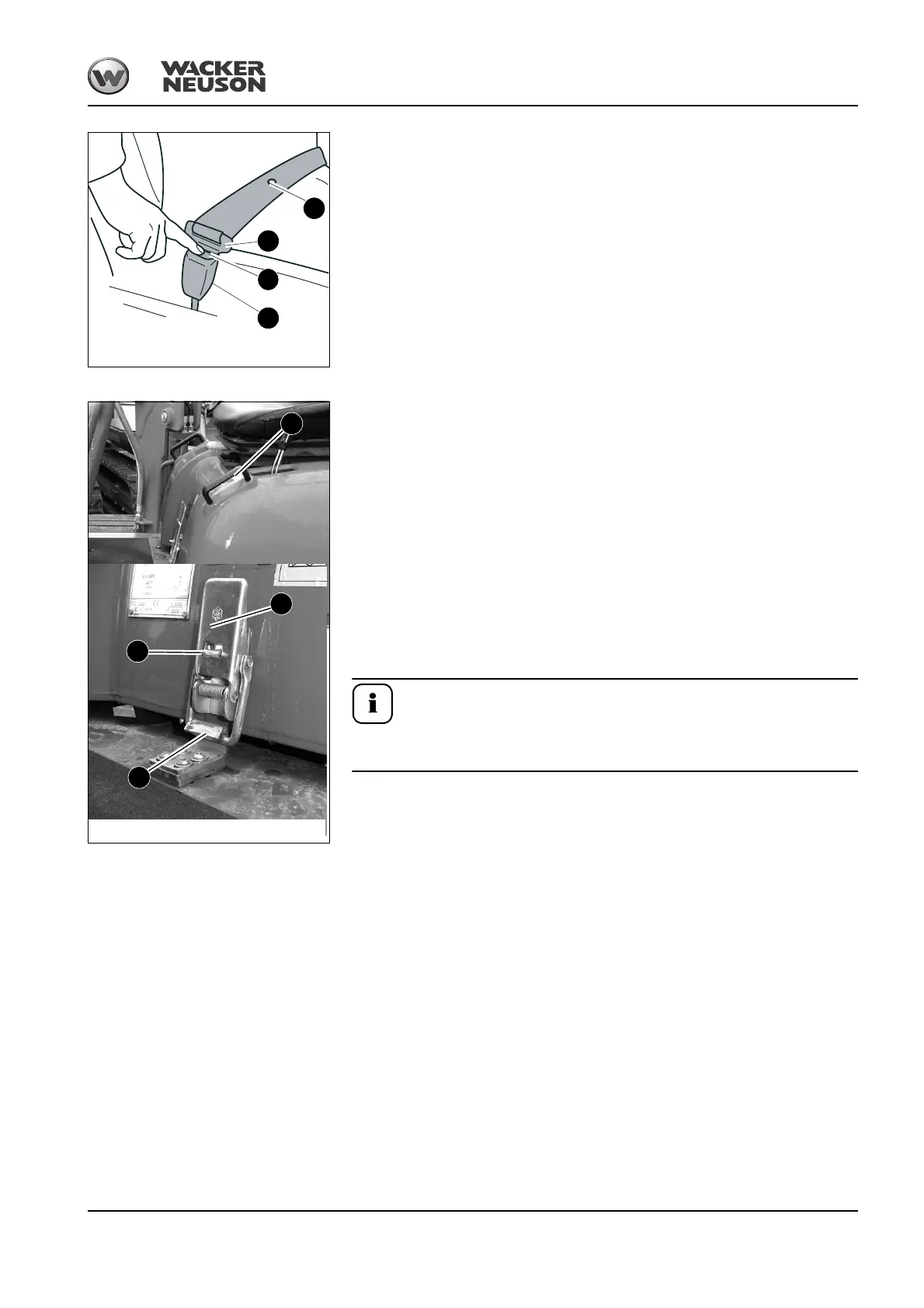

Fig. 47: Unfastening the seat belt
A
C
B
D
Fig. 48: Engine cover lock
A
D
C
B
