Swivel skip and loader unit operation (2001SLE)
Switch position 1: loader unit operation
Switch position 2: skip operation
Switch position 2:
Switch position 1:
Switch position 1:

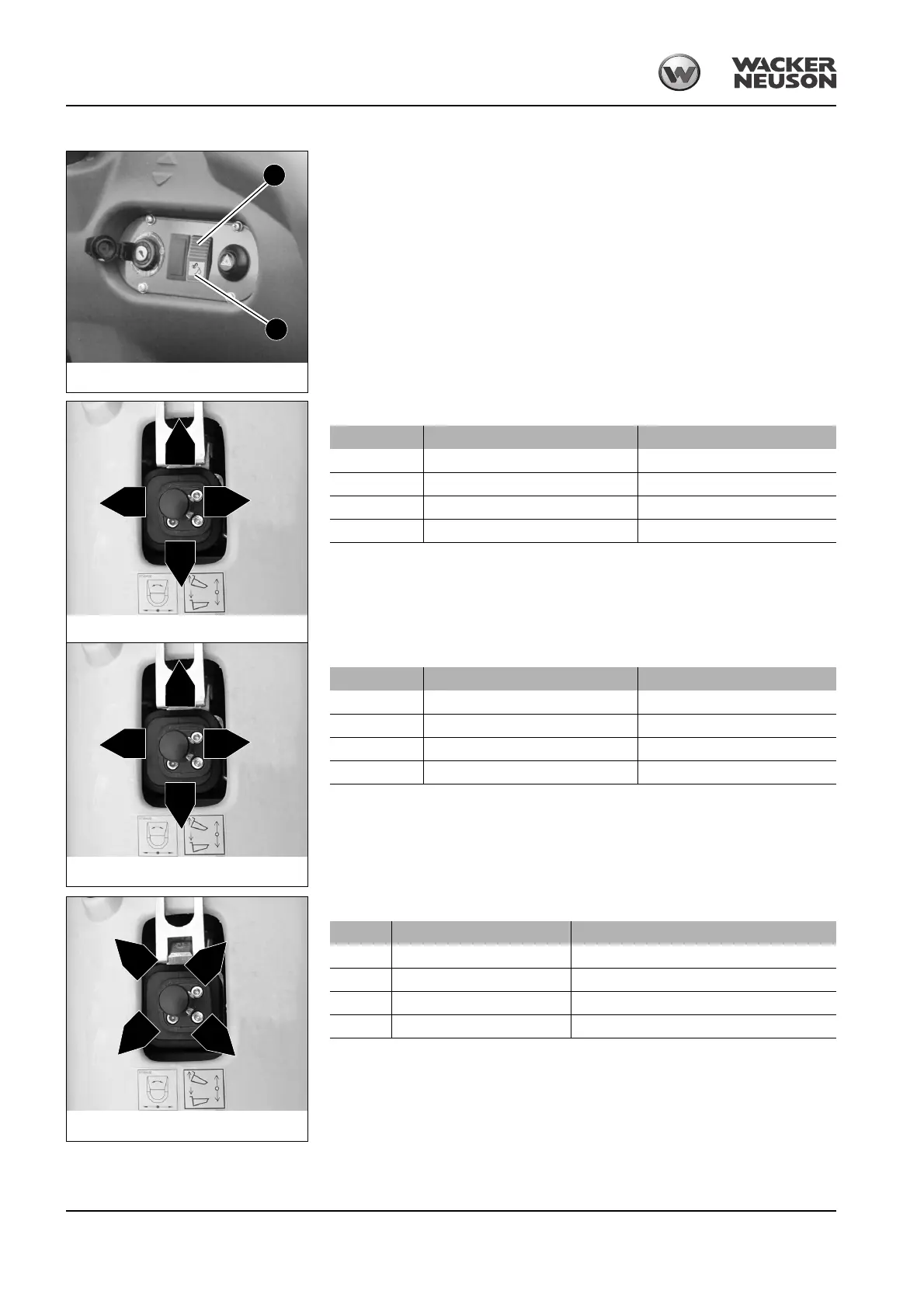

Fig. 52: Switch position SLE (2001)
1
2
Fig. 53: Swivel skip operation (2001)
A
B
D
C
Position
Lever Function
A
Lever forward Tilts out the skip
B
Lever to the rear Lowers the skip
C
Lever to the left Skip is rotated to the left
D
Lever to the right Skip is rotated to the right
Fig. 54: Loader unit operation (2001)
E
F
H
G
Position
Lever Function
E
Lever forward Lowers the lift frame
F
Lever to the rear Raises the lift frame
G
Lever to the left Tilts in the bucket
H
Lever to the right Tilts out the bucket
Fig. 55: Loader unit operation (2001)
I
J
L
K
Position
Lever Function
I
Lever to the left and forward Lowers the lift frame and tilts in the bucket
J
Lever to the right and rear Raises the lift frame and tilts out the bucket
K
Lever to the left and rear Raises the lift frame and tilts in the bucket
L
Lever to the right and front Lowers the lift frame and tilts out the bucket
