3-6 BA 1001/1501/2001 us – Edition 3.3 * * 12001b320.fm
Operation

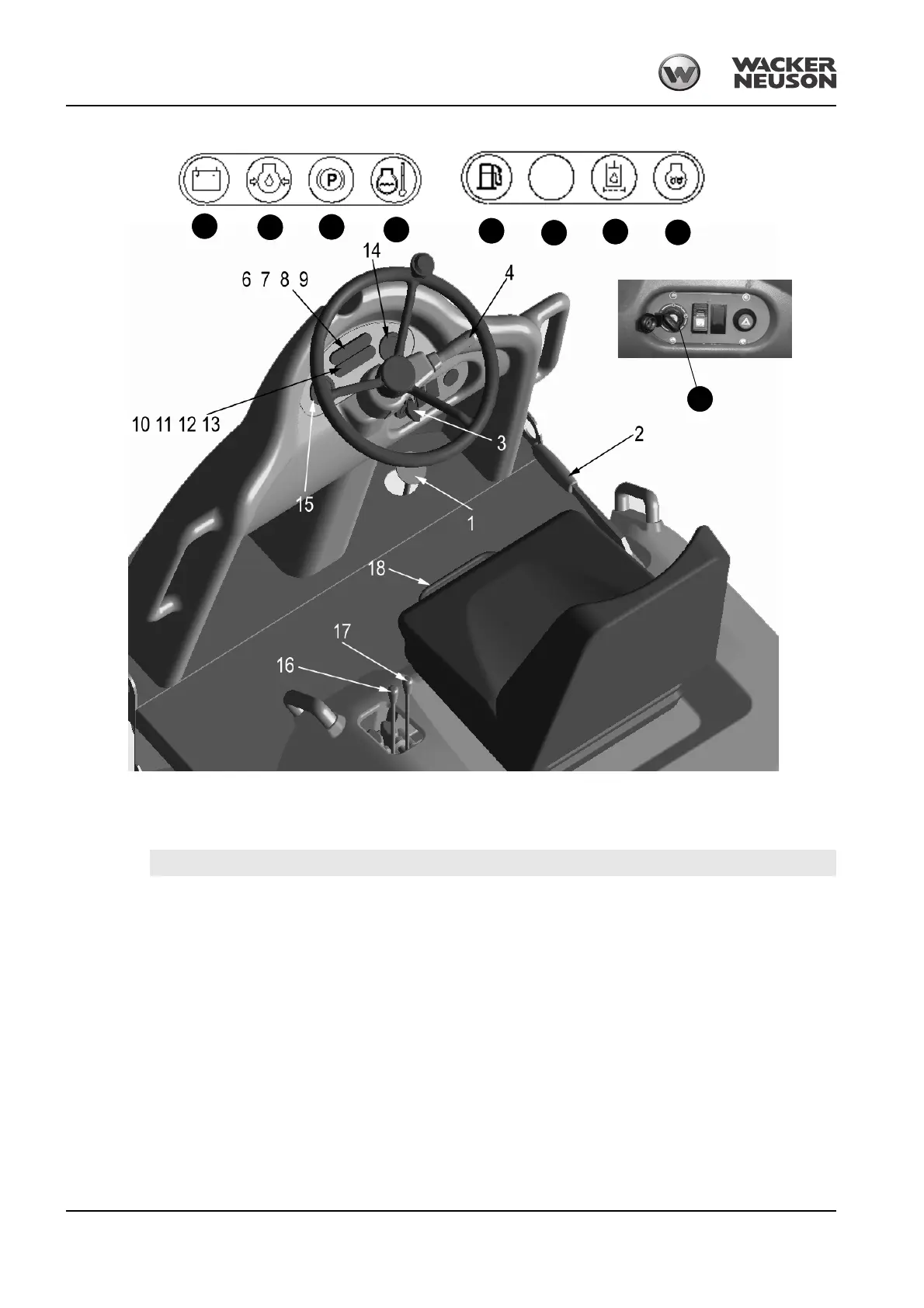

3.3 1001/1501/1501S operating equipment up to serial no. AB ...
Driving direction lever
Pos.
Designation
1 Accelerator pedal 14 Hour meter
2 Parking brake 15 Fuel level indicator
3 Preheating start switch 16 Lever “Tilting out/lowering the skip”
4 Travel direction lever 17 Lever “Raising/lowering the skip”
5 Horn 18 Bar for horizontal seat adjustment
6 Alternator charge indicator light
7 Engine oil pressure indicator light
8 Parking brake indicator light
9 Engine temperature indicator light
10 Spare fuel indicator light
11 Not assigned
12 Hydraulic oil filter indicator light
13 Preheating indicator light
